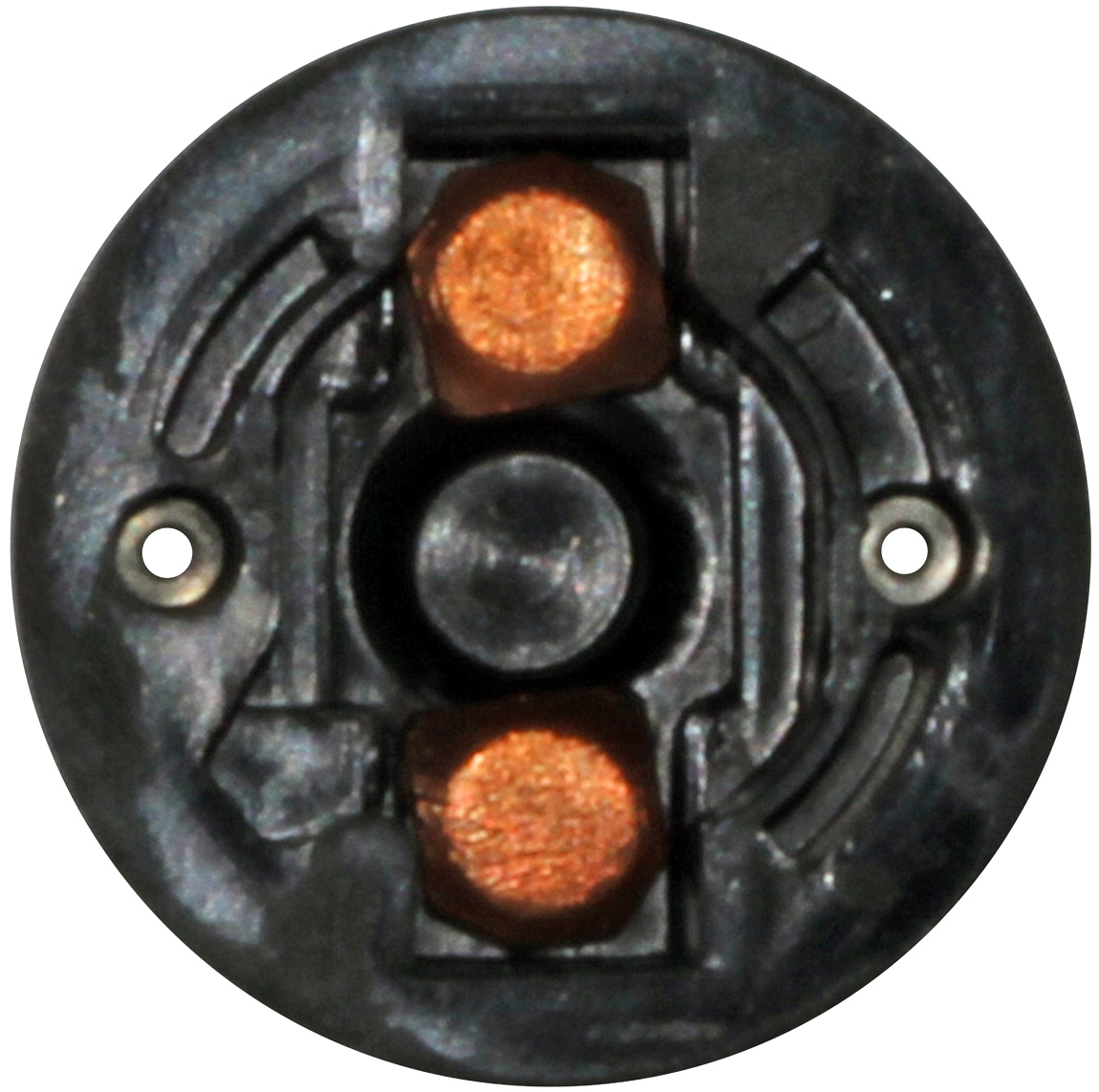

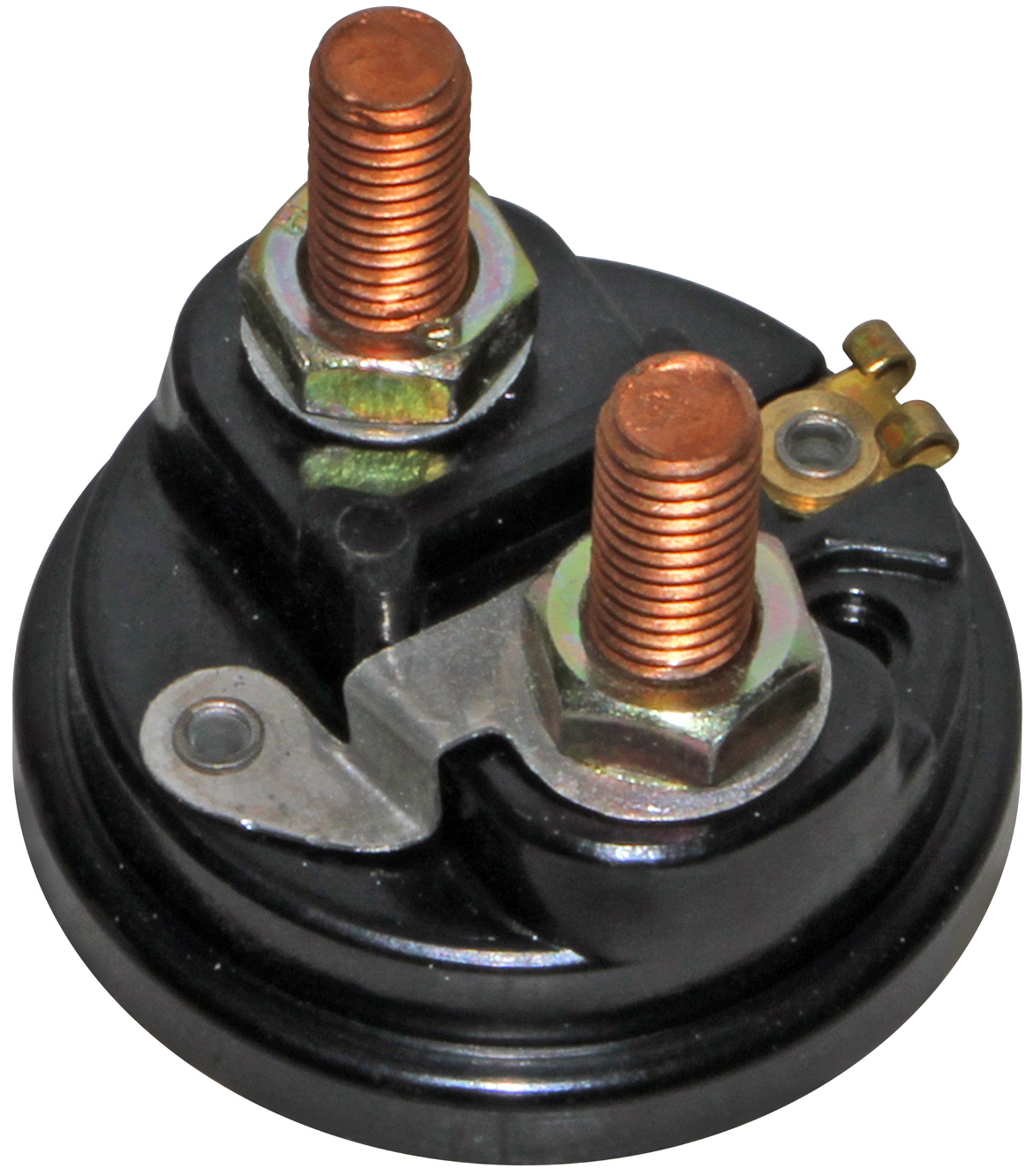

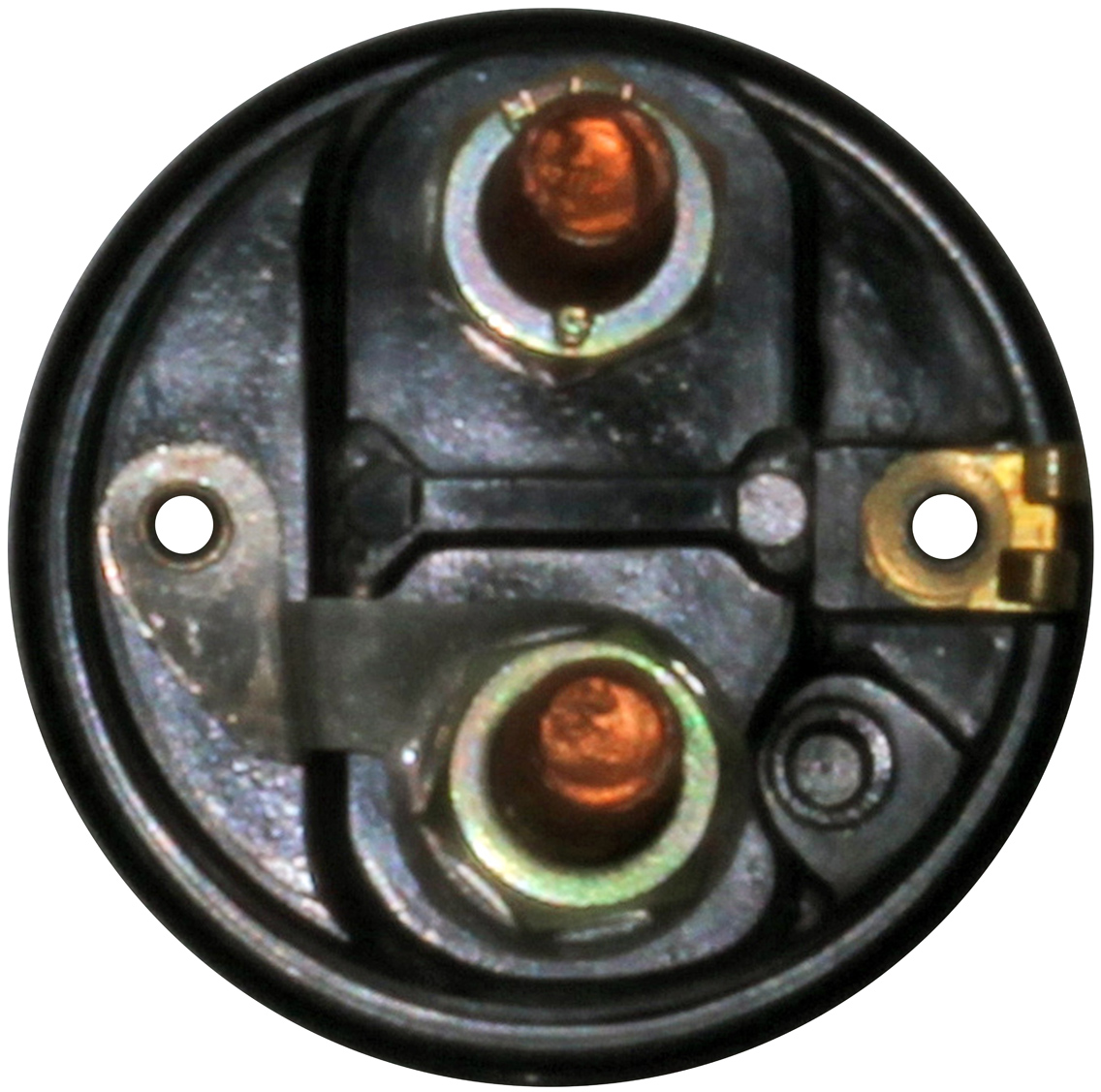

03524 - HITACHI REPLACEMENT STARTER SOLENOID CAP

Product Information:

APPLICATIONS: Caterpillar Lift Trucks, Nissan Hardbody Pickup, Van 2.4L, Maxima, NX1600, Pulsar, Sentra, Nissan Lift Trucks. Hitachi PMGR / OSGR Starters.
STARTER #’S: S114-306, S114-453, S114-454, S114-459, S114-482, S114-482A, S114-482N, S114-482R, S114-527, S114-527A, S114-527C, S114-605, S114-606, S114-607, S114-608, S114-701A.
LESTER #’S: 16992, 16995, 16996, 16997, 17146, 17425, 17454, 18054.
NOTE: Used with 03915 Mobile Contact & 14560 Plug.

Manufacturer: HITACHI

IAT Product Number: 03524

Original Numbers: SERVICING: Hitachi: 2114-87508, 2114-97605; IAT: 02537.

Additional Information: Voltage: 12V, Cap Design: CRIMPED, Contacts Depth: 6.7 mm, Battery Terminal Length: 17.5 mm, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade in Plug w/ Lead, Lead Length: 170 mm.

Related Items: 02537, 03915, 14560
