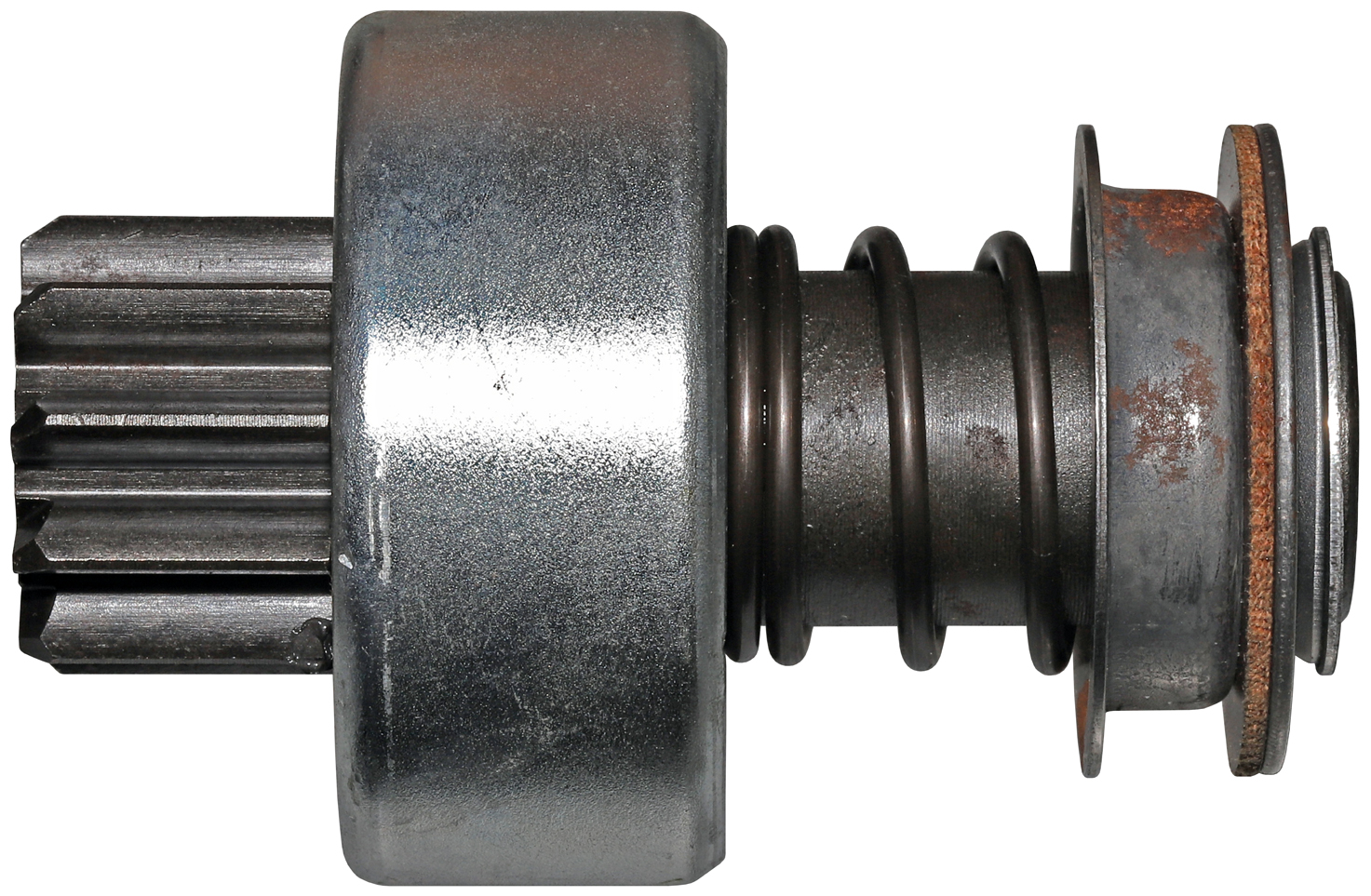

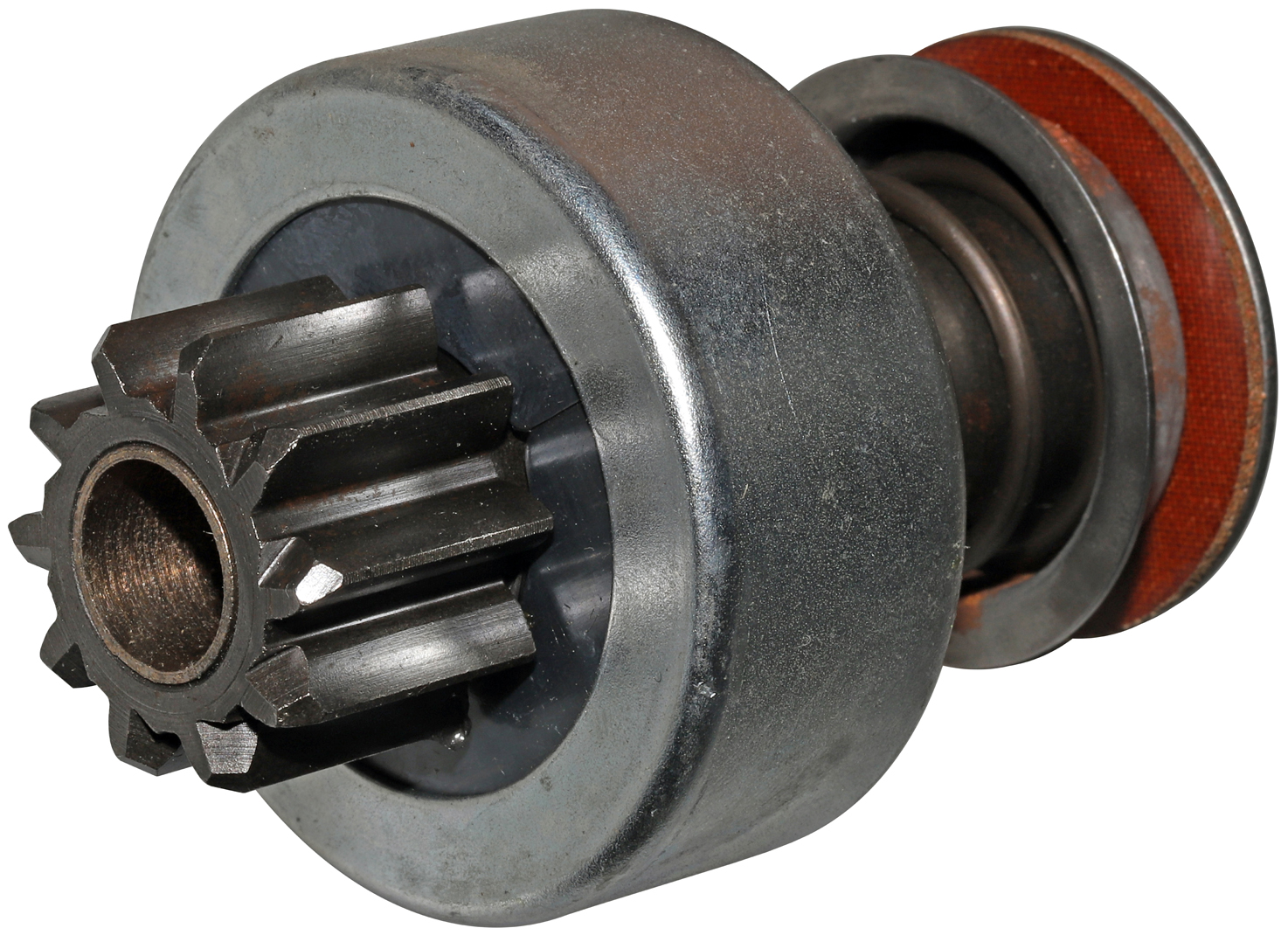

01130 - BOSCH STARTER DRIVE - 10T, 10SPL., CW

Product Information:

APPLICATIONS: Claas Combine, Fiat-Allis Wheel Loader, John Deere combines / Tractors, Mercedes Trucks, Perkins Engines. Bosch 12V / 3.0Kw – 24V / 4.0Kw DD Starters.

STARTER #’S: 0-001-359-016, 0-001-359-086, 0-001-359-090; 9-000-083-057, 9-000-083-071, 9-000-083-076; 9-000-143-114, 9-000-143-115; 9-000-453-071, 9-000-453-074, 9-000-453-075, 9-000-453-076; SR901X, SR927X.

LESTER #’S: 16563, 17309, 18224, 30008.

Manufacturer: BOSCH

IAT Product Number: 01130

Original Numbers:?Bosch: 2-006-209-414, 2-006-209-444, 2-006-209-445, 9-002-453-077; Lucas: TNB408; John Deere: AL25275; Mercedes: 000-151-99-13; Volkswagen: TRA-911-335; Volvo: 11995090; Ghibaudi: 2959; WAI: 54-9128.

Additional Information: Teeth: 10, Rotation: CW, Splines: 10, Length: 91.0 mm, Body OD: 60.0 mm, Gear OD: 32.0 mm, ID: 14.3 mm, Clutch Type: Roller.

Related Items: S16563
