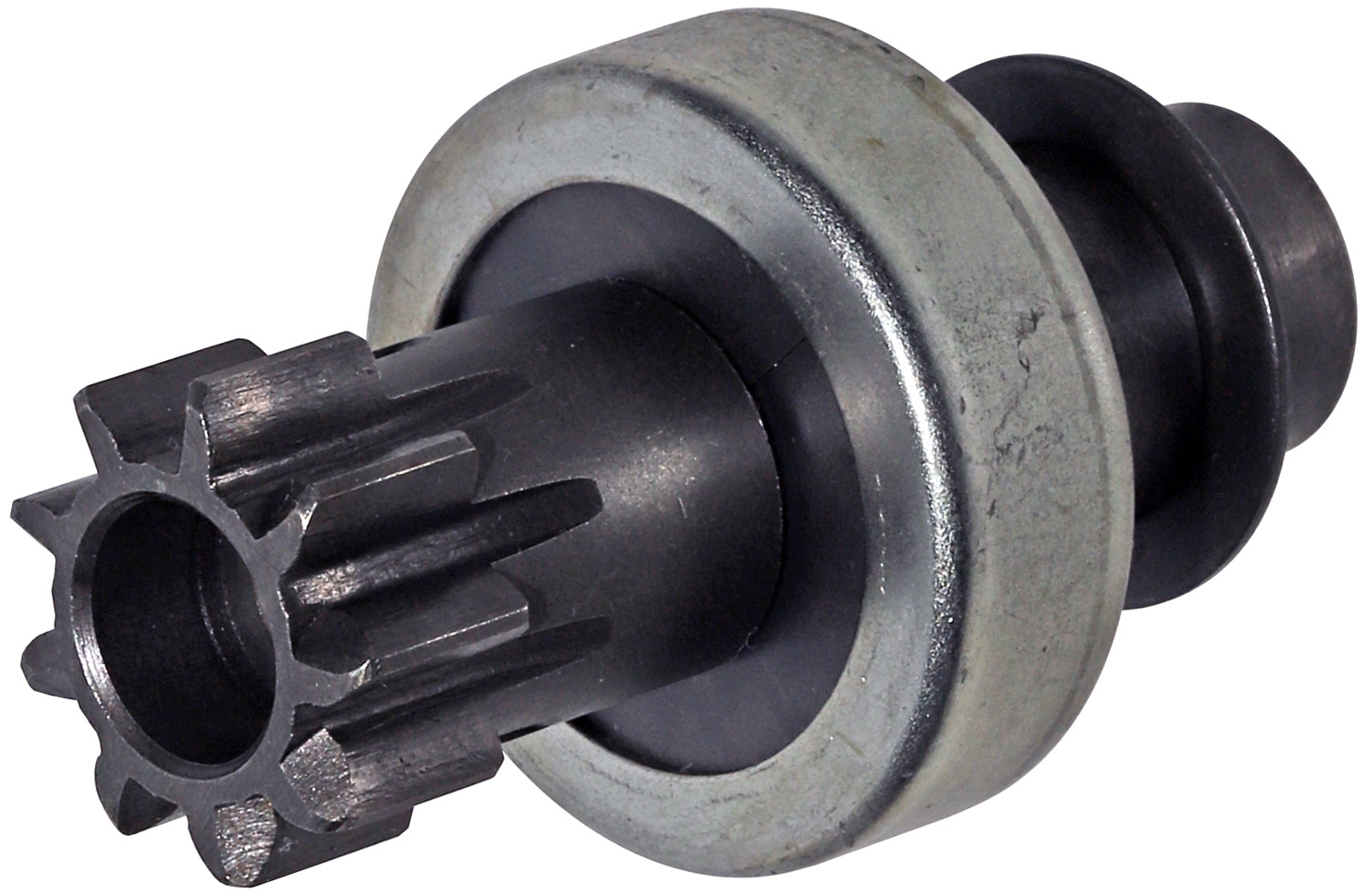

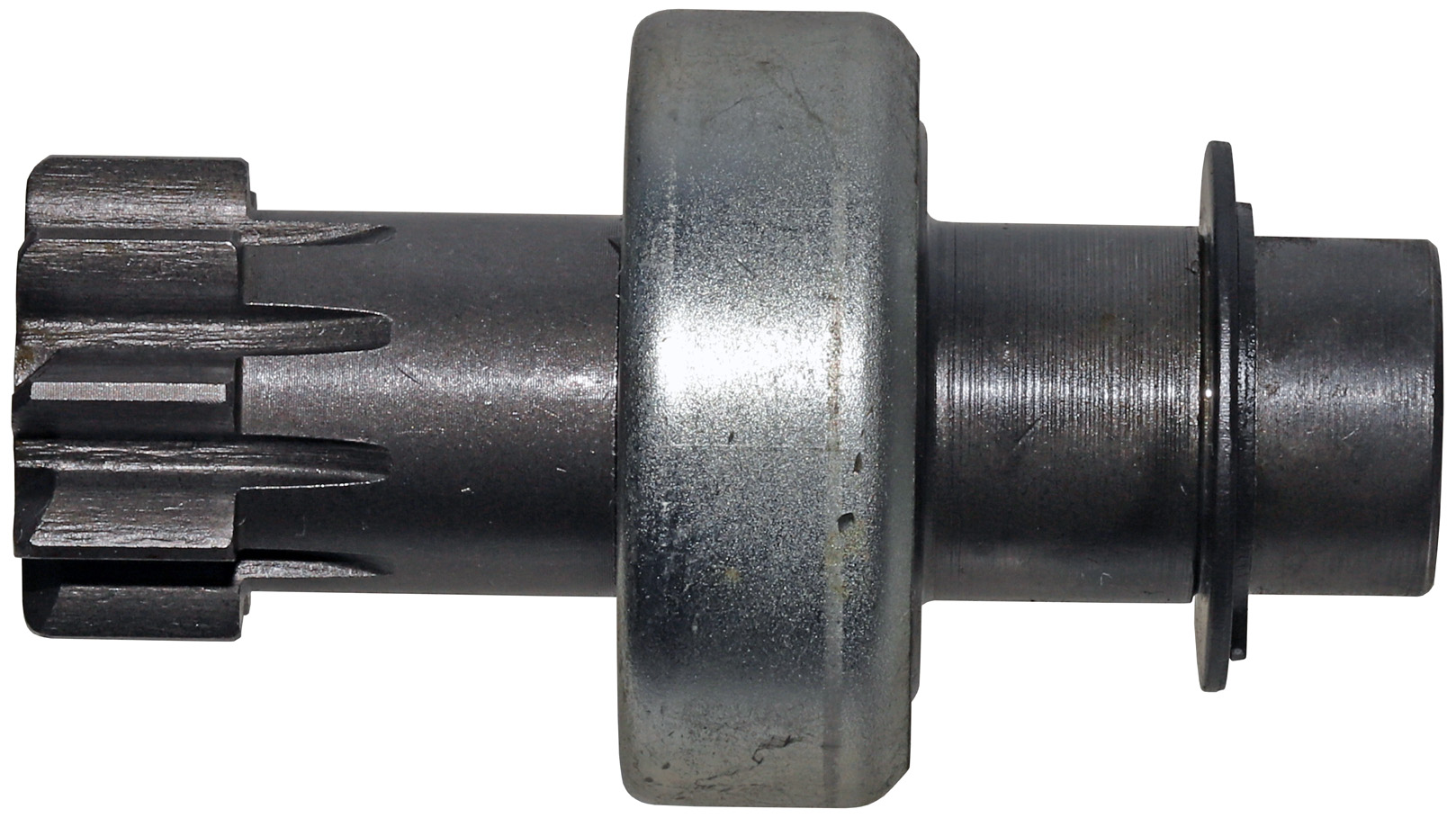

01567 ? DENSO STARTER DRIVE

Product Information:

APPLICATIONS: Ford Tractors, Honda Civic 1.3L / 1.5L / 1.6L, Toyota 1.5L / 1.6L / 1.9L / 2.0L / 2.3L / 2.6L / 3.9L / 4.2L Applications, Jacobsen Lawn Tractor, Kubota Diesel Engines, Tractors, New Holland Tractors, Onan Engine, Toro Mowers, Toyota Lift Trucks, Universal Marine. Denso 0.8-1.0 Kw DD Type Starters.

STARTER #?S: 028000-0430, 028000-1370, 028000-1371, 028000-1372, 028000-1620, 028000-1623, 028000-1940, 028000-1941, 028000-2250, 028000-2260, 028000-2261, 028000-2262, 028000-2263, 028000-2330, 028000-2360, 028000-2361, 028000-2362, 028000-2363, 028000-2364, 028000-2660, 028000-2661, 028000-2662, 028000-2663, 028000-2664, 028000-2665, 028000-2680, 028000-2681, 028000-2682, 028000-2923, 028000-3050, 028000-3051, 028000-3052, 028000-3090, 028000-3100, 028000-3700, 028000-3710, 028000-3711, 028000-3820, 028000-3821, 028000-3822, 028000-3823, 028000-3824, 028000-3825, 028000-3827, 028000-3840, 028000-3841, 028000-3920, 028000-3921, 028000-4330, 028000-4331, 028000-4480, 028000-4640, 028000-5330, 028000-5331, 028000-5332, 028000-5334, 028000-5335, 028000-5336, 028000-6380, 028000-6381, 028000-6382, 028000-6383, 028000-6384, 028000-6385, 028000-6390, 028000-6391, 028000-6393, 028000-6396, 028000-6420, 028000-6421, 028000-6422, 028000-6430, 028000-6490, 028000-6491, 028000-6492, 028000-6493, 028000-6494, 028000-6600, 028000-6720, 028000-6721, 028000-6800, 028000-6802, 028000-6803, 028000-6810, 028000-6811, 028000-6812, 028000-6813, 028000-6820, 028000-6821, 028000-6822, 028000-6823, 028000-7090, 028000-7091, 028000-7092, 028000-7093, 028000-7130, 028000-7131, 028000-7132, 028000-7133, 028000-7210, 028000-7330, 028000-7331, 028000-7332, 028000-7460, 028000-7461, 028000-7462, 028000-7470, 028000-7471, 028000-7472, 028000-7780, 028000-7980, 028000-7981, 028000-8010, 028000-8080, 028000-8160, 028000-8690, 028000-9110, 028000-9111, 028000-9112, 028000-9113, 028000-9570, 028000-9680, 128000-0290, 128000-0670, 128000-1610, 128000-2050, 128000-5230, 128000-6492, 128000-8130, 128000-9540.

LESTER #?S: 16217, 16218, 16220, 16222, 16224, 16230, 16238, 16261, 16499, 16735, 16766, 16832, 16843, 16911, 17278, 17350, 17354, 17364, 18183, 30049, 30511, 30511, 30600.

Manufacturer: DENSO

IAT Product Number: 01567

Original Numbers: Denso: 028300-0660, 028300-0901, 028300-0911, 028300-1950, 028300-1951, 028300-3351; Daihatsu: 28011-15010-000, 28011-41020-000; Kubota: 14278-63041; Toyota: 28011-15010, 28011-41020, 28011-41021, 28011-60040, 28011-60041; Ghibaudi: 2925; Zen: 1.01.0353.0; WAI: 54-8207.

Additional Information: Teeth: 9, Rotation: CW, Splines: 10, Gear OD: 29.7 mm, Body OD: 46.5 mm, ID: 12.5 mm, Length: 82.0 mm, Clutch Type: ROLLER.
