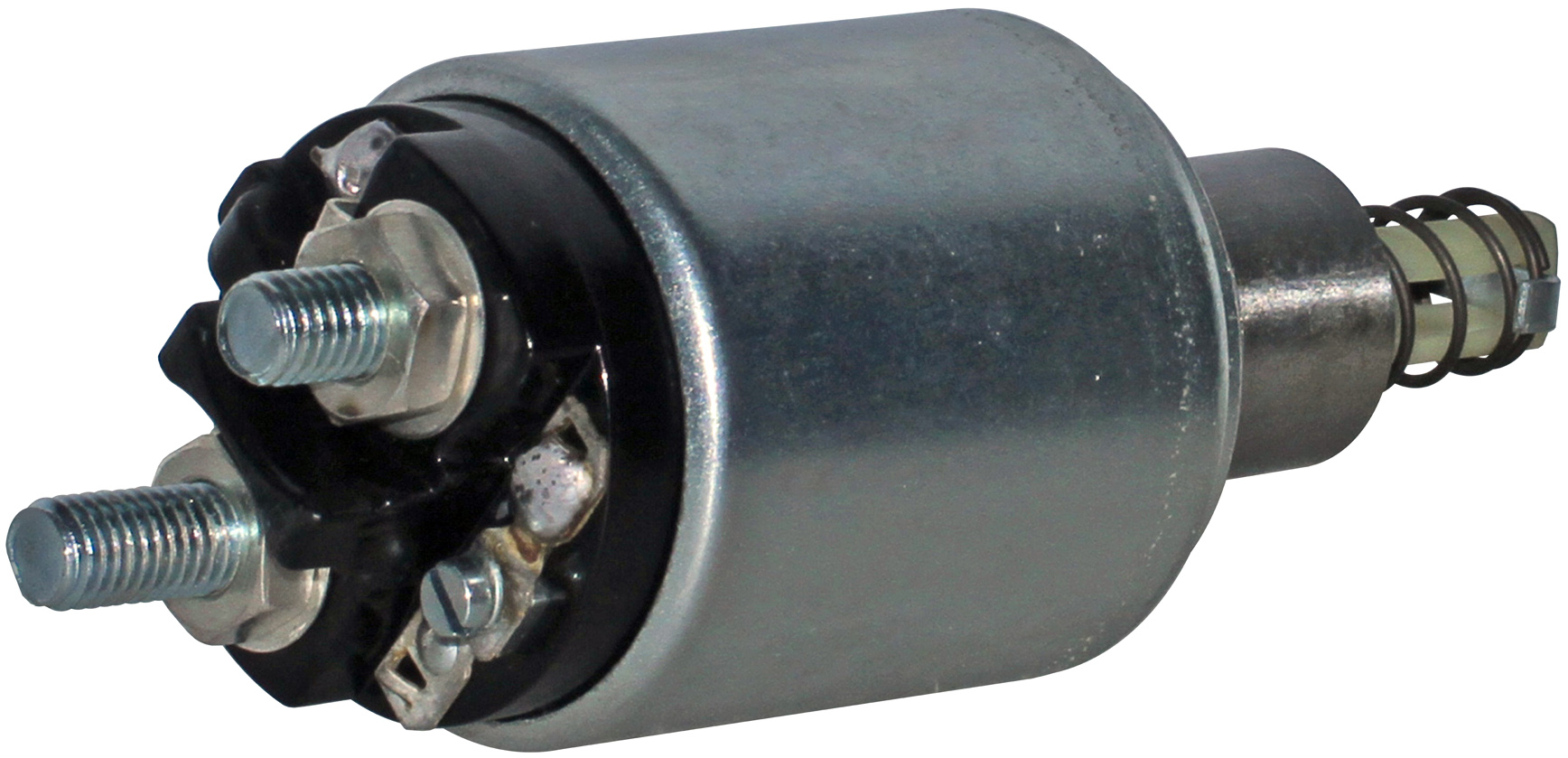

02124 - BOSCH REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Audi 100D – 5000 Diesel, Barko Loader w/ 3056 Caterpillar Engine, Caterpillar Tool Carrier w/ Perkins 3054 Engine, Fiat Diesel, Volvo 240D – 760TD, Volkswagen Diesel. Bosch 2.0-3.0 Kw DD Starters.

STARTER #?S: 0-001-223-501; 0-001-362-069, 0-001-362-070, 0-001-362-073, 0-001-362-077, 0-001-362-078, 0-001-362-083; 0-001-367-076; SR38X, SR61X.

LESTER #?S: 16445, 16949, 17257, 30828.

COMPONENTS: Cap – 03158 M4, Contact – 03907.

Manufacturer: BOSCH

IAT Product Number: 02124

Original Numbers:?Bosch: 0-331-402-030, 0-331-402-033, 0-331-402-039; Fiat: 9936715, 9937474; Lucas: TOB-488, TOB488; Perkins: 28733035; Volvo: 1257688, 1328138; Volkswagen: 069-911-287, 069-911-287A; WAI: 66-9100.

Additional Information: Voltage: 12V, Cap Design: CRIMPED, Mount Type: 3 Hole, Mounting Threads: M5 x 0.8; Plunger Typr: Removable, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade – 6.5 mm, Relay Terminal: Male Spade – 6.5 mm.

Related Items: 03158 M4, 03907
