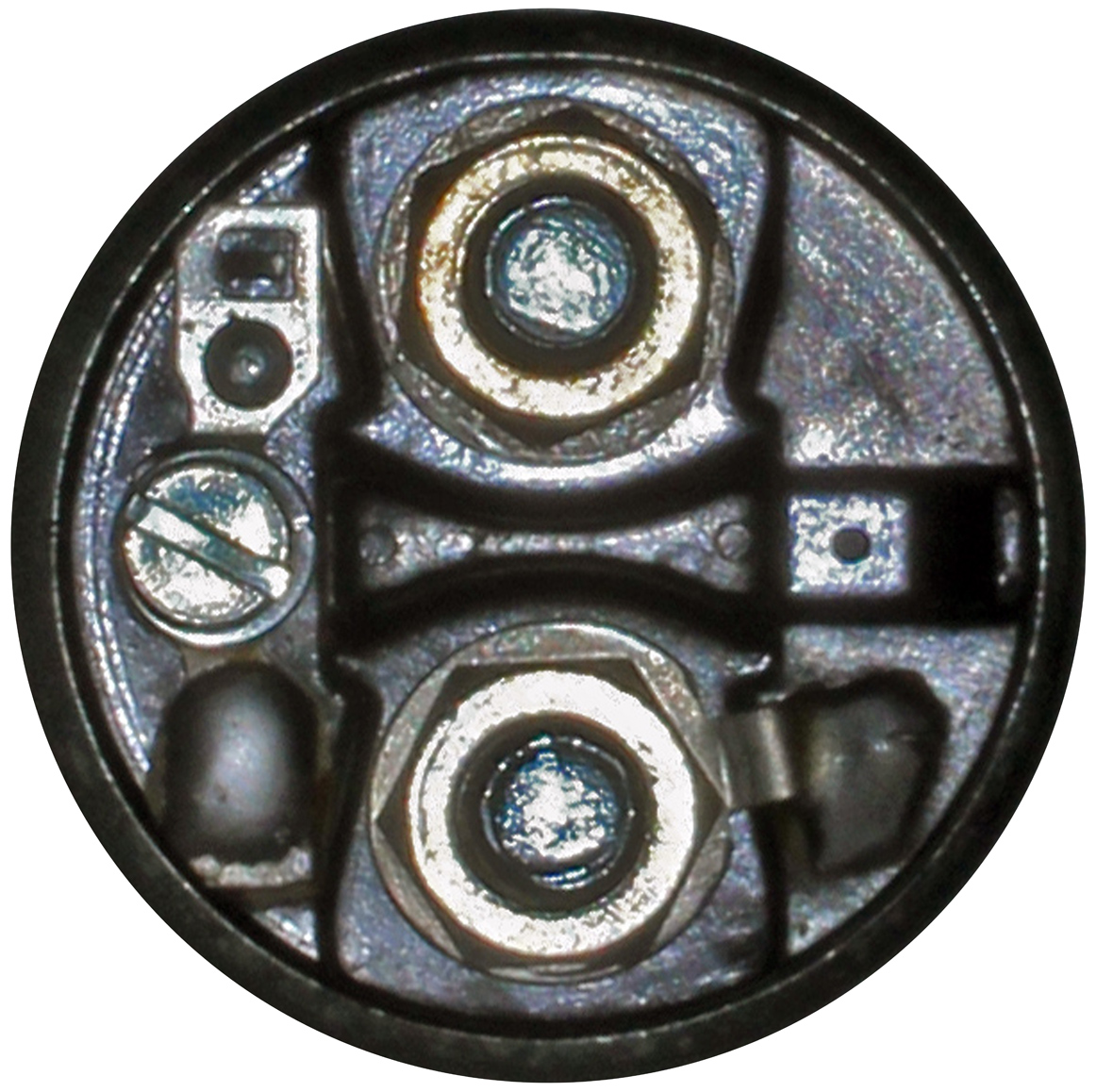

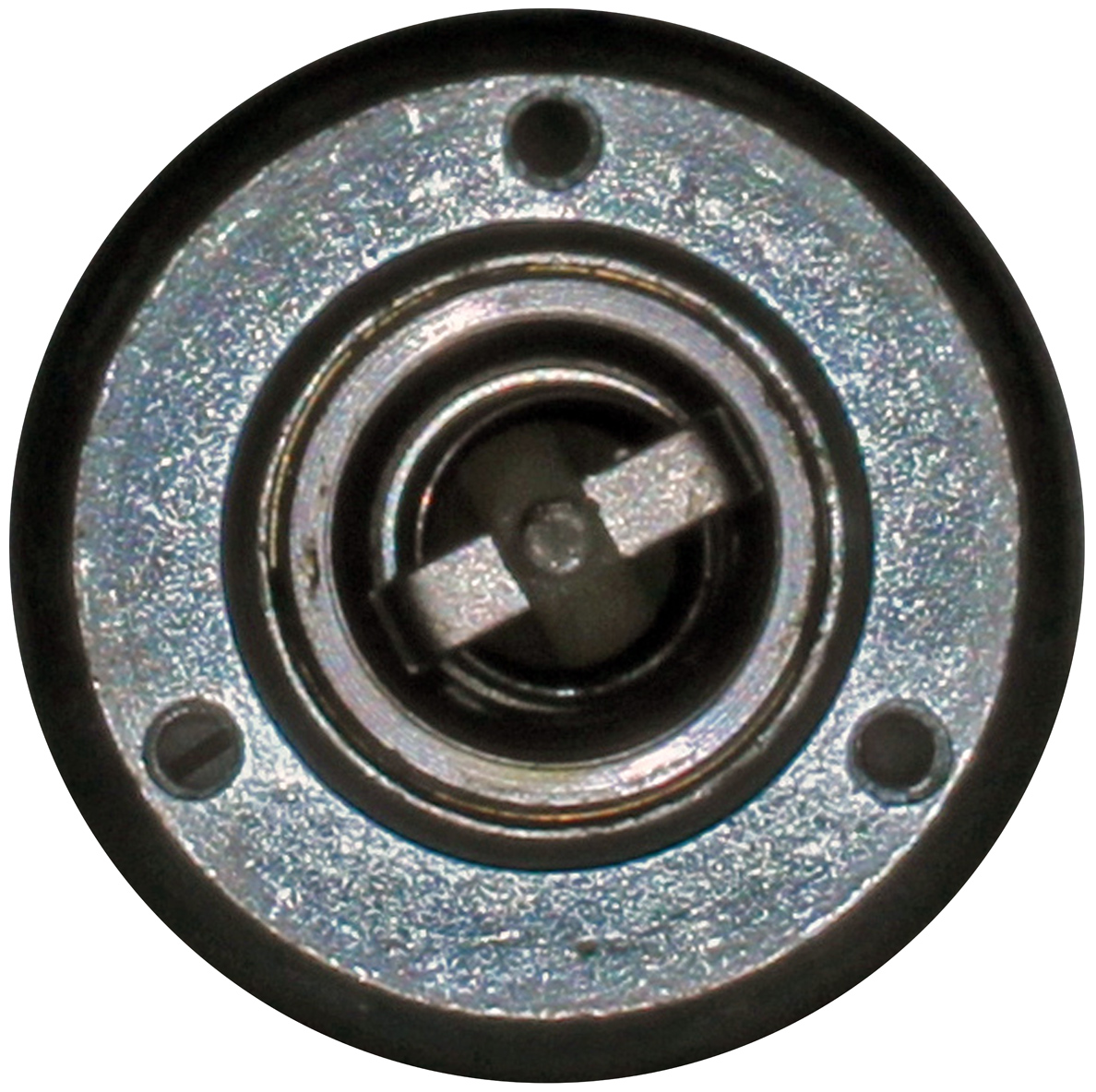

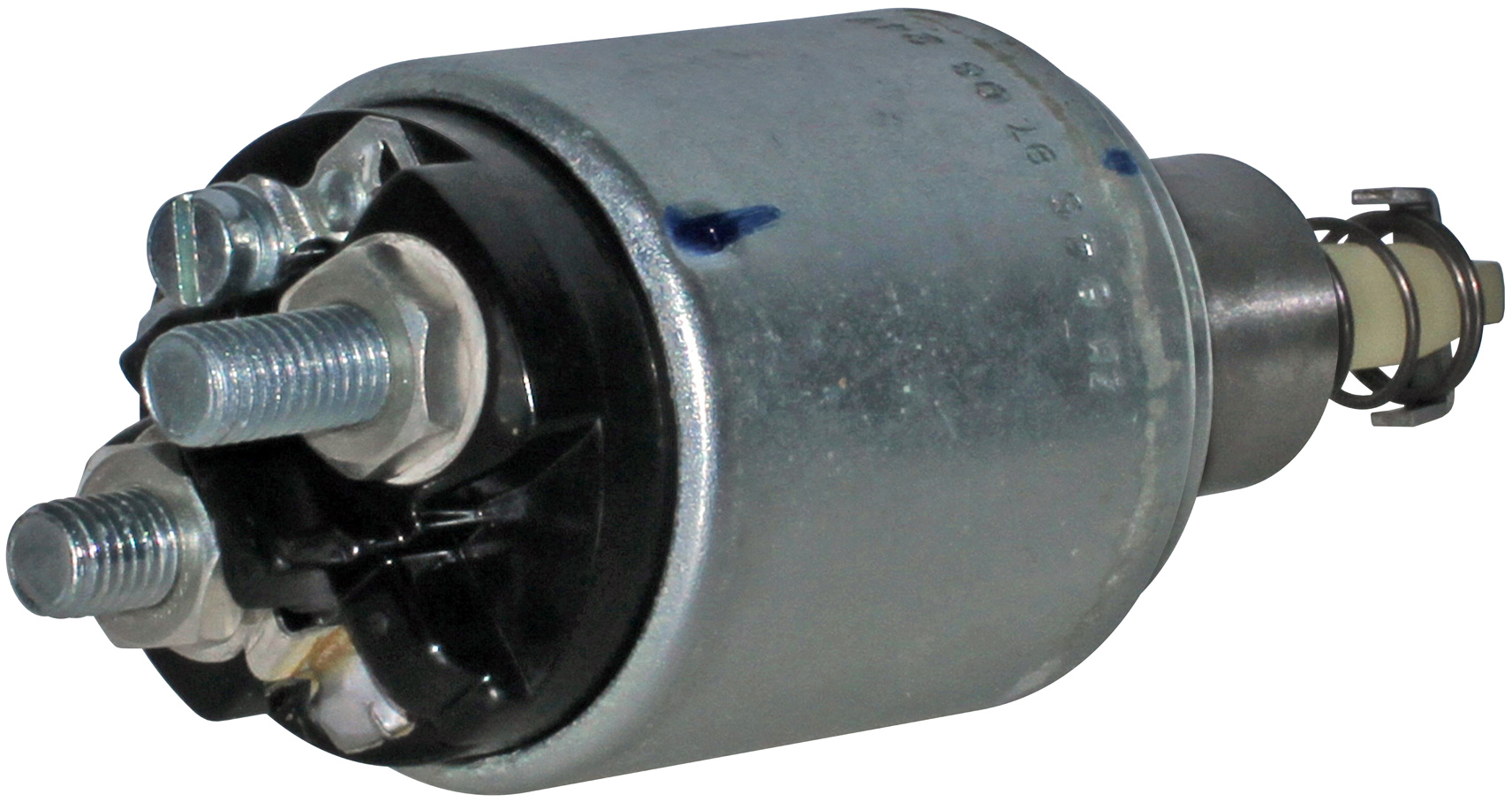

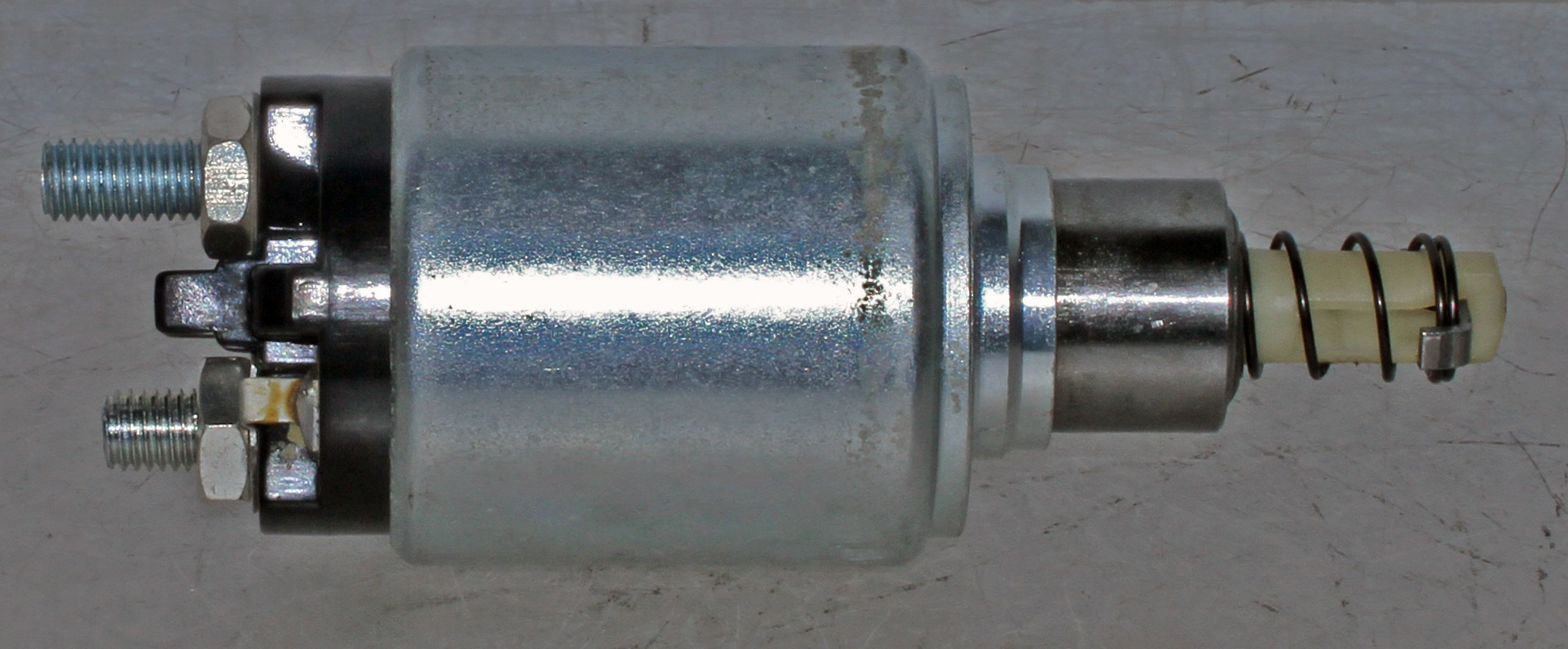

02132 - BOSCH REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Liebherr Excavators, Kassbohrer, Mercedes Heavy Duty Trucks / Buses. Bosch 24V / 4.0Kw DD Type Starters.

STARTER #’S: 0-001-360-022, 0-001-360-037, 0-001-360-056, 0-001-368-024, 0-001-368-028, 0-001-368-055, 0-001-368-062; SR915X.

LESTER #’S:? 18250, 18371.

COMPONENTS: Cap – 03164 M6; Contact – 03906.

Manufacturer: BOSCH

IAT Product Number: 02132

Original Numbers:?Bosch: 0-331-402-010; Mercedes: 000-152-34-10; Lucas: TOB456; WAI: 54-9106.

Additional Information: Voltage: 24V, Cap Design: CRIMPED, Mount Design: 3 Hole, Mounting Threads: M5 x 0.8; Body OD: 61.0 mm, Battery Terminal: M10 x 1.5, Motor Terminal: M10 x 1.5, Switch Terminal: M6 x 1.0 Hole, Plunger Type: Removable.

Related Items: 03154 M6, 03906
