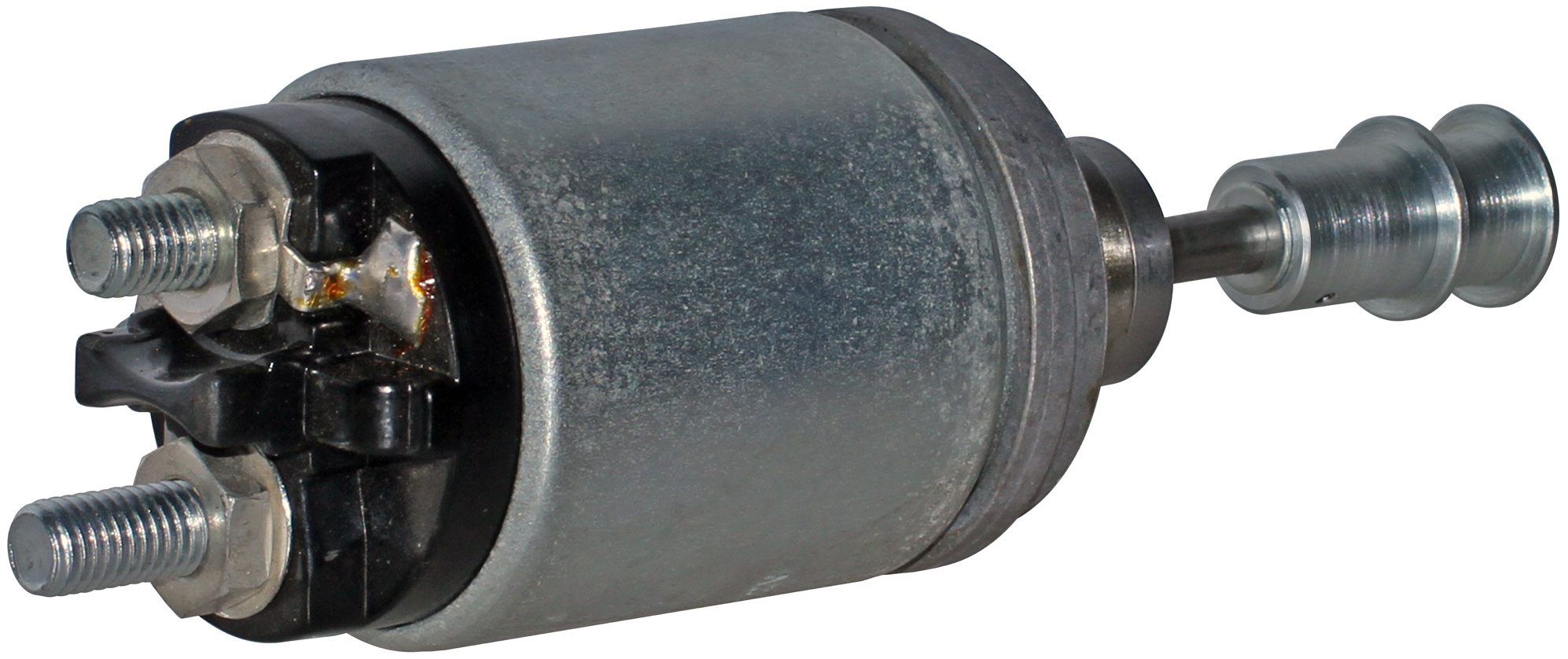

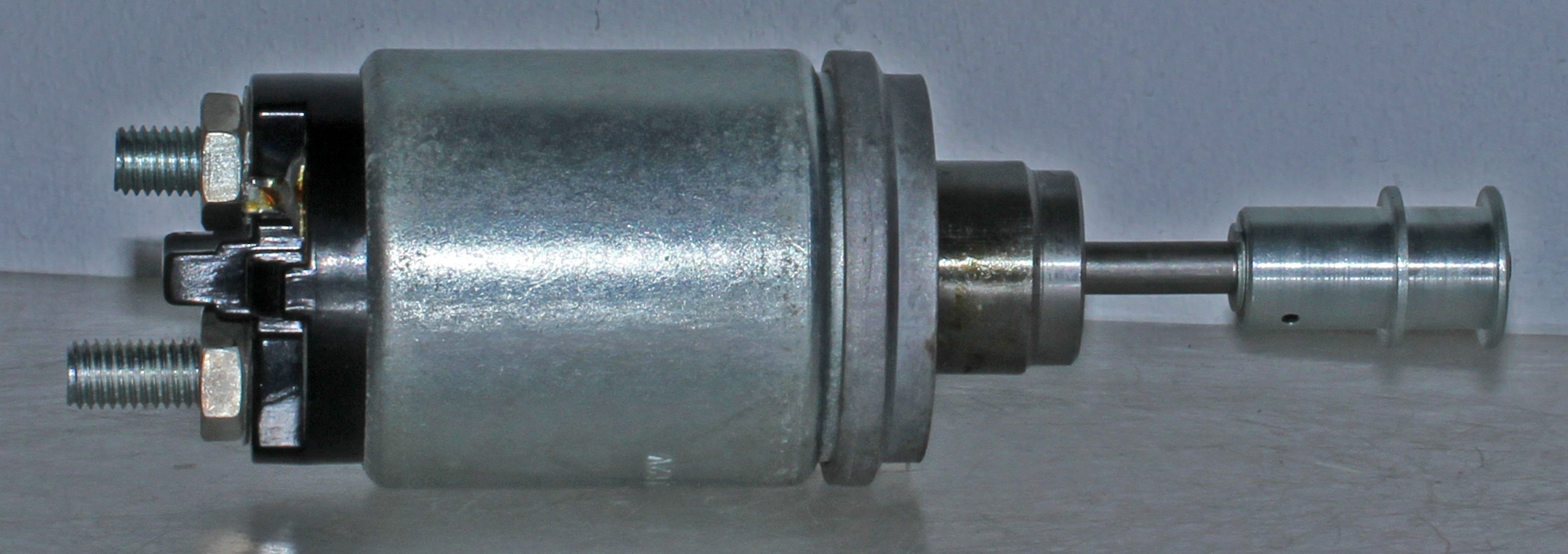

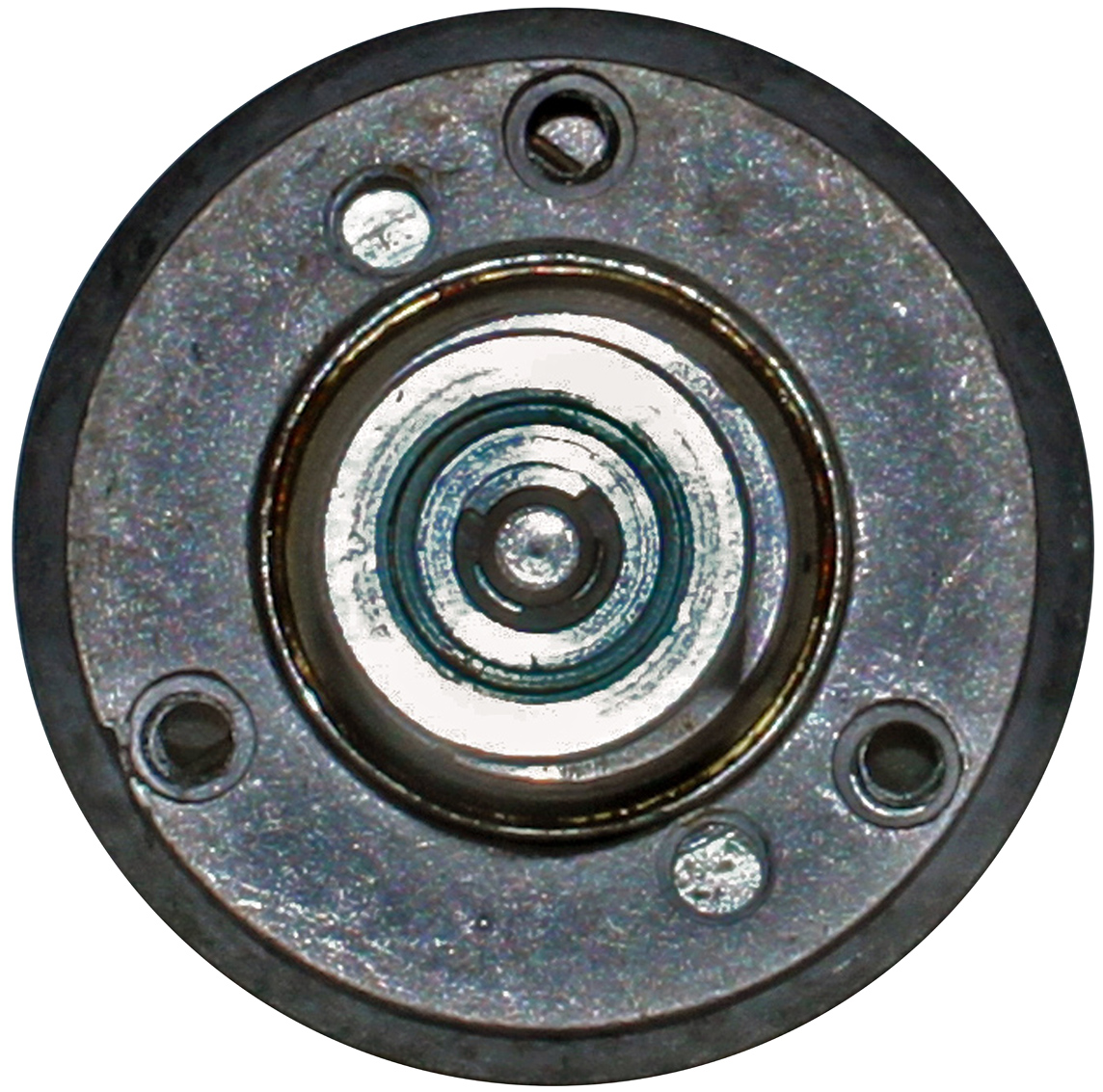

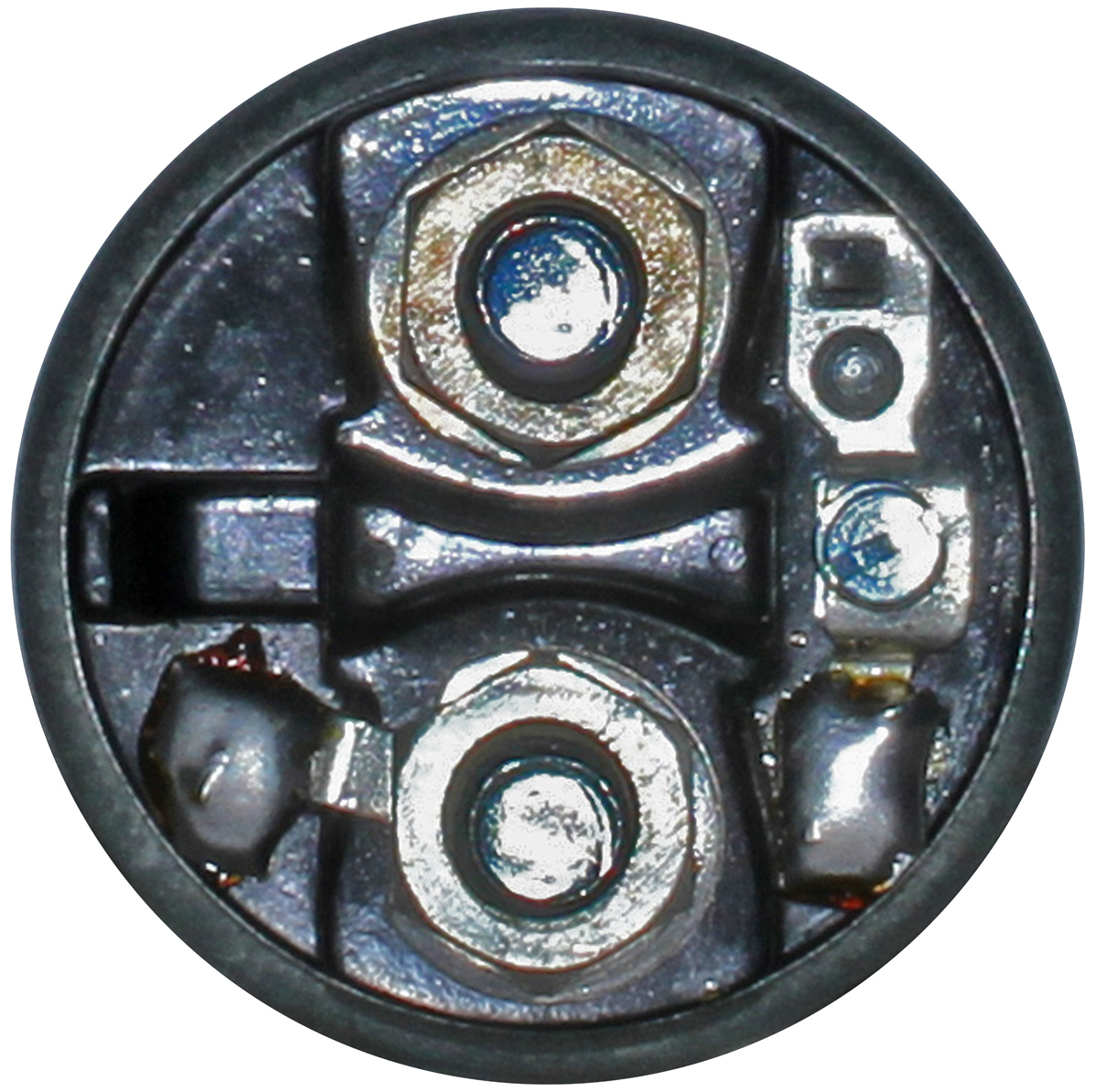

02135 - BOSCH REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Atlas, Carraro, Claas, Deutz Tractors, Deutz Marine, Fuchs Excavator, Hatz Engines, John Deere Tractors, Koppel, KHD Engines, Lamborghini, Liebherr Excavators, Iveco, New Holland Tractors, Poclain, Same, Steyr, Volvo Penta Marine. Bosch 2.3-3.0 Kw DD Starters.

STARTER #?S: 0-001-358-017 to 0-001-358-021, 0-001-358-023, 0-001-358-026, 0-001-358-027, 0-001-358-028, 0-001-358-029, 0-001-358-031 to 0-001-358-035, 0-001-358-037, 0-001-358-038, 0-001-358-040, 0-001-358-041, 0-001-358-043, 0-001-358-045,?0-001-358-046, 0-001-358-047; SR906X, SR912X.

LESTER #?S: 17074, 17112, 17113, 17258, 18046, 18465.

COMPONENTS: Cap – 03148; Contact – 03918.

NOTE: Adapter Plate included to change 3-Hole Mtg. to 2-Hole Mtg.

Manufacturer: BOSCH

IAT Product Number: 02135

Original Numbers:?Bosch: 0-331-400-014, 0-331-400-016, 0-331-400-017, 0-331-400-022, 0-331-401-007, 0-331-401-507, 0-331-402-076; Bomag: 057-550-54; Iveco: 1287307;? John Deere: AL19193; KHD: 128-7307; Lucas: TOB457; MWM: 6-0742-25-1-0101; ;Steyr: 406-09-0716; Volvo: 870809; WAI: 66-9185.

Additional Information: Voltage: 12V, Cap Design: CRIMPED, Mounting Threads: M5 x 0.8, Body OD: 61.0 mm, Mount Type: 3 Hole, Battery Terminal: M10 x 1.5, Motor Terminal: M10 x 1.5, Switch Terminal: M4 x 0.7Hole, Plunger Type: Removable.

Related Items: S17074, S17112, 03148, 03918
