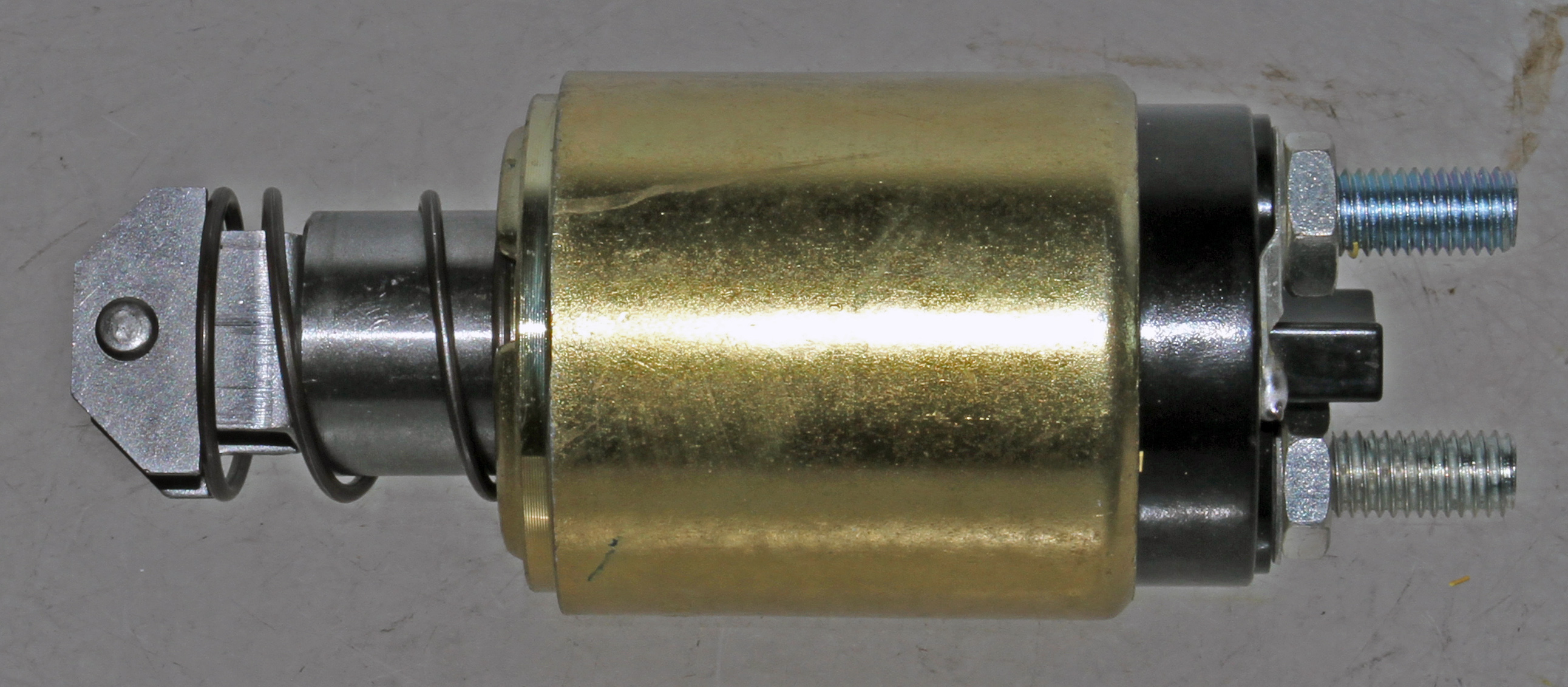

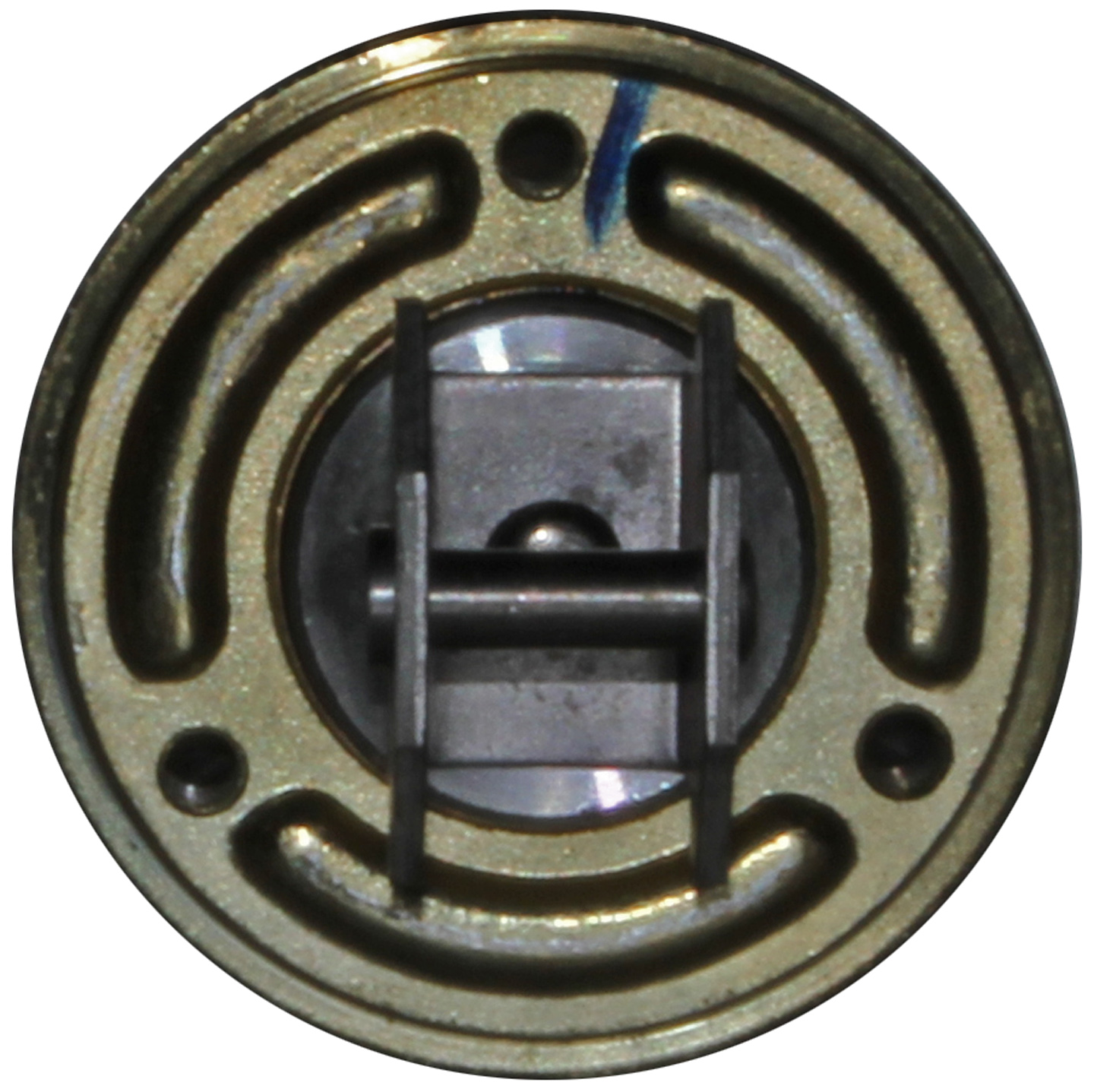

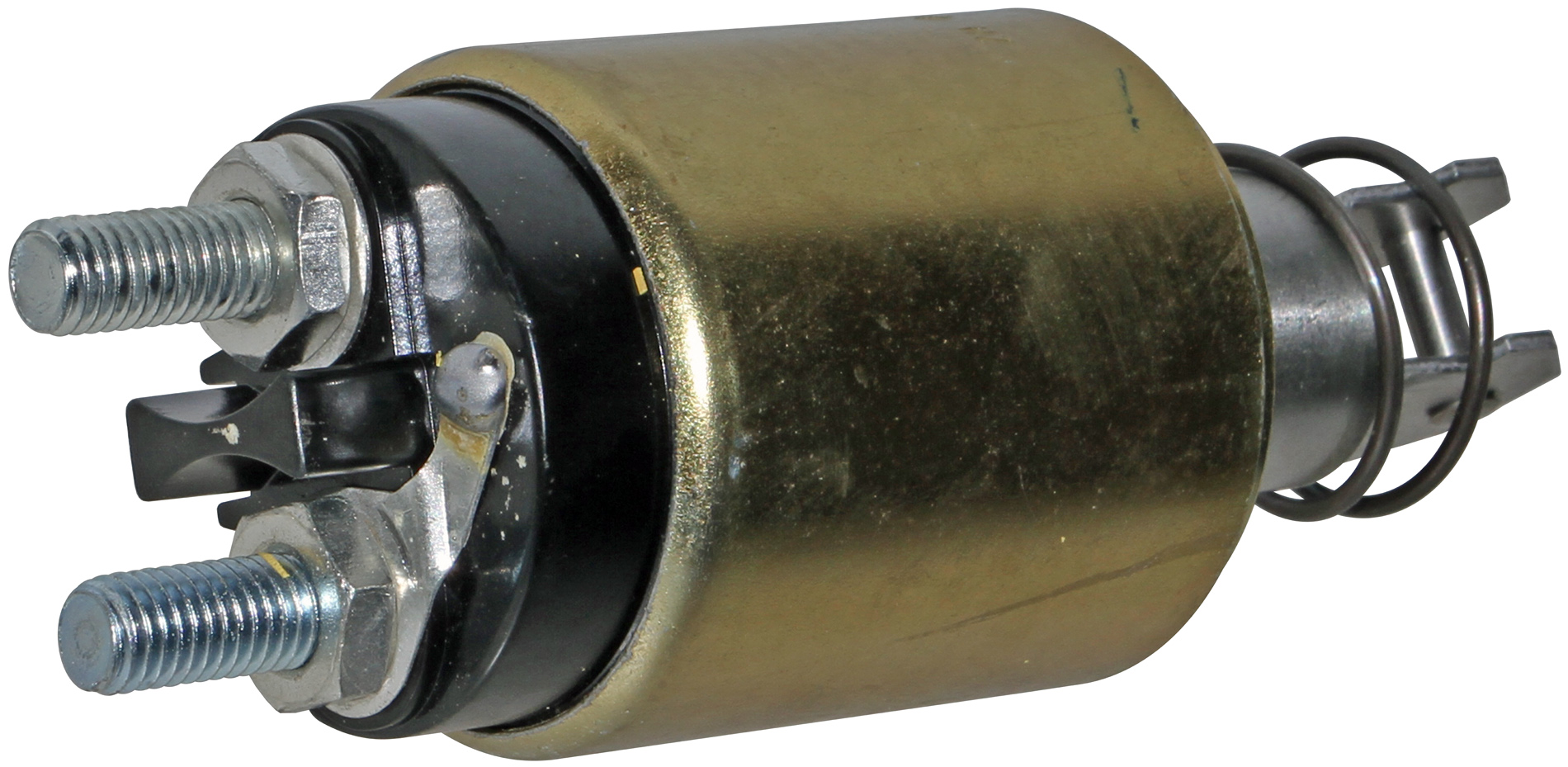

02206 - MARELLI REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: AIFO Marine, Allis-Chalmers Tractors, Alfa Romeo, Fiat, Fiat-Allis Crawlers / Wheel Loaders, Iveco Trucks, Fiat Tractors, Hesston Tractors, Hyster, Ford Tractors, Long Tractors, New Holland Tractors, OM Tractors, White Tractors. Marelli 2.5-4.0 Kw DD Type Starters.

STARTER #?S: 63216197; 63216802, 63216811, 63216815, 63216827, 63216831, 63216833, 63216859, 63216874, 63216896, 63216898; 63217101, 63217118, 63217119, 63217120, 63217125, 63217126, 63217147, 63217148, 63217154, 63217188, 63217197; 63217410; 632 216 30; MT68Q, MT68AC, MT68AD, MT68BA, MT68MB, MT68MA, MT68LC, MT68LB; MT71T, MT71U, MT71V, MT71Z, MT71AA, MT71AB, MT71DA, MT71DB.

LESTER #?S: 17092, 17111, 17126, 17325, 17328, 18461, 18462, 30036, 30828, 30934, 32202.

COMPONENTS: Cap – 03206.

Manufacturer: MARELLI

IAT Product Number: 02206

Original Numbers:?Marelli: 63216874, 63633801, 63633825, 85540011, 85540221, IE38A, IE38AA; Fiat: 79036683, 7980335, 9936770, 9957705, 9986144; Lucas: TOB810; WAI: 66-9302.

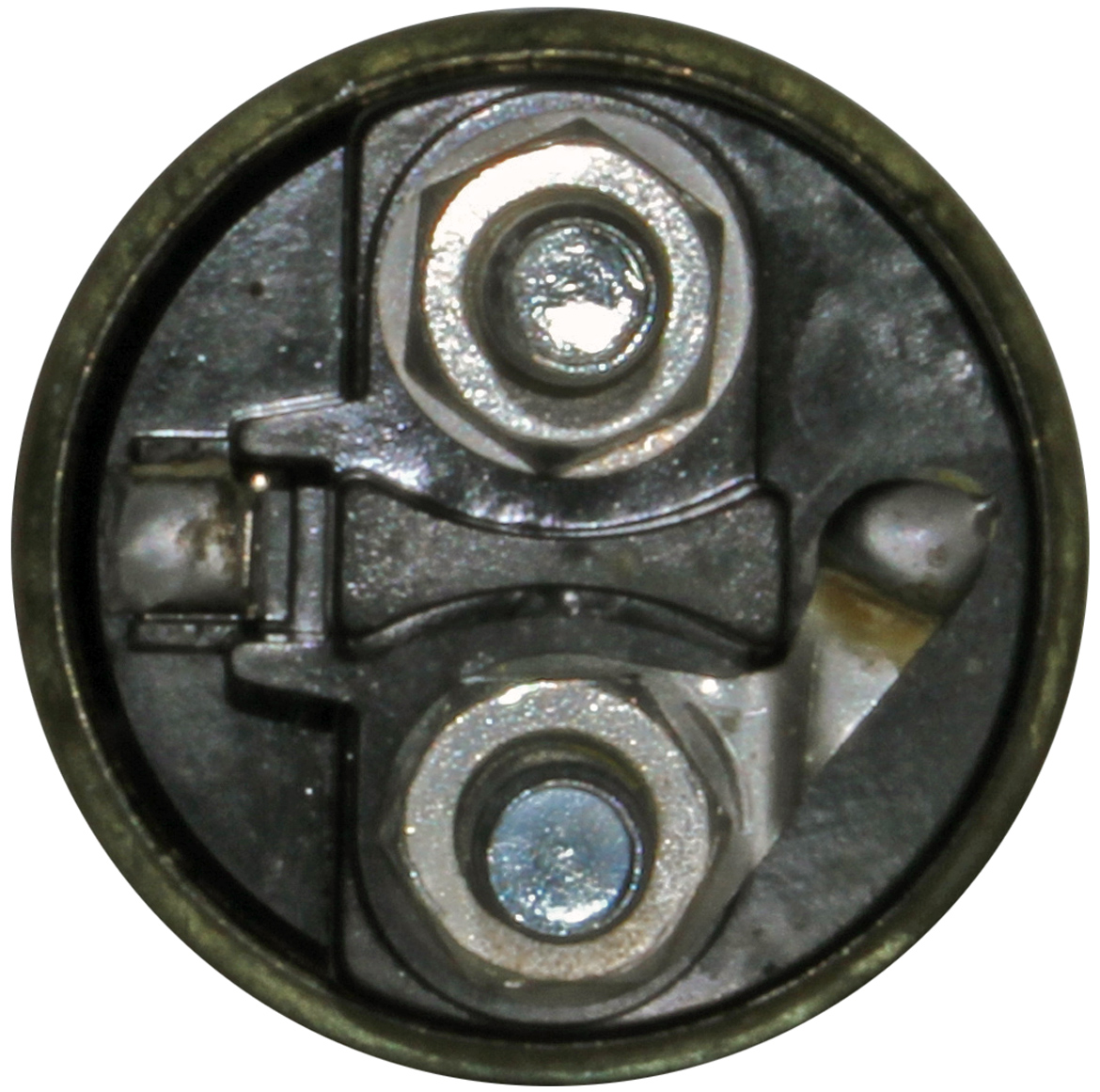

Additional Information: Voltage: 12V, Mount Type: 3 Hole, Mounting Threads: M5 x 0.8, Battery Terminal: M10 x 1.5, Motor Terminal: M10 x 1.5, Switch Terminal: Male Spade.

Related Items:? 03206, S17092, S17111, S17093
