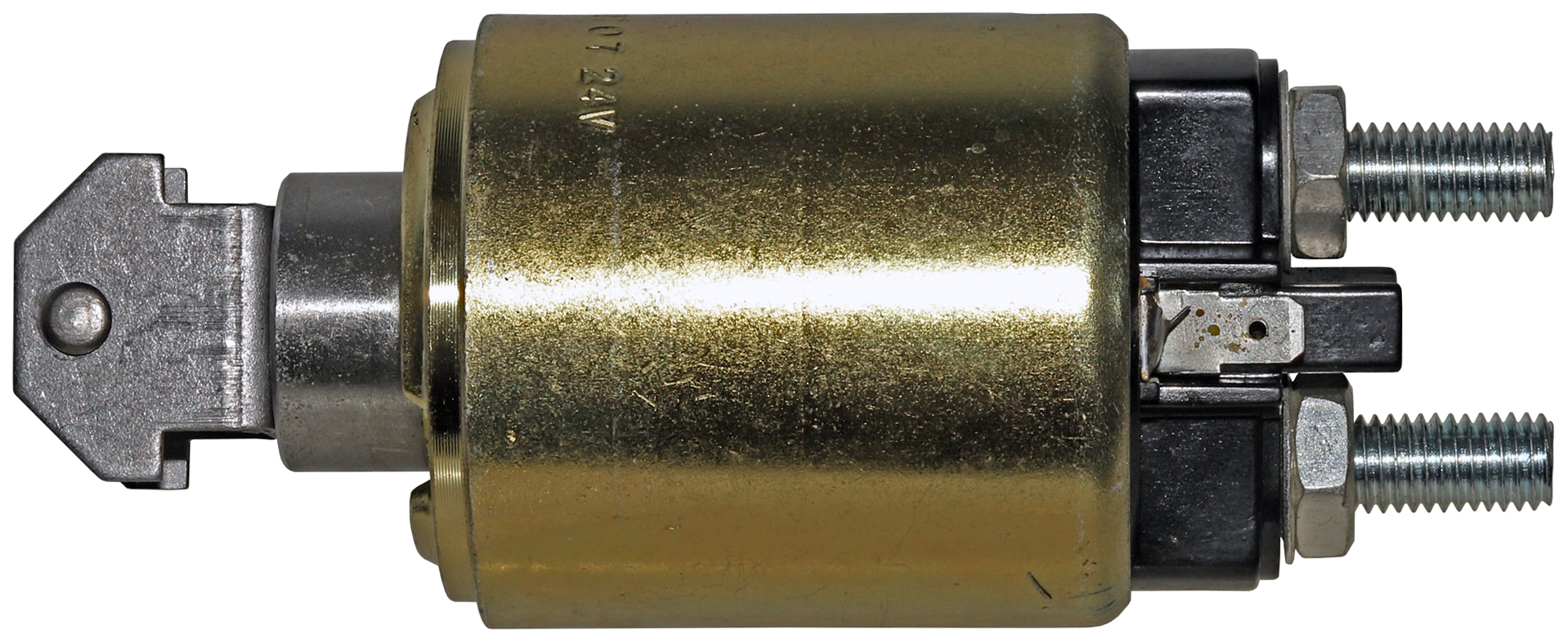

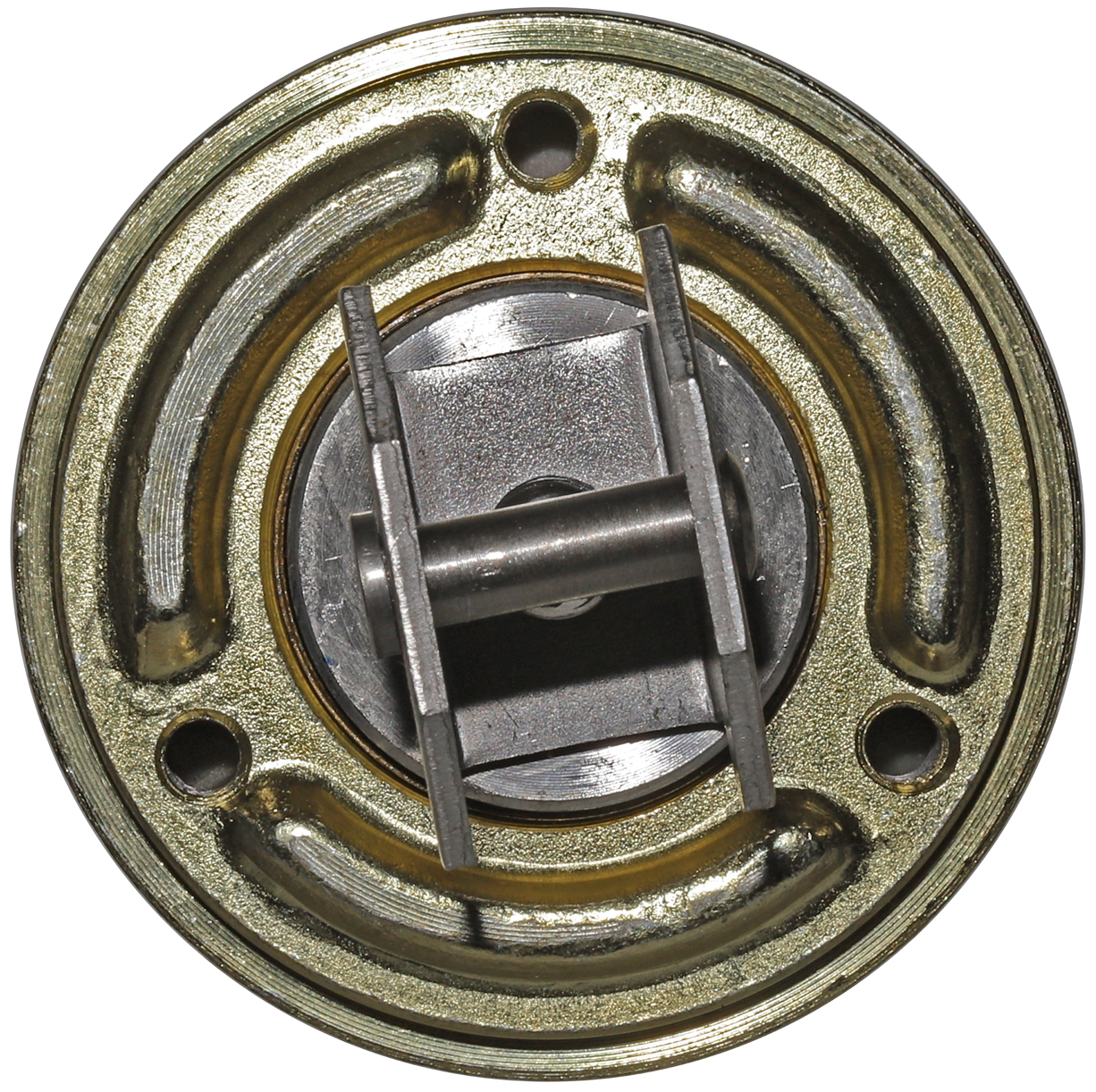

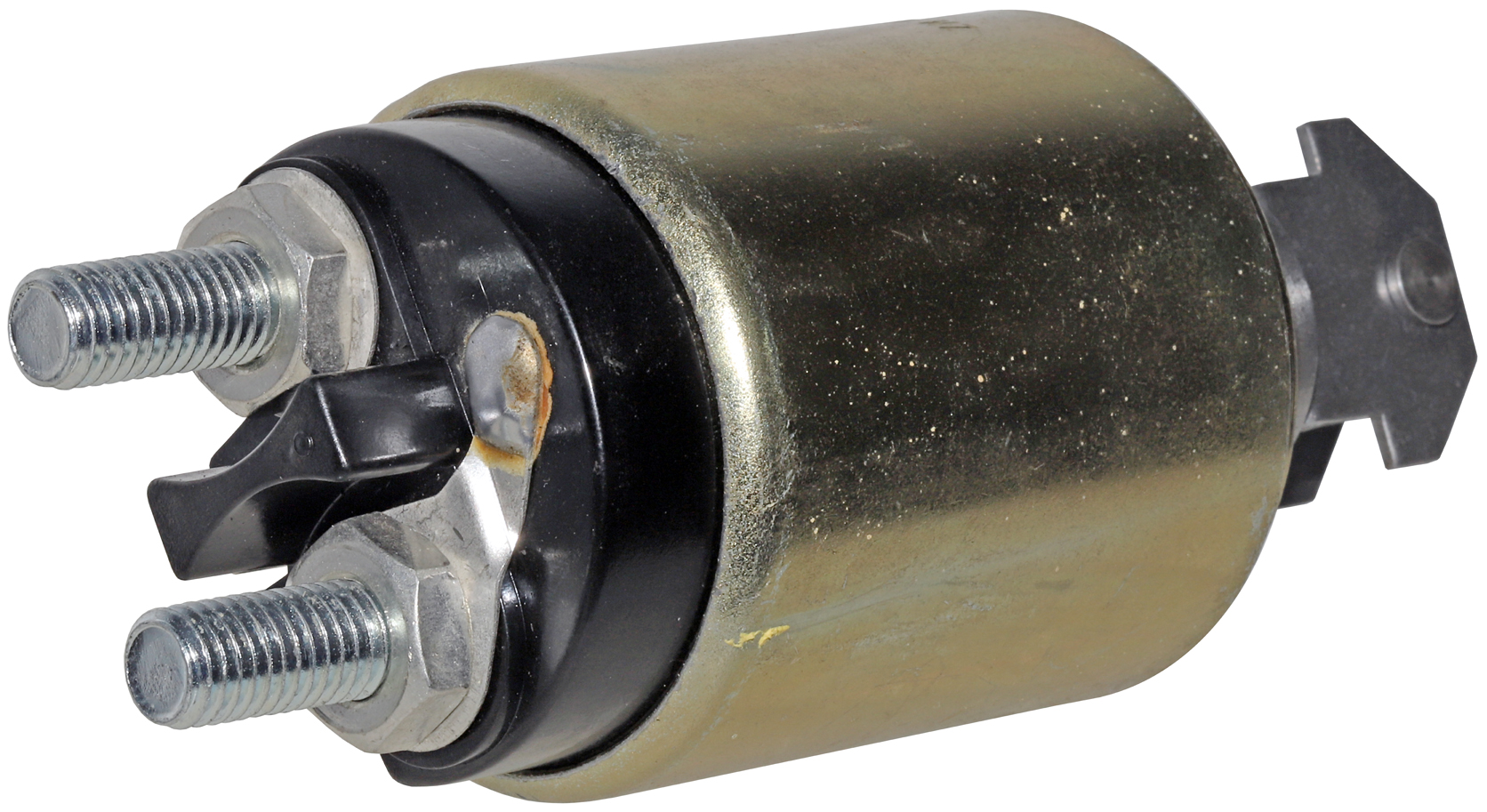

02209 - MARELLI 4.0 KW INDUSTRIAL REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Aifo Marine, Astra, Benfra, Fiat-Allis Excavators / Graders / Loaders, Iveco Trucks, OM, Loraine 170S, New Holland Wheel Loaders, Orlandi, Padane, Renault, Simit, Unic Buses. Marelli 24V / 4.0 kw Industrial DD Starters.

STARTER #?S: 63216706, 63216725, 63216726, 63216727, 63216731, 63216733, 63216738, 63216740, 63216741, 63216747, 63216763; 63217201, 63217225, 63217226; MT67AC, MT67AD, MT67BA, MT67CA, MT67DA, MT67FA, MT67FB; MT72AA, MT72AB.

LESTER #?S: 18031, 18091, 18092, 18093, 18094.

COMPONENTS: Cap – 03206.

Manufacturer: MARELLI

IAT Product Number: 02209

Original Numbers:?Marelli: 63216731, 63216733, 63216738, 63216763, 63633901, 63633902, 63633925, 63633933, 63633975, 85540211, IE39A, IE39B, IE39BA; Fiat: 79036685, 7980336, 986109; WAI: 66-9303.

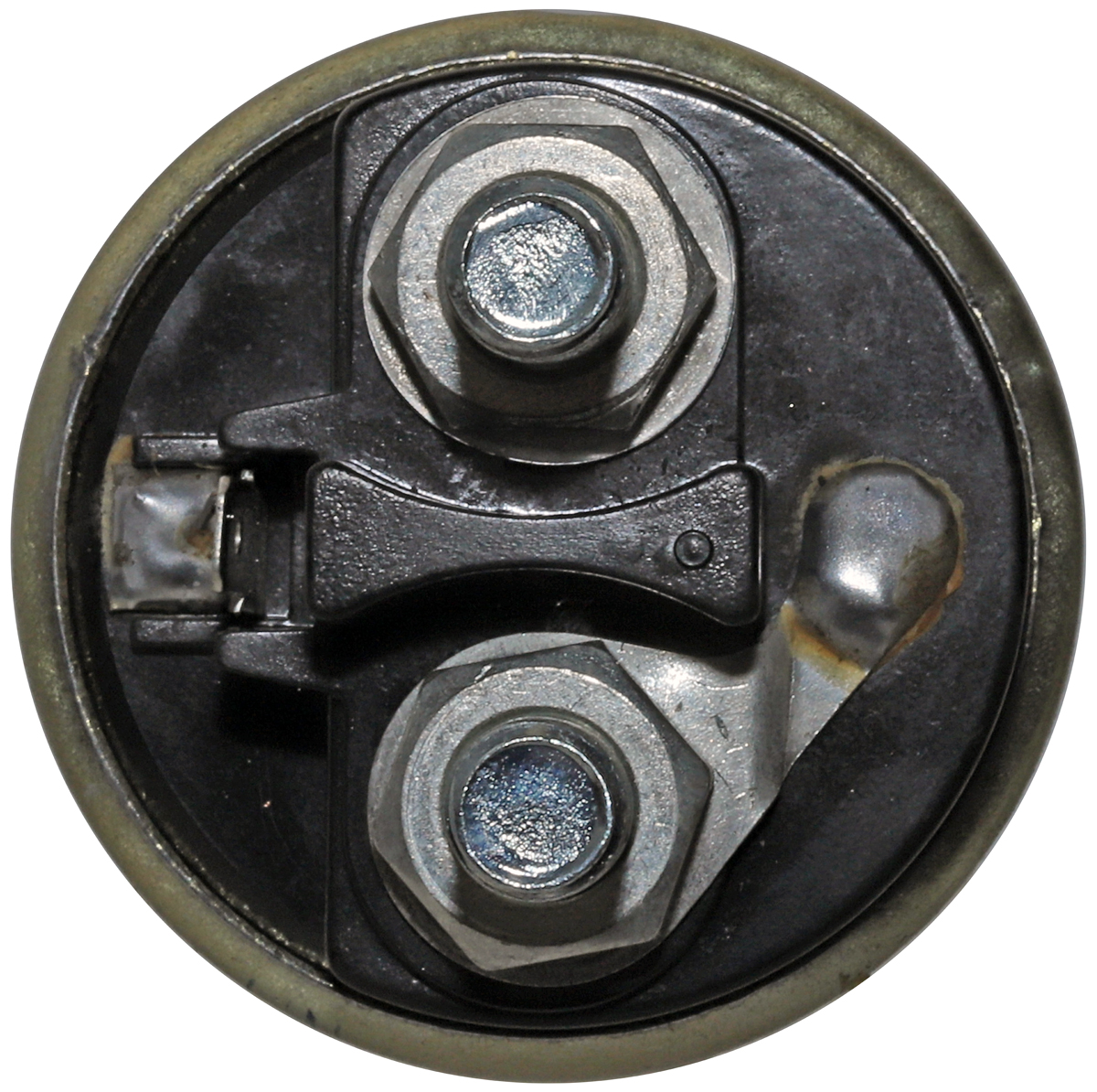

Additional Information: Voltage: 24V, Mount Type: 3 Hole, Mounting Threads: M5 x 0.8, Battery Terminal: M10 x 1.5, Motor Terminal: M10 x 1.5, Switch Terminal: Male Spade (LH).

Related Items:? SMT67AD, SMT67C, S947
