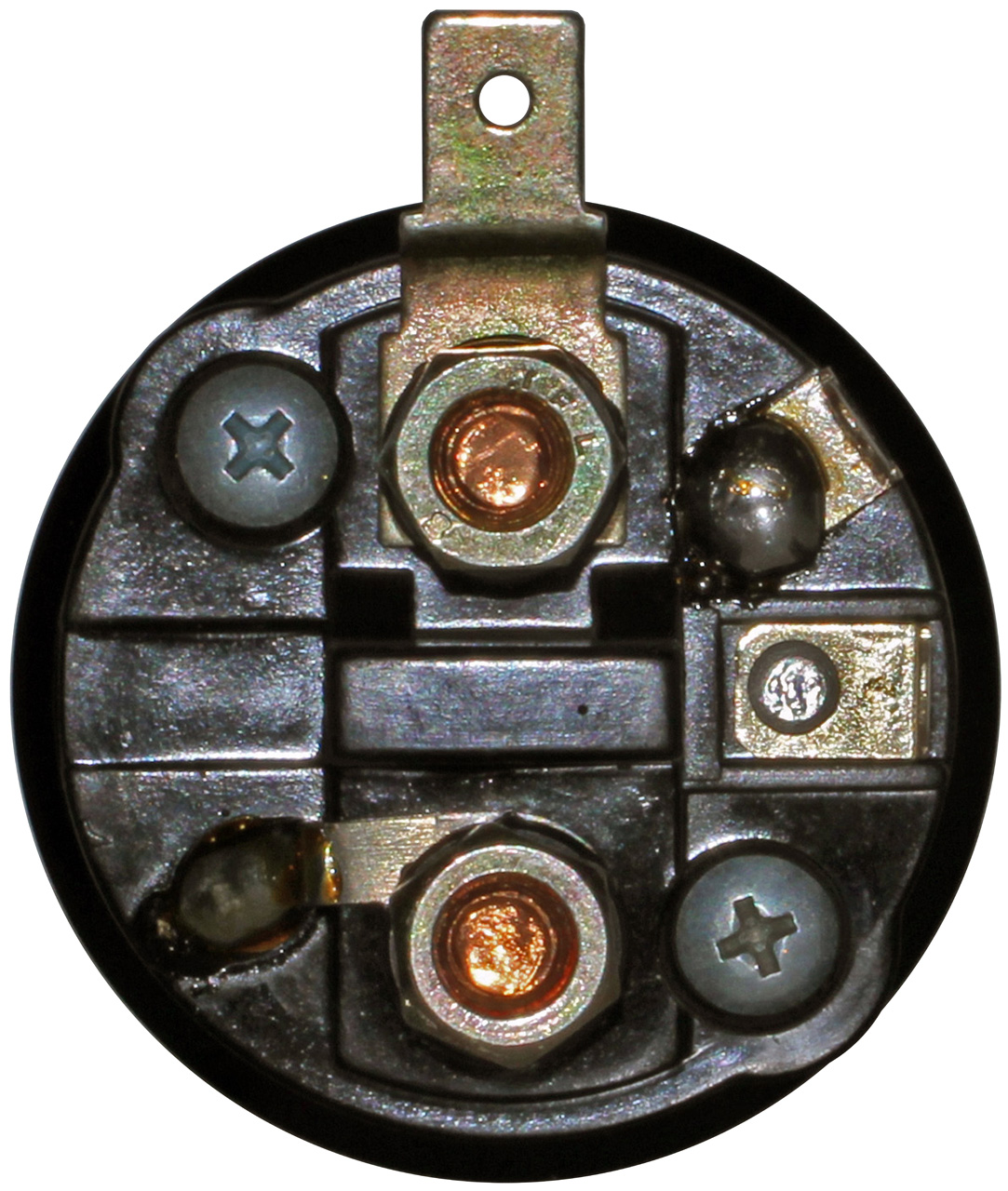

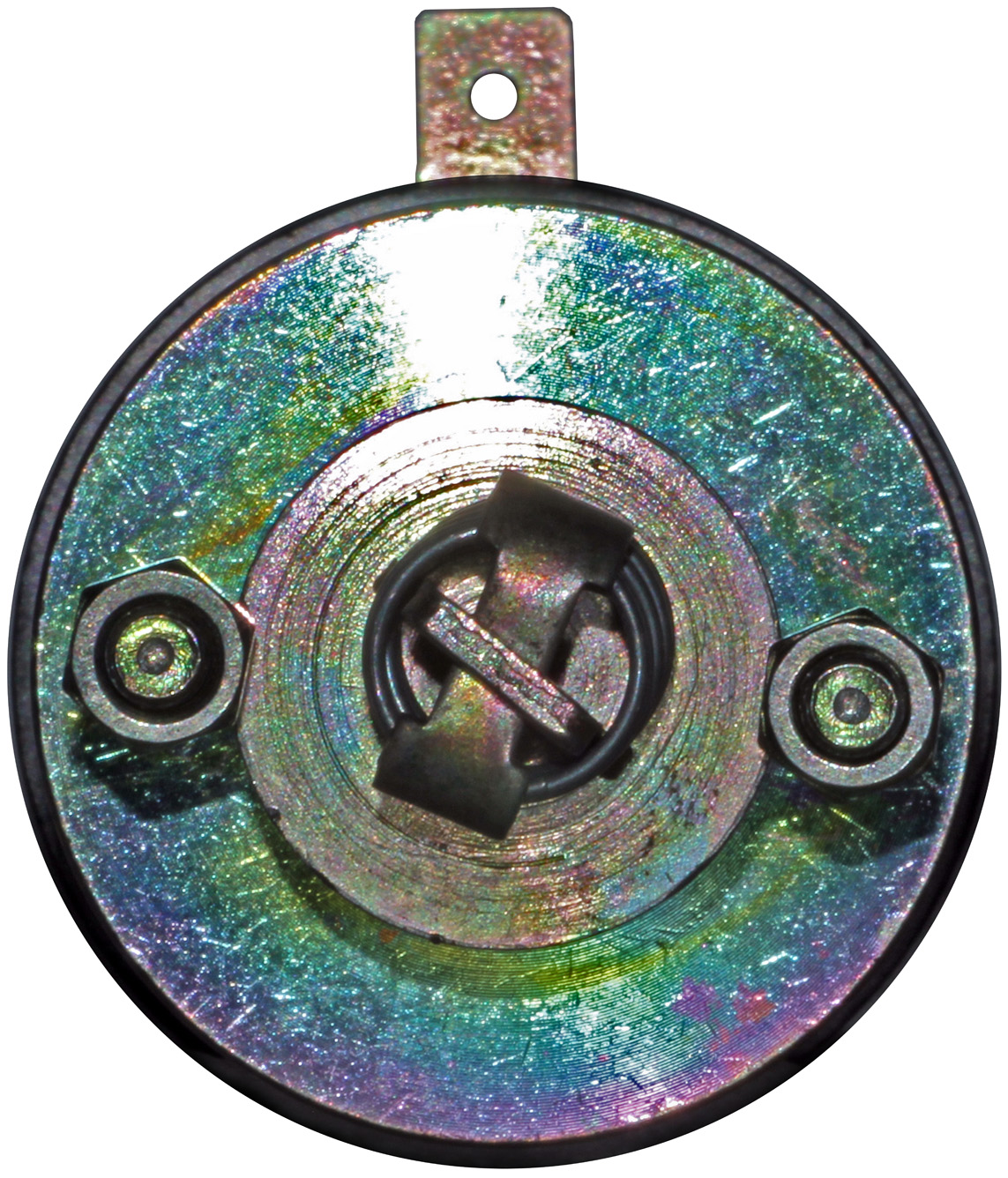

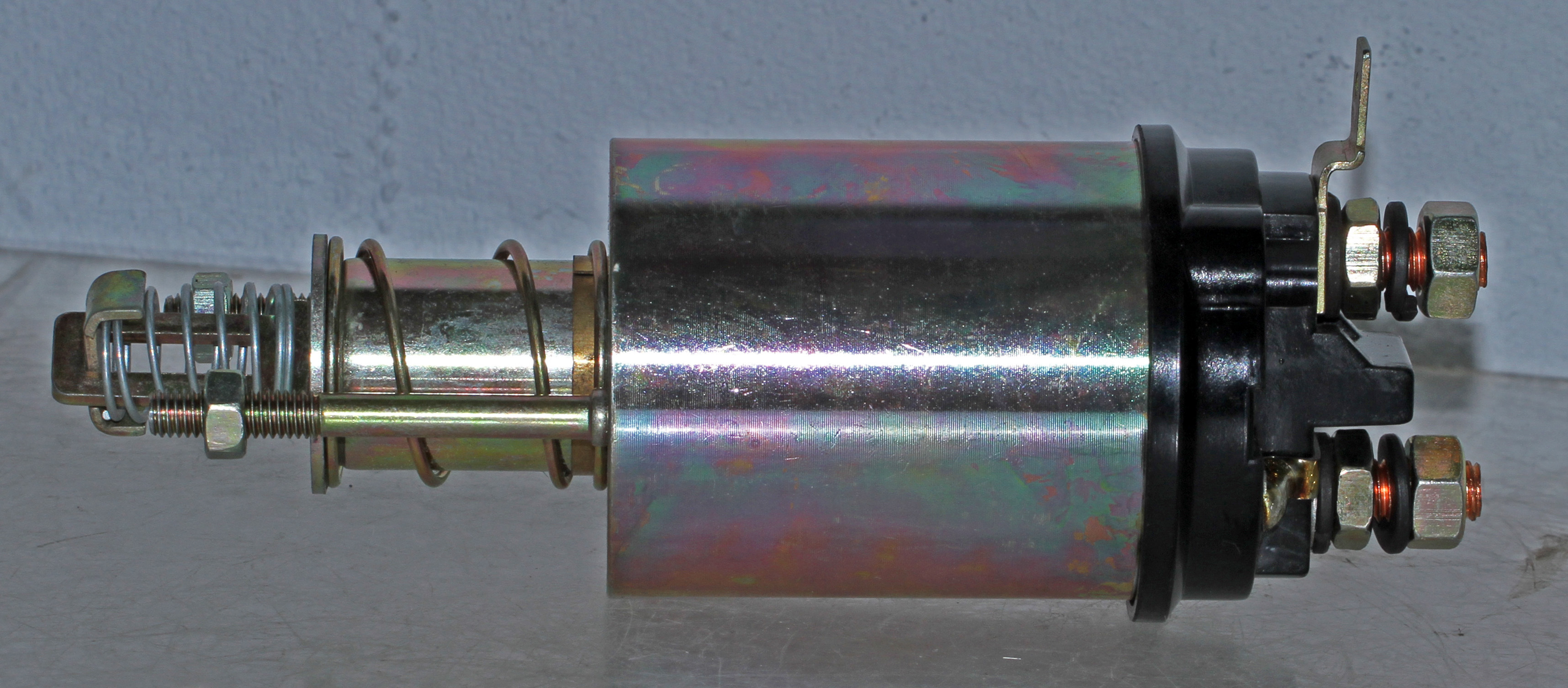

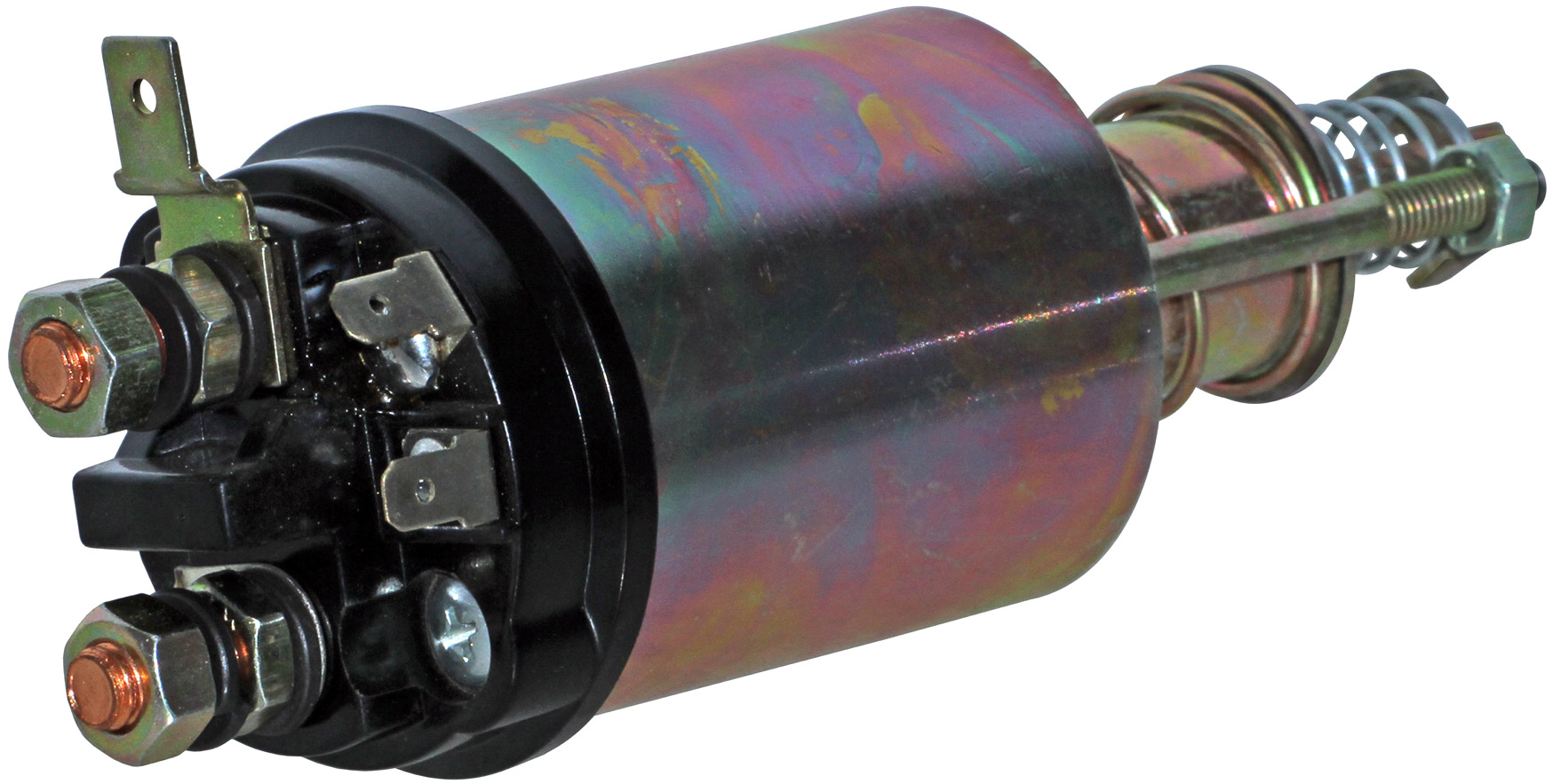

02411 - LUCAS M45, M418G, 2M113 TYPE REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Alfa Romeo, Allis Chalmers Tractors, Austin, Barber Green Finishers, Bedford, Bentley, Bonsor, Case Tractors, David Brown Diesel, Ford, Henley, IHC, Jensen, Leyland DAF Engines, Leyland Nuffield Tractors, Lister-Petter Tractors, Lotus, MG, Massey Ferguson Tractors, Perkins Generators, Range Rover, Rolls Royce, Triumph. Lucas M45, M418G, 2M113 Type Starters.

STARTER #?S: 25601A/B, 25603A/F, 25604A/D, 25615A/E, 25619A/B, 25620A/D, 25621A/E, 25626A/D, 25627A/E, 25632A/F, 25633A/E, 25673A; 26233A/J, 26233K/M, 26236A/K, 26236L, 26238A/L, 26238M/Q, 26248A/L, 26248M, 26256A/E, 26256H, 26259A/K, 26259L/N, 26260E, 26267A/F, 26268A/H, 26268J/L, 26270A/J, 26271A/E, 26271F/J, 26278A/F, 26278H, 26279A/E, 26279F/K, 26280A/E, 26280F/J, 26281A/E, 26281F/J, 26283A/F, 26283H/K, 26285A/E, 26285F, 26286A/E, 26286F/J, 26287A/E, 26287F/J, 26288F, 26288A/E; 26300A/J, 26301A/E, 26301H, 26302A/D, 26302E/H, 26306A/D, 26310A/D, 26310E/F, 26320A/B, 26320D/J, 26321A/B, 26321D/F, 26333B, 26347A/B, 26370B/E, 26375A/D, 26391A/B; 26413A, 26422A; 27403A, 27407A, 27410A, 27411A/B, 27413A/D, 27414A, 27415A/D, 27416A/D, 27417A/D, 27418A, 27419A/D, 27420A/B, 27421A/B, 27422A, 27423A, 27424A/B, 27425A, 27427A/E, 27431A/B, 27433A/D, 27435A, 27436A, 27439A, 27443A, 27446A, 27447A, 27460A/B, 27463A/D, 27464A/B, 27465A/B, 27468A/B.

LESTER #?S: 16107, 16110, 16160, 16164, 16165, 16166, 16170, 16173, 16181, 16184, 16284, 16286, 16287, 16288, 16660, 16664, 16665, 16699, 17072, 17640, 17641, 17643, 17644, 17645, 18260, 18261, 18263, 18919, 19742, 30215, 30420, 30550, 31120, 32018, 33088, 33089.

COMPONENTS: Cap – 03402; Contact – 03903.

Manufacturer: LUCAS

IAT Product Number: 02411

Original Numbers:?Lucas: TOB109, TOB162, 76755, 76763, 76786, 76796, 76800, 76803, 76815, 76820, 76823, 76824, 76826, 76827, 76837, 76850, 76855, 76871, 76885, 76891, 76892, 76897, 76902, 76982, 77034, 77058; GM: 2696282, 8845653; Case: 3111040R91; DAF: 0497831, 10906826; Land Rover: AEU1649, 517474, 519535, 607752; Massey Ferguson: 1632988M91; Peugeot: 75062460, 75062473; Perkins: 28730210; Rolls Royce: CD5217, UD5217; Rover: 37H6907;

Additional Information: Voltage: 12V, Cap Design: BOLT-ON, Mount Type: 2 Hole, Mounting Threads: M6 x 1.0, Body OD: 54.0 mm, Battery Terminal: M8 X 1.25, Motor Terminal: M8 X 1.25, Switch Terminal: Male Spade, Relay Terminal: Male Spade.

Related Items: S172, S157, S166, S553, S190, S186, S124, S215, S155, S178, 03402, 03903
