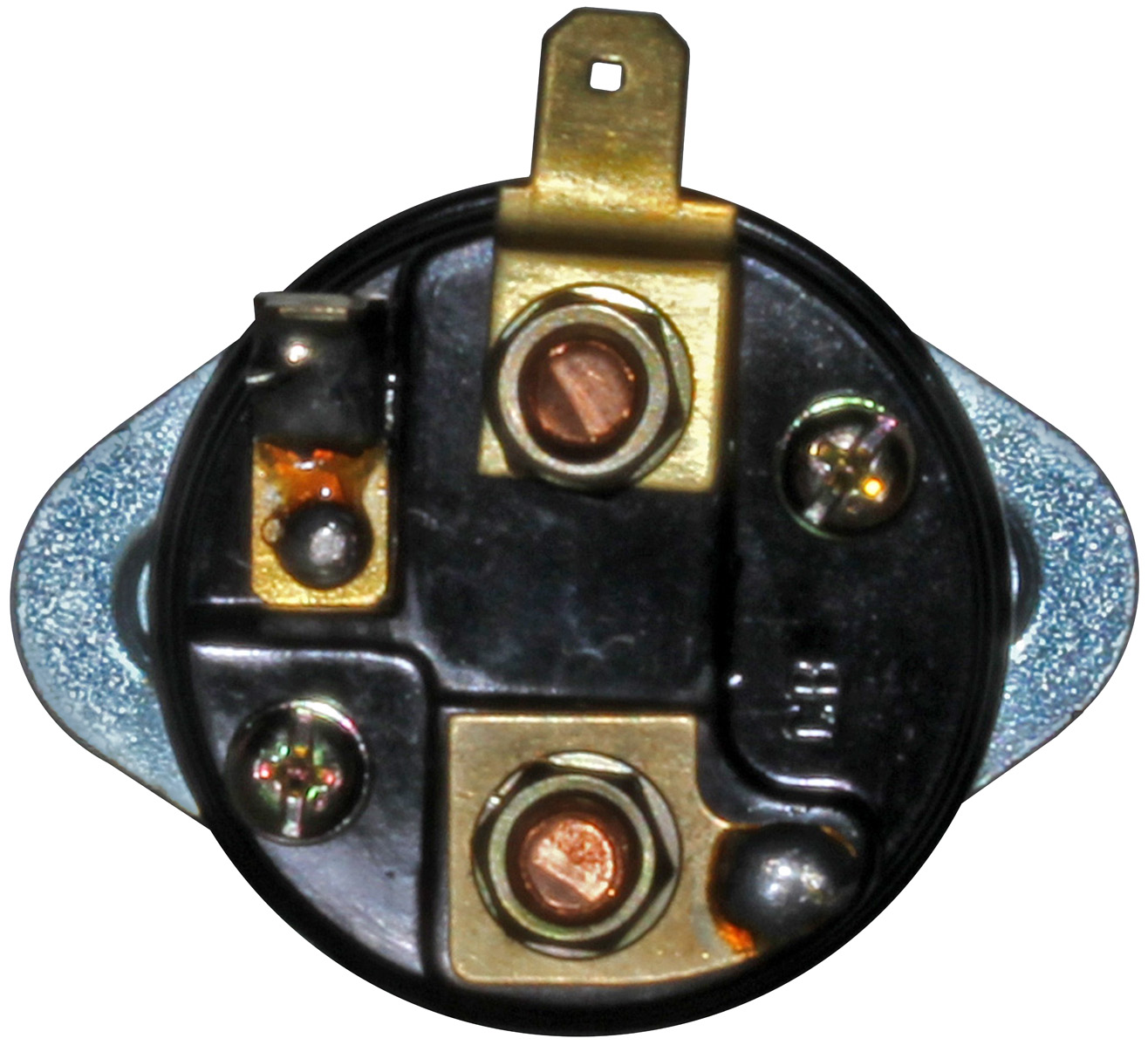

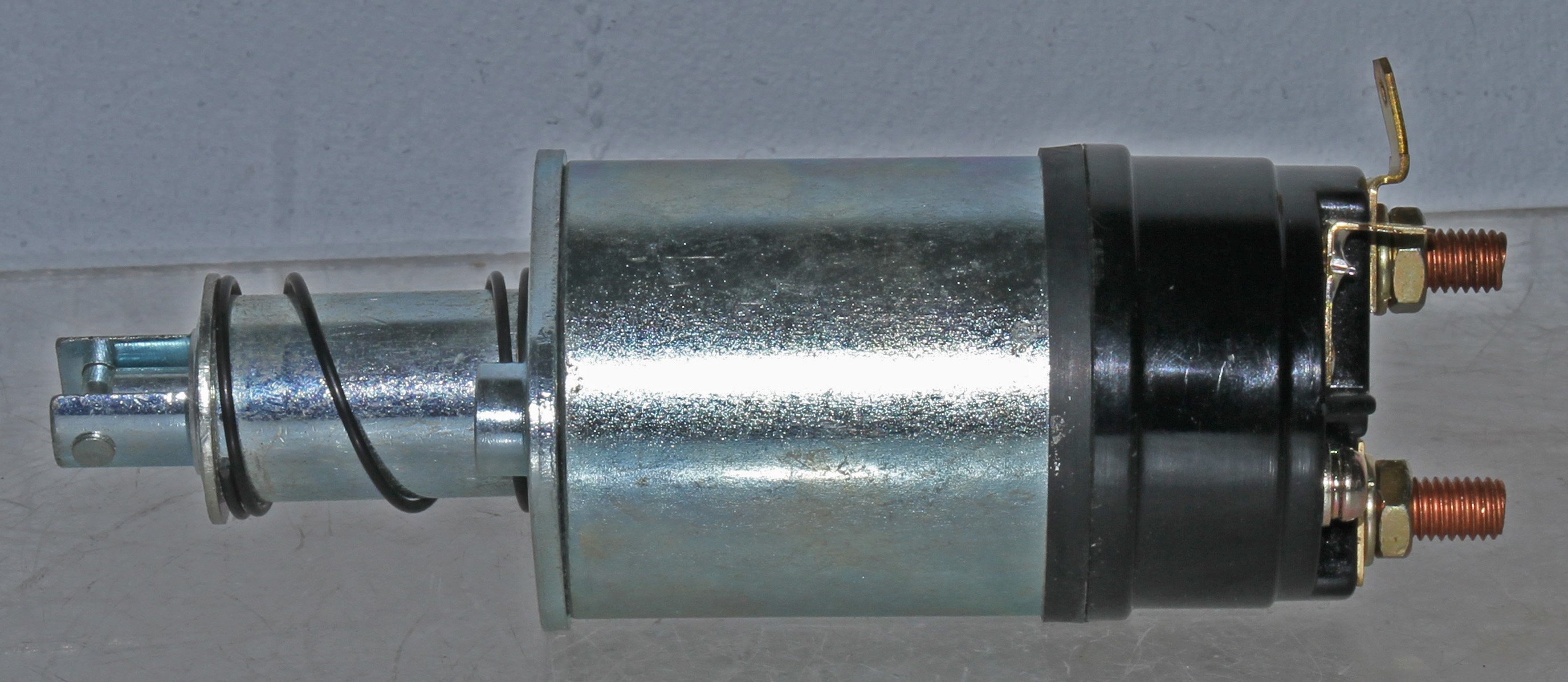

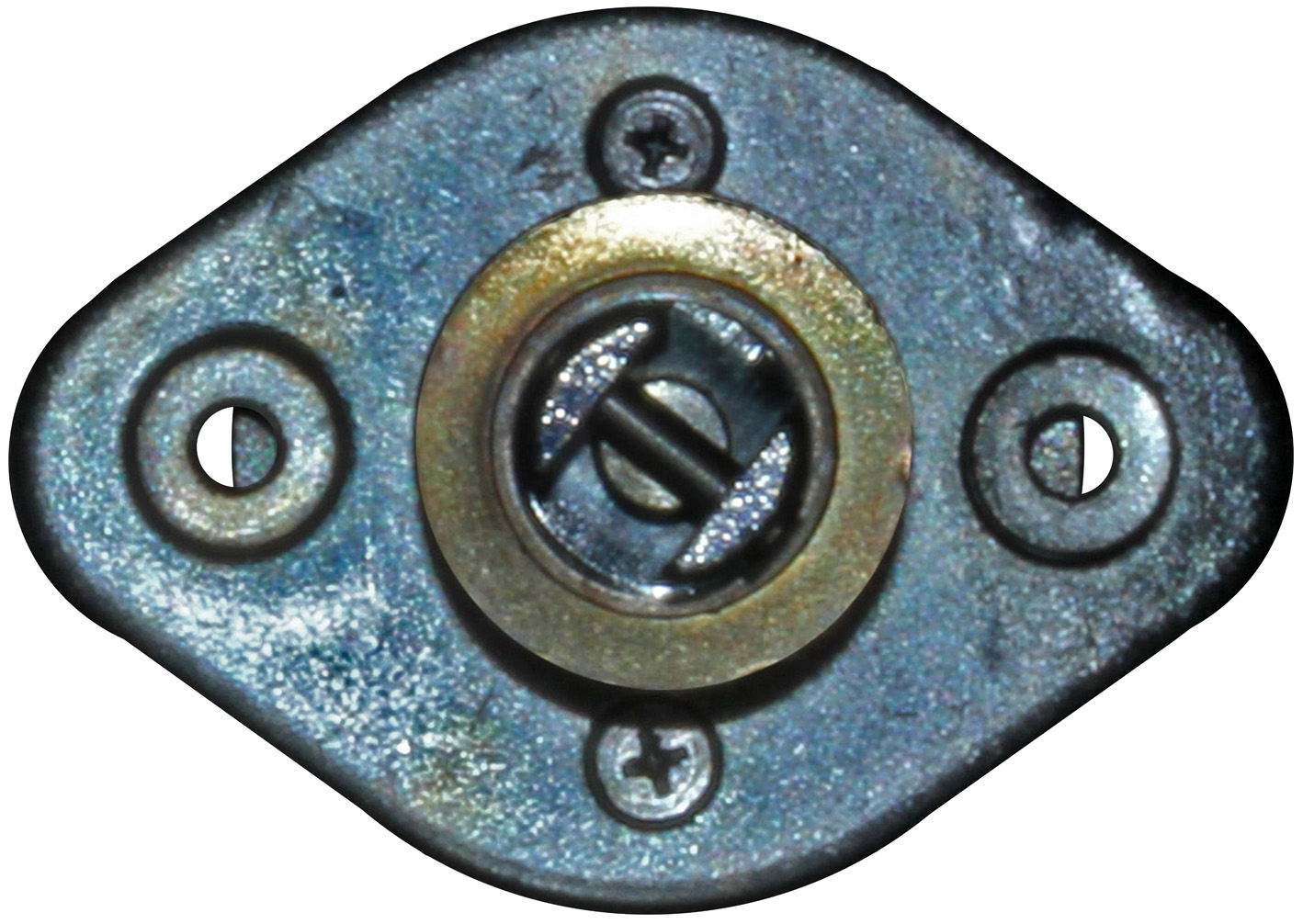

02420 - LUCAS M45G TYPE REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Allis Chalmers Tractors, Austin, Case, Barber Greene Finishers, David Brown Tractor, DAF, Ford Van, Industrial Engines, J.C.Bamford Loaders, IHC, Land-Rover Diesel, Leyland Tractor, Massey Ferguson Tractors, Mahindra Tractor, Nuffield Tractors, Perkins P3 / P4 Engines, Volkswagen. Lucas M45G Type Starters.
STARTER #?S: 26133A/J, 26133K/R, 26145A/F, 26145H/N, 26146A/F, 26146H/N, 26147A/H, 26147J/M, 26148A/F, 26148H/N, 26149A/F, 26149H/M, 26150A/F, 26150H/M, 26151A/F, 26151H/N, 26152A/F, 26152H/M, 26153A/H, 26153J/N, 26154A/H, 26154J/N, 26157A/F, 26157H/M, 26158A/D, 26158E/K, 26159A/D, 26159E/J, 26166A/D, 26166E/L, 26167A/D, 26167E/L, 26169A/D, 26169E/K, 26170A/D, 26170E/M, 26173A, 26173B/F, 26177A/F, 26178A/E, 26185A/E, 26186A/E, 26187A/D, 26189A/F, 26190A/D, 26192A/B, 26193A/D, 26196A/B, 26197A/B, 26198A, 26199A/B; 26200A, 26201A, 26206A/B, 26212A, 26219A/B, 26231A/B, 26244A, 26251A; 26324A, 26325A, 26326A.
LESTER #?S: 16140, 16151, 16606, 16660, 16664, 16665, 16667, 16668, 17639, 17644, 17648, 18261, 18919, 18939, 19895, 30215, 32004, 32009.
COMPONENTS: Cap – 03409; Contact – 03941.
NOTE: Conversion Terminal Included.

Manufacturer: LUCAS

IAT Product Number: 02420

Original Numbers:?Lucas: TOB100, TOB101, TOB151, TOB152, TOB153, 46490, 76458, 76474, 76490, 76498, 76538, 76540, 76712, 76727, 76794, 76808, 60933122, 60933124; Case: 3062380R91; DAF: 37H1830; Land Rover: RTC460, 532578; Perkins: 28730408; Peugeot: K29619; WAI: 66-9203.

Additional Information: Voltage: 12V, Body OD: 57.0 mm, Cap Design: BOLT-ON, Mount Type: 2 Hole, Mounting Threads: M6 x 1.0, Battery Terminal: 5/16-18, Motor Terminal: 5/16-18, Switch Terminal: Male Spade (LH).

Related Items: S172, S157, S178, S215, 03409, 03941
