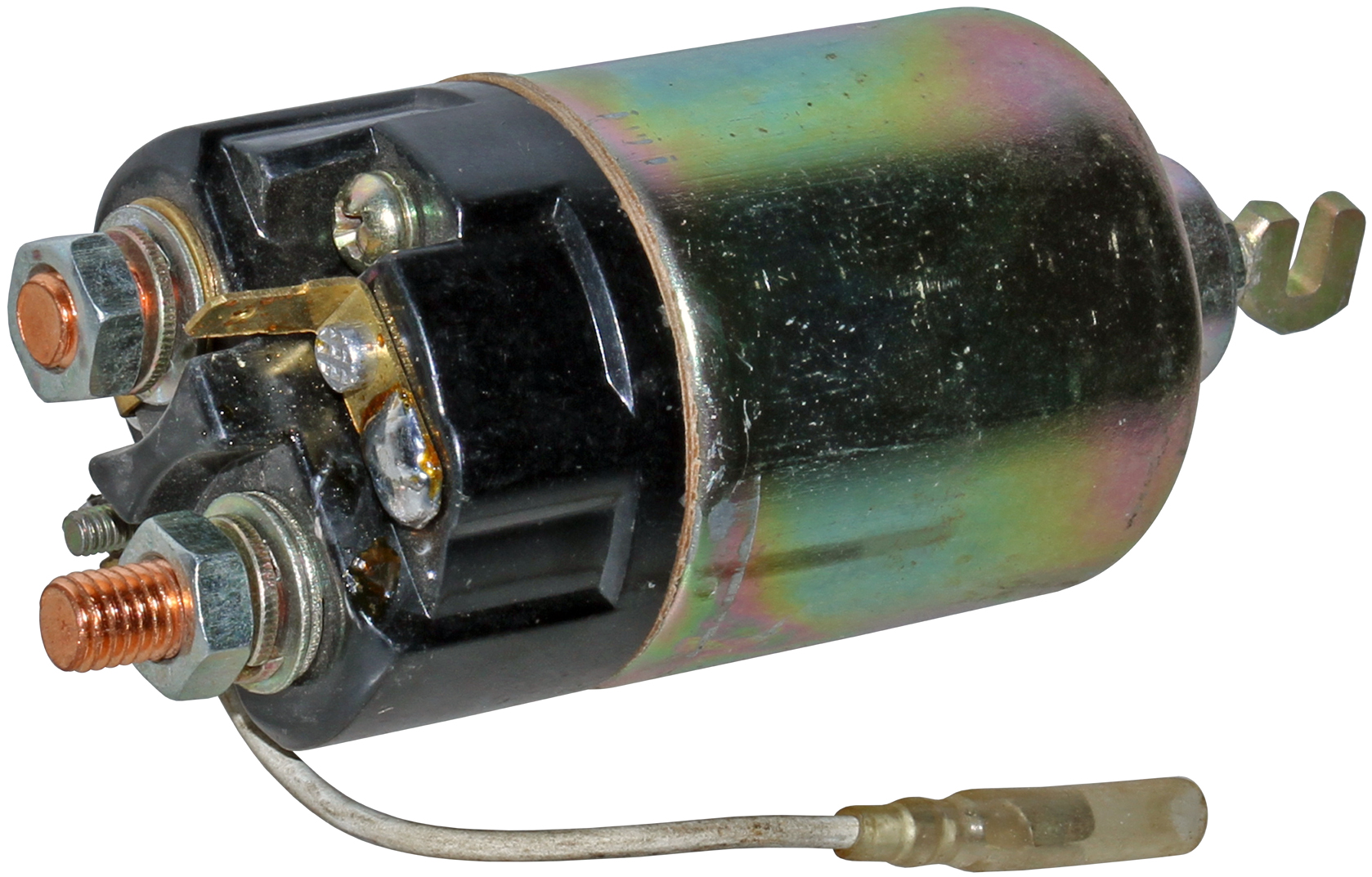

02511 - DENSO DD REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Daihatsu, Ford, IHC, Kubota, Mazda, Subaru, Suzuki, Toyota. Denso DD Starters.

STARTER #?S: 028000-2240, 028000-2330, 028000-2680, 028000-2710, 028000-3360, 028000-3361, 028000-3610, 028000-3611, 028000-3800, 028000-4030, 028000-4040, 028000-4041, 028000-4042, 028000-4050, 028000-4060, 028000-4700, 028000-4810, 028000-4812, 028000-4820, 028000-4860, 028000-5200, 028000-5201, 028000-5210.

LESTER?#S: 16215, 16217, 16218, 16220, 16222, 16223, 16224, 16225, 16230, 16238, 16242, 16246, 16254, 16258, 16259, 16260, 16261, 16264, 16272, 16468, 16594, 16625, 16646, 16648, 16704, 16712, 16764, 16788, 16804.

COMPONENTS: Cap – 03508.

NOTE: Used with Easy Start Wire Lead.

Manufacturer: DENSO

IAT Product Number: 02511

Original Numbers:?Denso: 053400-1150, 053400-1151, 053400-1740, 053400-1810, 053400-1870, 053400-1880, 053400-2120, 053400-2160, 053400-2250, 053400-2550, 053400-2557, 053400-3000, 053400-3010, 053400-3340, 053400-3370, 053400-3710, 053400-3810; Lucas: TOJ401; Daihatsu: 28150-13011; Kubota: 15231-63020, 15231-63021; Toyota: 28150-12030, 28150-12031, 28150-23010, 28150-23011, 28150-24010, 28150-33021, 28150-36050, 28150-36051, 28150-41020, 28150-46020, 28150-60060; Suzuki: 31220-79611; WAI: 66-8203.

Additional Information: Voltage: 12V, Body OD: 50.0 mm, Cap Design: BOLT-ON, Mount Type: 2 Hole, Mounting Threads: M6 x 1.0, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade, Relay Terminal: M4 x 0.7 Post w/ Lead.

Related Items: 03508
