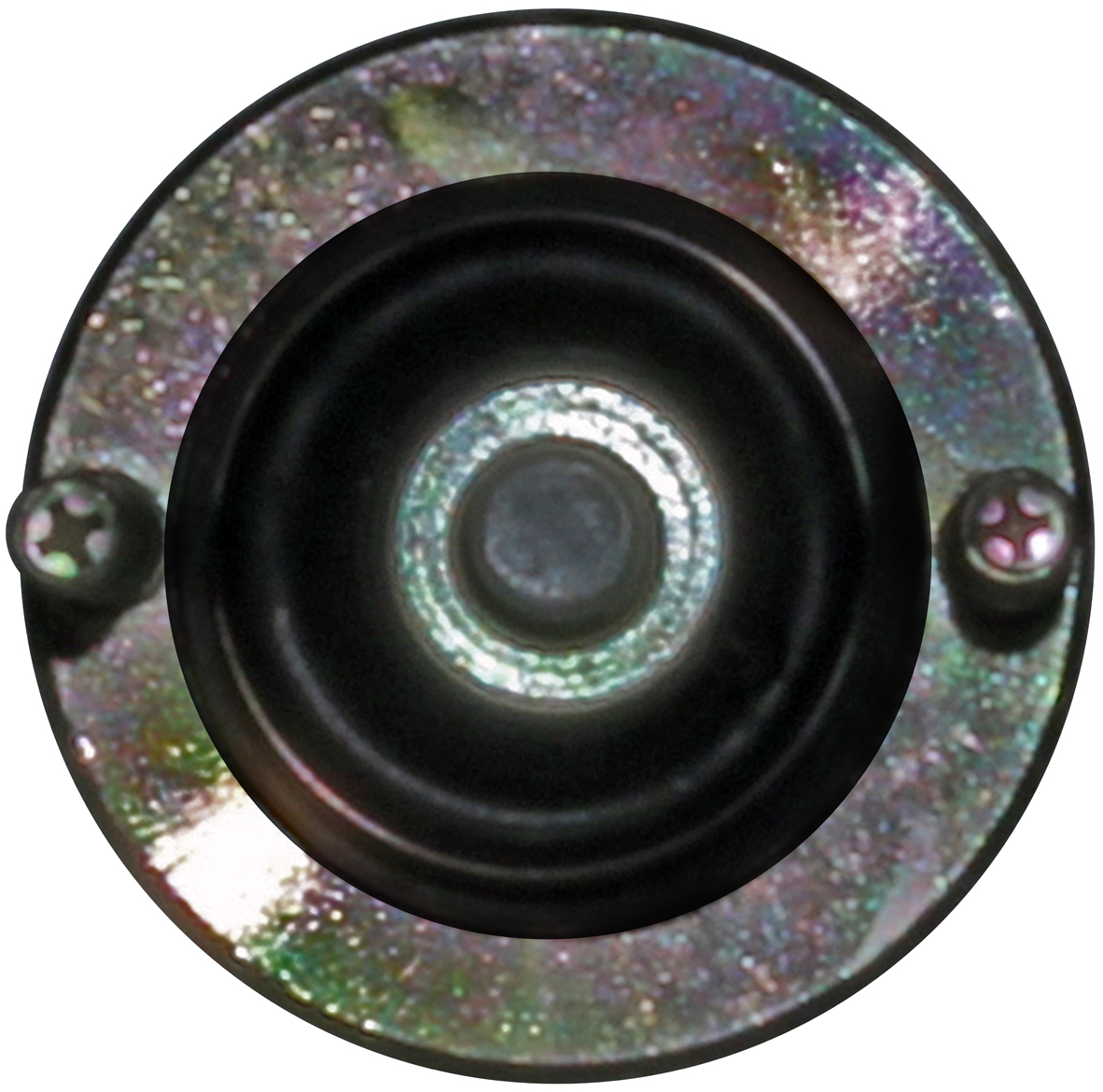

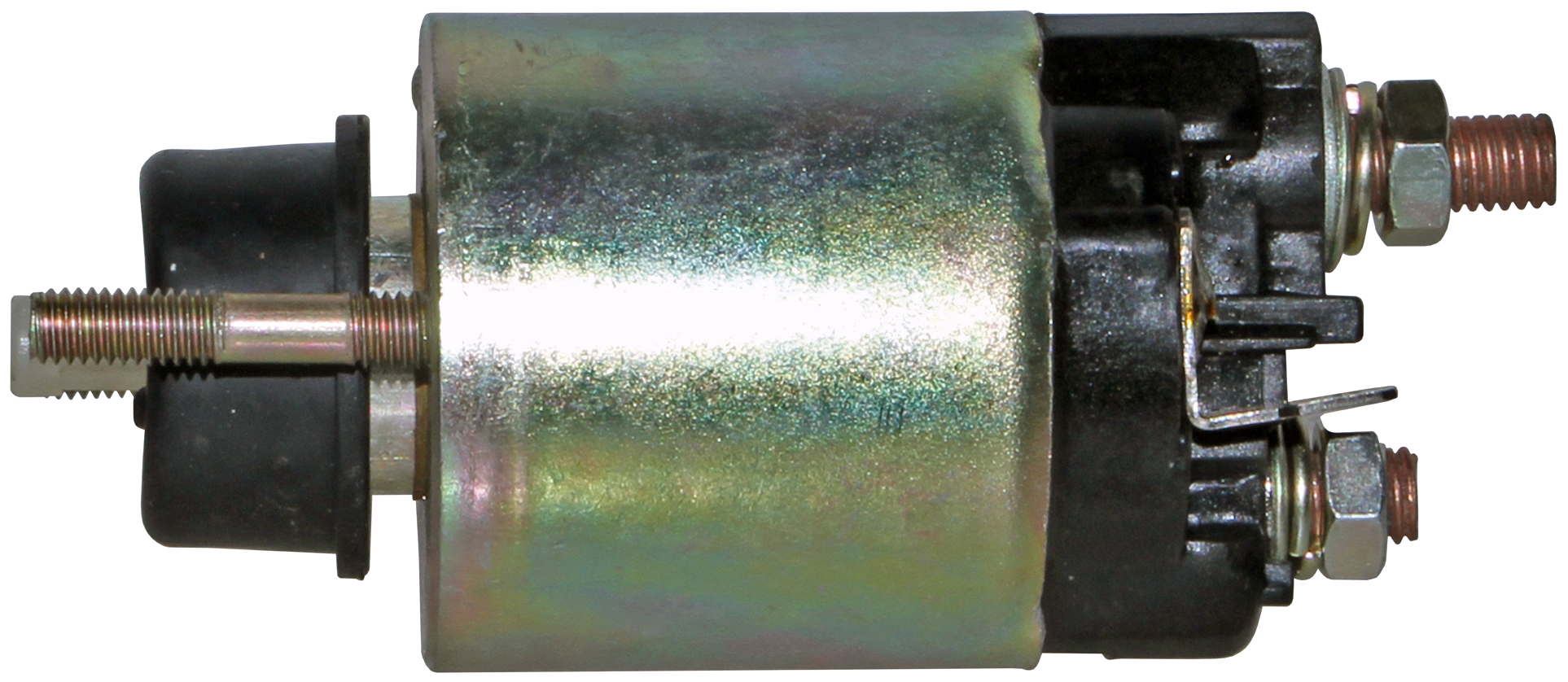

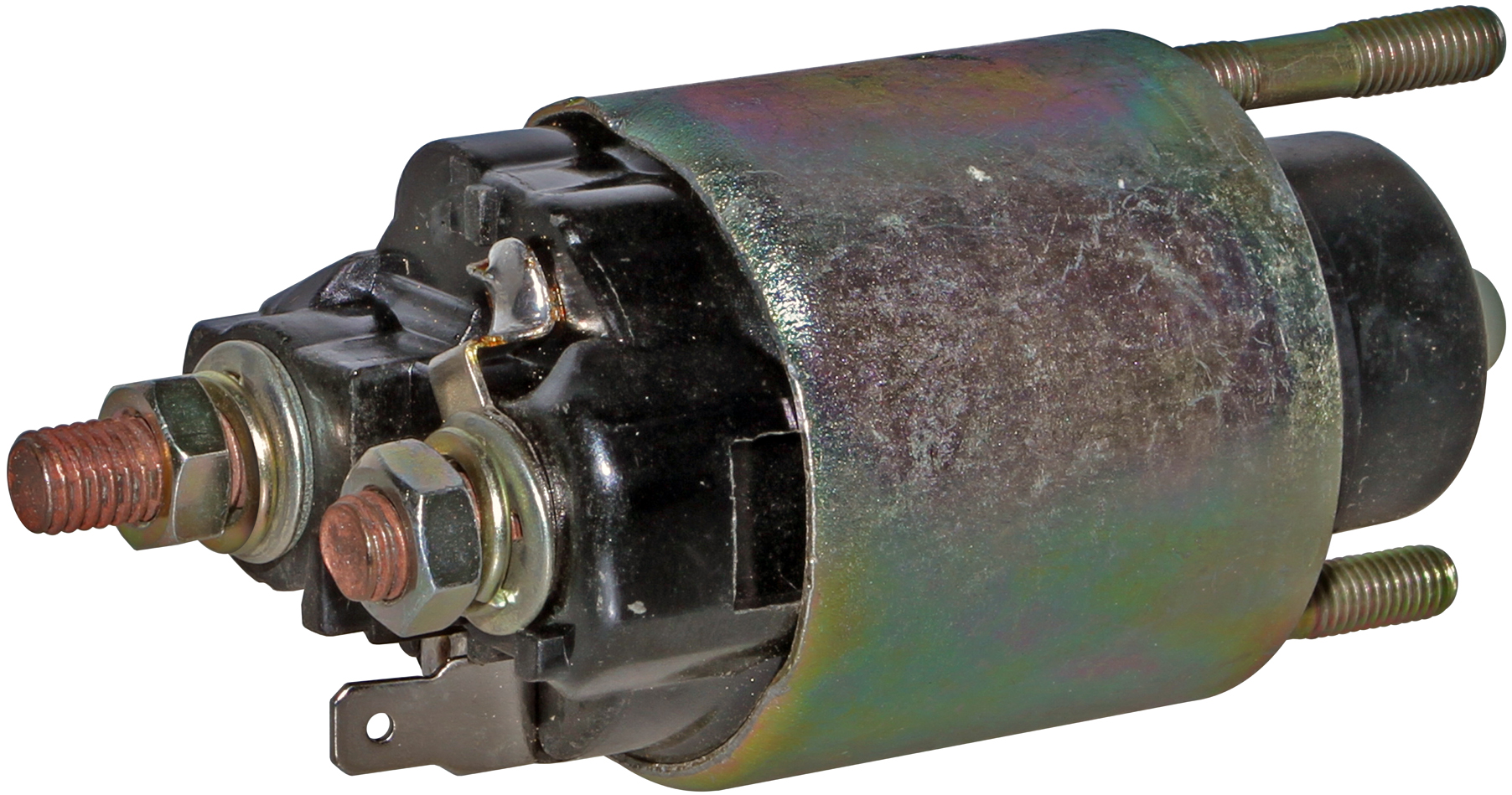

02515 - DENSO DD REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS:? Carrier, Chevrolet, Ford, Freightliner, GM, Isuzu, Ishikawajima, Jackobsen Lawn Tractor, John Deere, Kawasaki, Komatsu, Kubota, Lexus, Mazda, New Holland, Onan, Scion, Subaru, Suzuki, Toro, Toyota, Toyota Lift Trucks. Denso DD Starters.

STARTER #’S: 028000-3610, 028000-5330, 028000-5331, 028000-5332, 028000-5334, 028000-5335, 028000-5336, 028000-5720, 028000-5750, 028000-5751, 028000-6330, 028000-6380, 028000-6381, 028000-6382, 028000-6383, 028000-6384, 028000-6385, 028000-6390, 028000-6391, 028000-6393, 028000-6396, 028000-6490, 028000-6491, 028000-6492, 028000-6493, 028000-6494, 028000-6520, 028000-6650, 028000-6651, 028000-6800, 028000-6802, 028000-6803, 028000-6810, 028000-6811, 028000-6812, 028000-6813, 028000-6820, 028000-6821, 028000-6822, 028000-6823, 028000-7090, 028000-7091, 028000-7092, 028000-7093, 028000-7130, 028000-7131, 028000-7132, 028000-7133, 028000-7290, 028000-7330, 028000-7331, 028000-7332, 028000-7460, 028000-7461, 028000-7462, 028000-7470, 028000-7471, 028000-7472, 028000-7480, 028000-7481, 028000-7510, 028000-7720, 028000-7760, 028000-7780, 028000-7980, 028000-7981, 028000-8040, 028000-8590, 028000-9080, 028000-9110, 028000-9111, 028000-9112, 028000-9113, 028000-9240, 028000-9360, 028000-9361, 028000-9440, 028000-9490, 028000-9500, 028000-9501, 028000-9570, 028000-9680, 028000-9810, 028000-9900, 028000-9901, 028000-9902, 128000-1070, 128000-1200, 128000-1210, 128000-1610, 128000-1620, 128000-1621, 128000-1890, 128000-1950, 128000-1951, 128000-2050, 128000-2430, 128000-2431, 128000-2530, 128000-2540, 128000-2550, 128000-2551, 128000-2810, 128000-2860, 128000-2861, 128000-2862, 128000-3570, 128000-3610, 128000-4530, 128000-4531, 128000-4532, 128000-5650, 128000-6230, 128000-6240, 128000-6750, 128000-7070, 128000-8130, 228000-3380, 228000-3381, 228000-5480.

LESTER:? 16218, 16221, 16245, 16261, 16468, 16468, 16707, 16766, 16804, 16832, 16838, 16879, 16915, 16922, 16971, 17000, 17058, 17152, 17278, 17350, 17354, 17355, 17364, 17565, 18000, 18183, 30495, 30511, 30546, 30600, 31298, 31299, 31337, 32053, 33028.

COMPONENTS: Cap – 03529, Contact – 03978.

Manufacturer: DENSO

IAT Product Number: 02515

Original Numbers: Denso: 053400-3840, 053400-3890, 053400-3892, 053400-3931, 053400-3932, 053400-4430, 053400-4431, 053400-4432, 053400-5050, 053400-5240, 053400-7220, 053400-7910; Daihatsu: 28150-37010-000, 28150-87704-000, 28150-87712-000; GM: 94151210, 96051963, 96054063; Ford: E17Z-11390A; Isuzu: 8-94151-210-0; Kubota: 14278-63021, 14278-63022, 15231-63022; Motorcraft: SWE-1719; Subaru: 49210-5602, 49210-7002, 89210-4122; Suzuki: 31220-78210; Toyota: 28150-15010, 28150-15011, 28150-15012, 28150-15013, 28150-37010, 28150-87704; WAI: 66-8205.

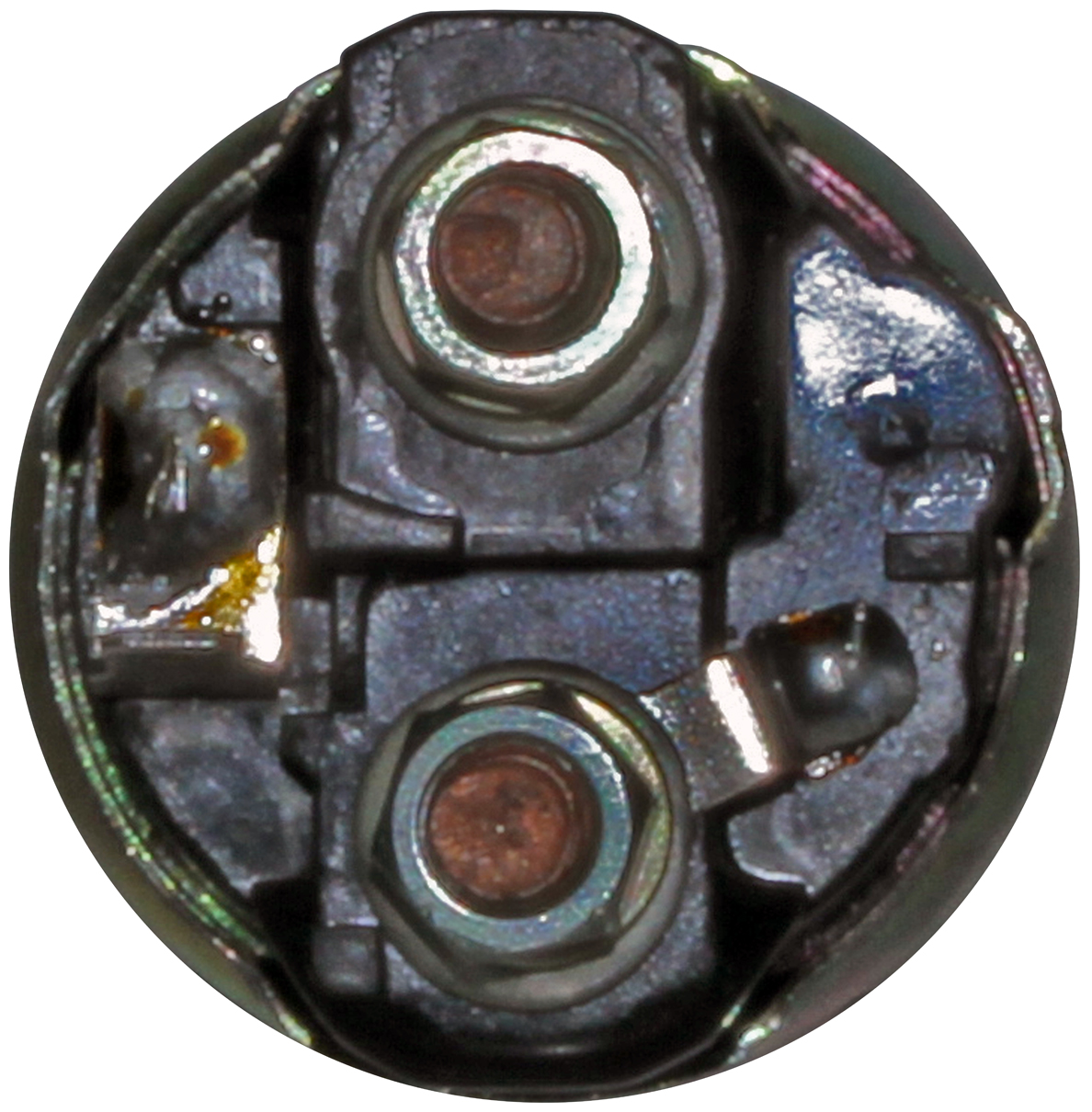

Additional Information: Voltage: 12V, Body OD: 50.0 mm, Plunger Type: NON-REMOVABLE, Cap Design: CRIMPED, Mount Type: 2 Hole, Mounting Threads: M6 x 1.0, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade.

Related Items: 03529, 03978
