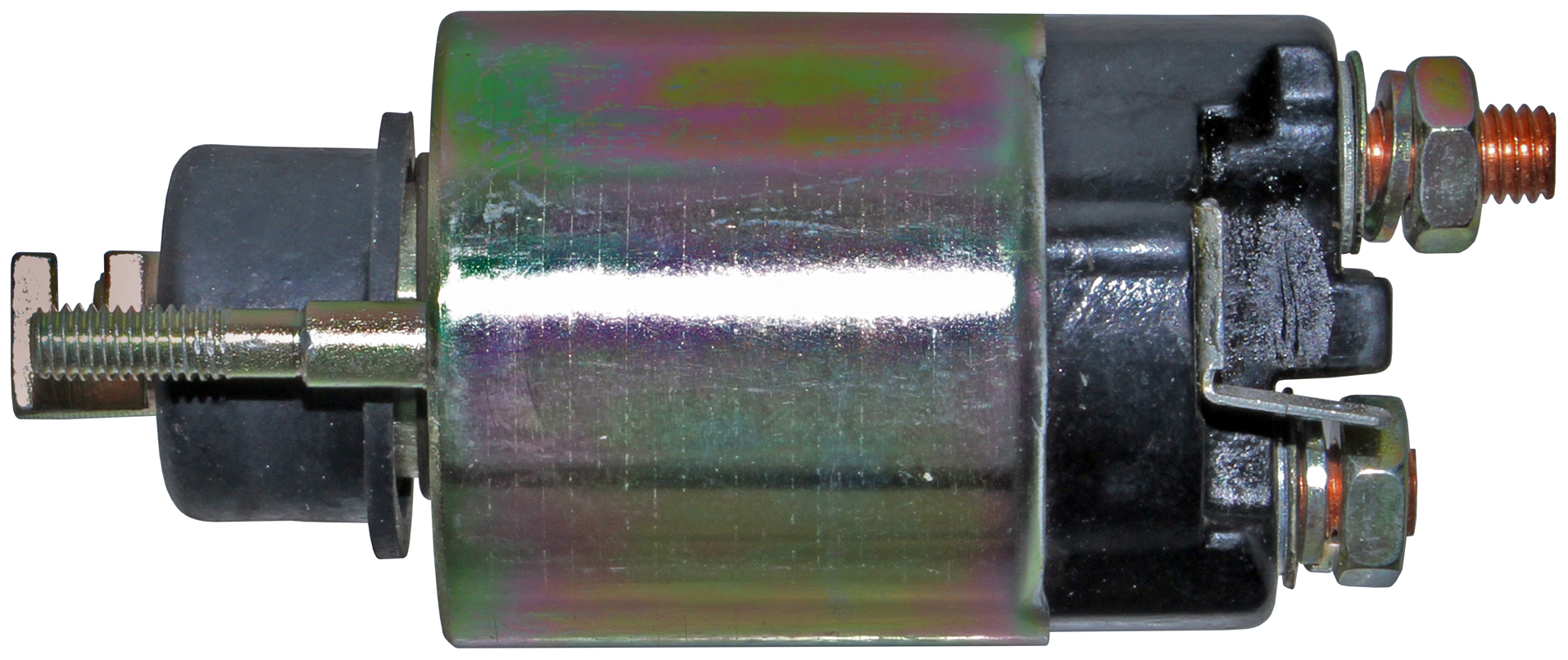

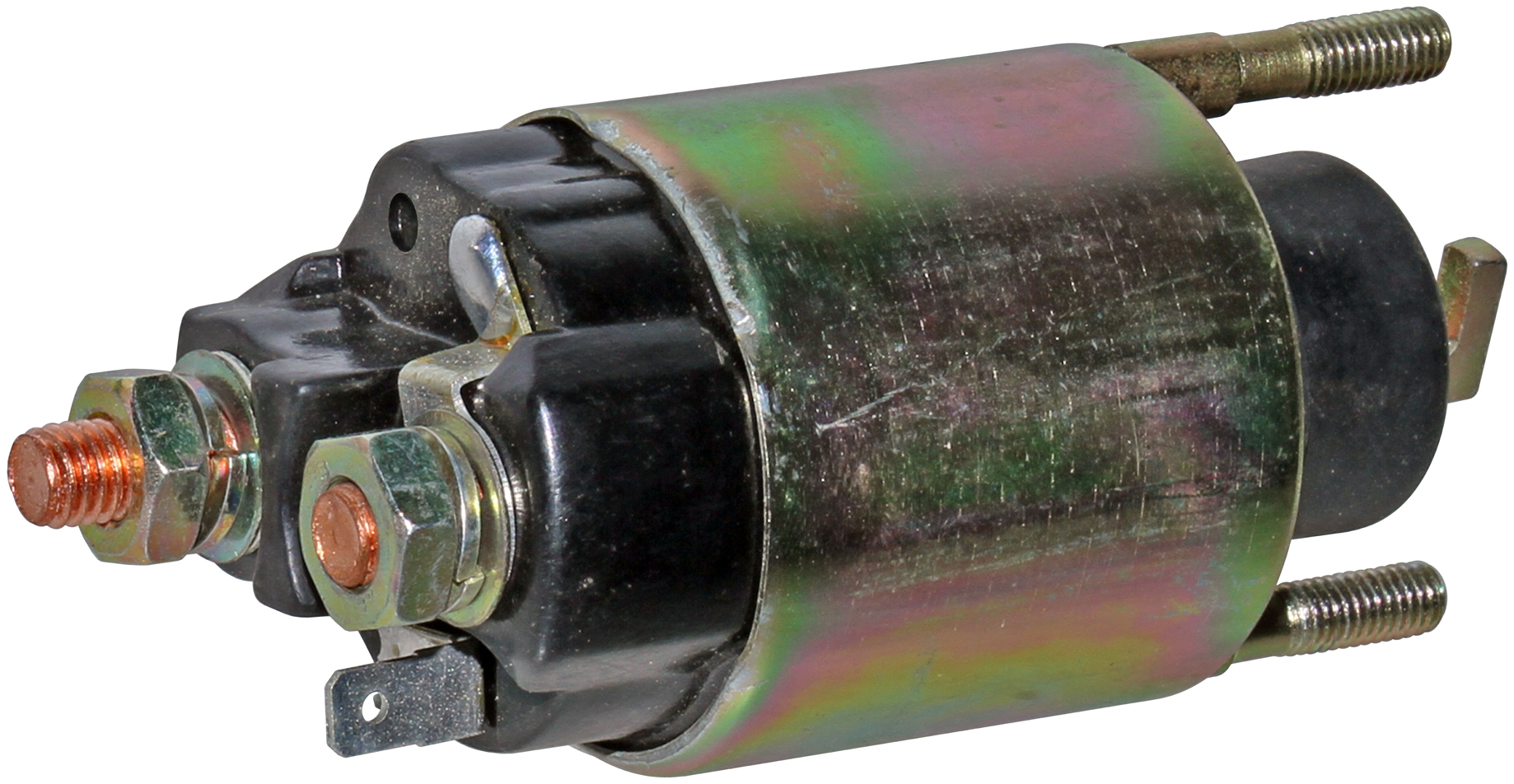

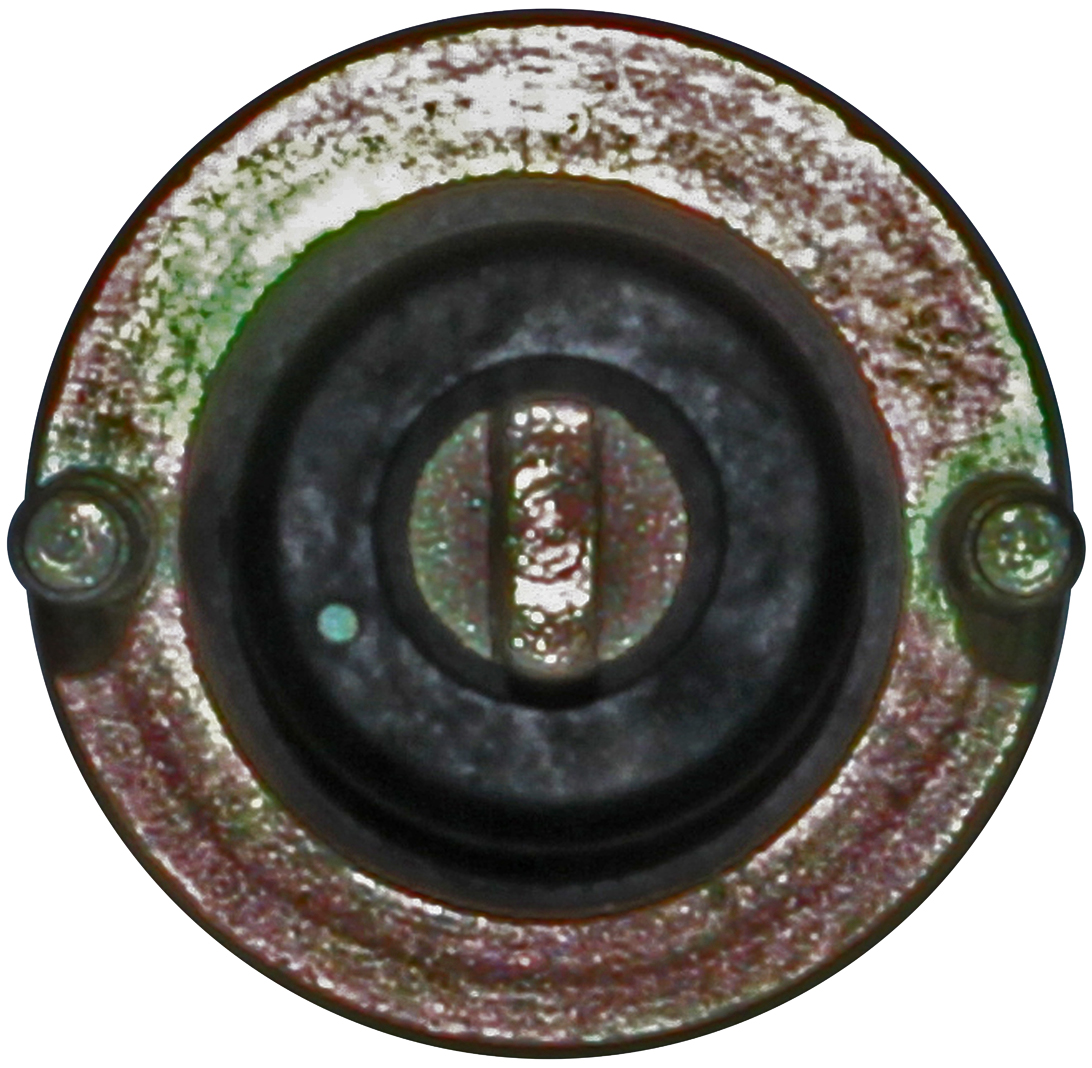

02516 - DENSO DD REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Honda Civic 1.3L / 1.5L / CRX 1.5L / Accord, Chevrolet / Geo / Isuzu 1.5L, TCM Lift Trucks. Denso 0.7 -0.8 Kw DD Starters.

STARTER #’S: 028000-8010, 028000-8690, 028000-8700, 028000-9100, 028000-9930; 128000-0290, 128000-0370, 128000-0670, 128000-1300, 128000-1310, 128000-1311, 128000-4670, 128000-4671, 128000-4710, 128000-5230, 128000-6120, 128000-6121, 128000-6130, 128000-6131, 128000-6140, 128000-6141, 128000-9130, 128000-9180, 128000-9540.

LESTER: 16735, 16843, 16879, 16880, 16883.

COMPONENTS: Cap – 03529, Contact – 03978.

Description

Manufacturer: DENSO

IAT Product Number: 02516

Original Numbers: Denso: 053400-5280, 053400-5282, 053400-5290, 053400-5292, 053400-7221; WAI: 66-8209-1; Isuzu: 8-94151-210-0, 8-94151-210-1; Honda: 31204-PA5-911, 31204-PA5-991, 31204-PC1-004, 31204-PC1-024.

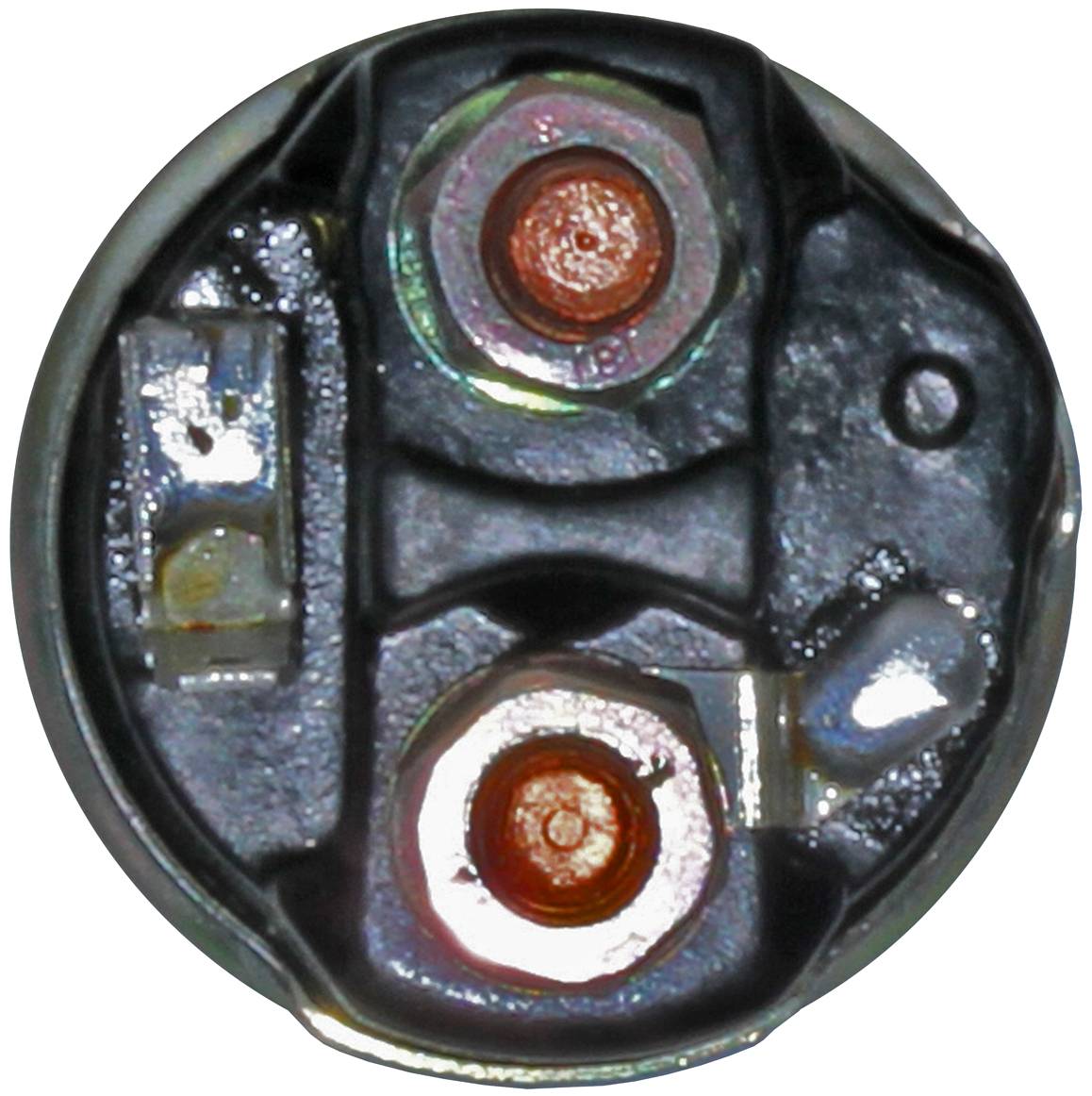

Additional Information:?Voltage: 12V, Body OD: 50.0 mm, Plunger Type: NON-REMOVABLE, Cap Design: CRIMPED, Mount Type: 2 Hole Mtg. Stud, Mounting Threads: M6 x 1.0, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade (LH).

Related Items: 03529, 03978
