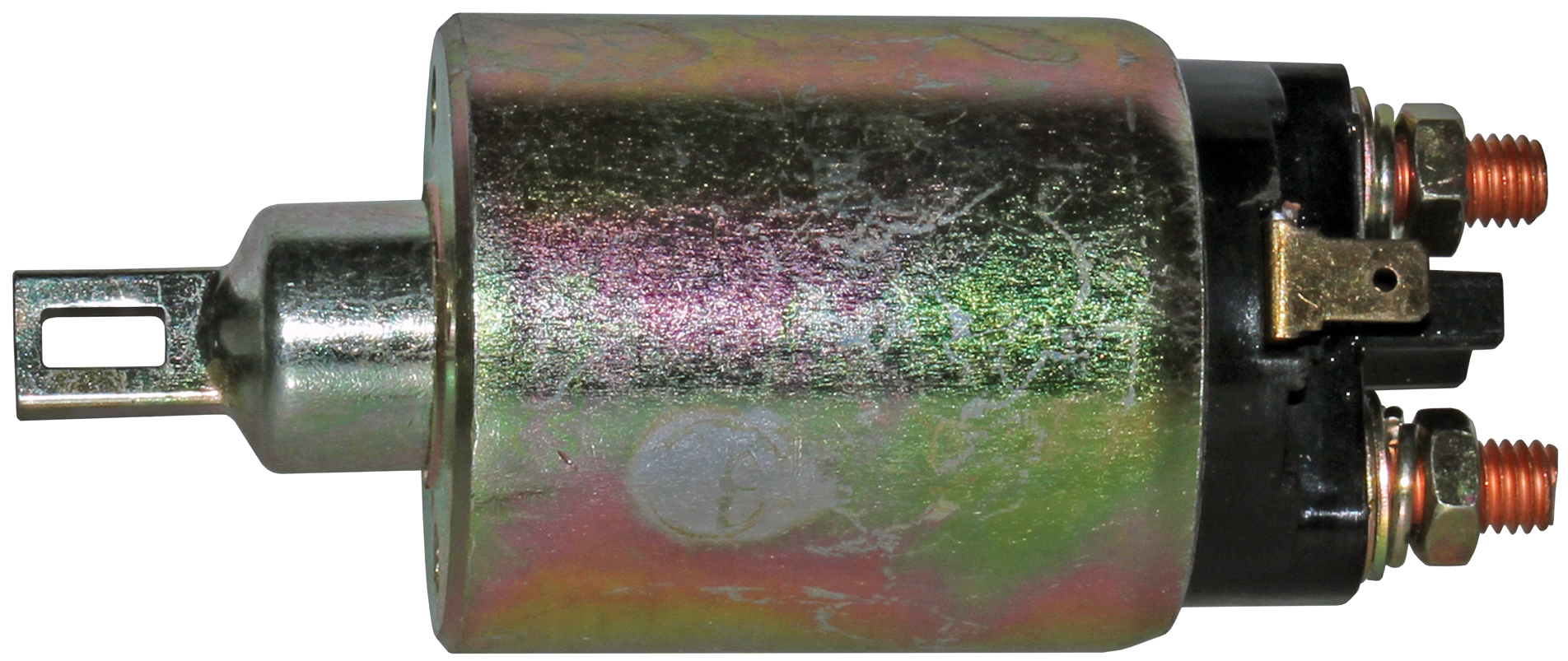

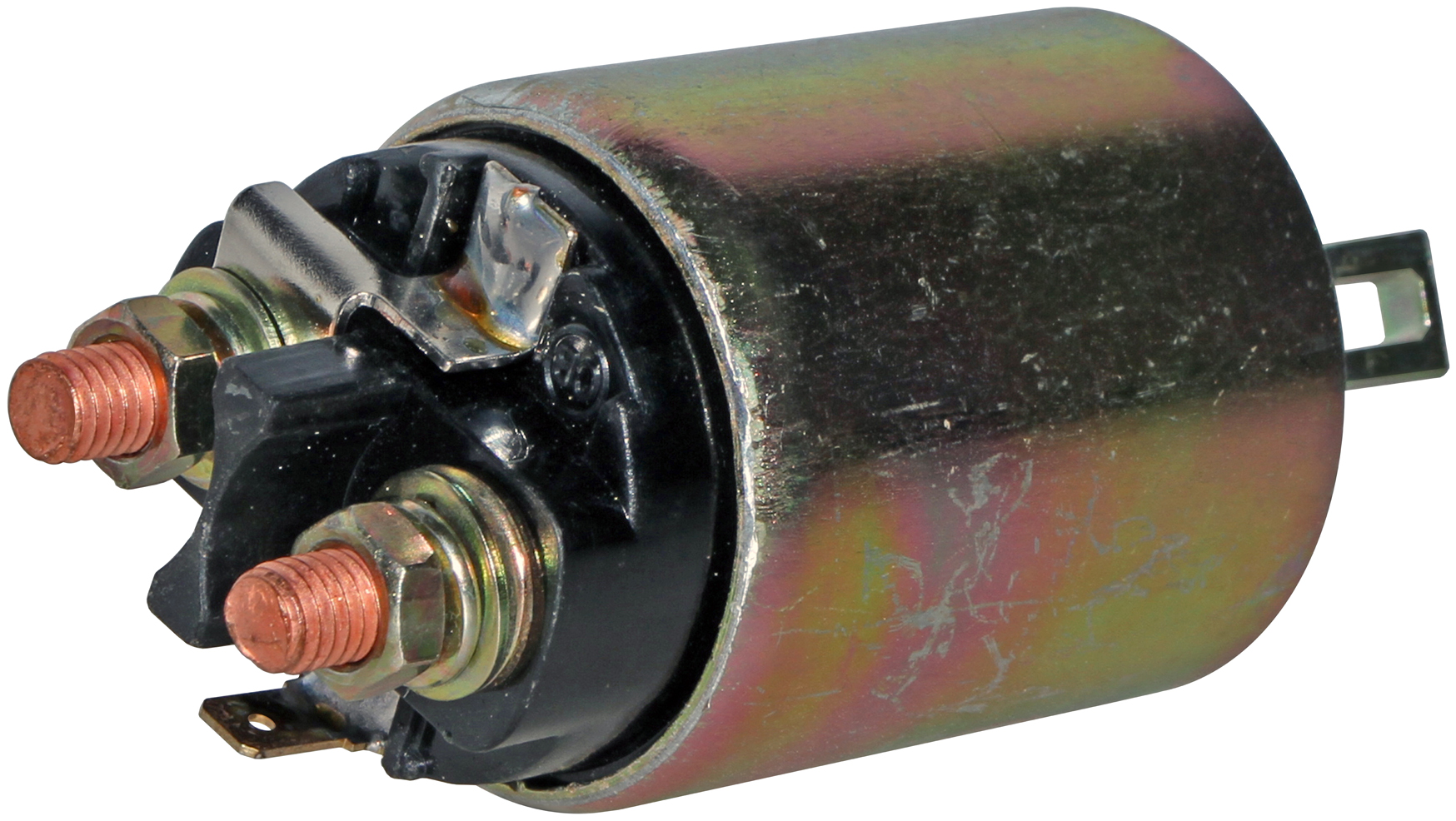

02561 - MITSUBISHI REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Barret, Case, C-Iton, Chrysler, Dodge, Komatsu, Mazda, Mitsubishi, Nissan, Nissan Forklifts, Plymouth, TCM Lift Trucks. Mitsubishi DD / OSGR Starters.

STARTER #?S: M2T10171, M2T23181, M2T50471, M2T50581, M2T50585, M2T50981, M2T52671, M2T52681, M2T53081, M2T53082, M2T53083, M2T54086; M3T10672, M3T26081, M3T29481, M3T36081; M4T18171; MCA02-0, MEA07-1, MEA95-0.

LESTER #?S: 16203, 16211, 16268, 16573, 16671, 16717, 16720, 16775, 16805, 16855, 16856, 17172, 17173, 19235.

COMPONENTS: Cap – 03515, Mobile Contact – 03925, Stationary Contact – 03980.

NOTES: Contact Surface is 7.8 mm from Bottom. Cap Position Opposite to Solenoid # 02501.

Manufacturer: MITSUBISHI

IAT Product Number: 02561

Original Numbers:?Mitsubishi: M371X00272, M371X00382, M371X17271, M371X34471, M371X35071, M371X36271, M371X54671, M371X54771, M371X55072, MD607412, MD607933, SB172, SB350, SB541, SB541F, SB546, SB593; Mazda: 1757-24-760, 8872-24-736, N202-18-X10, N226-24-760; Nissan: 23343-13501, 23343-B5010, 23343-B5011, 23343-E3011, 23343-E5011, 23343-E5011, 23343-M8010; WAI: 66-8302.

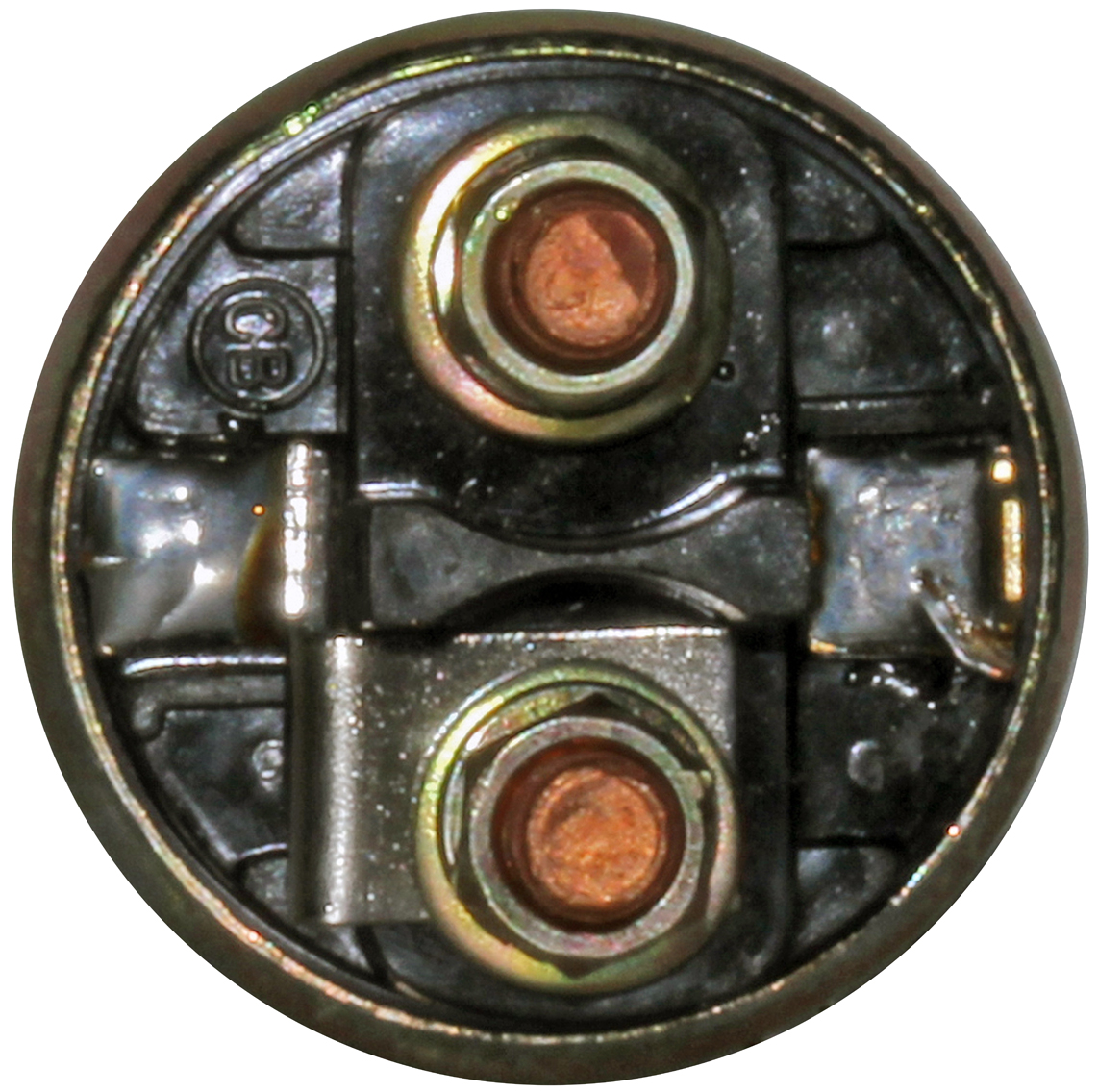

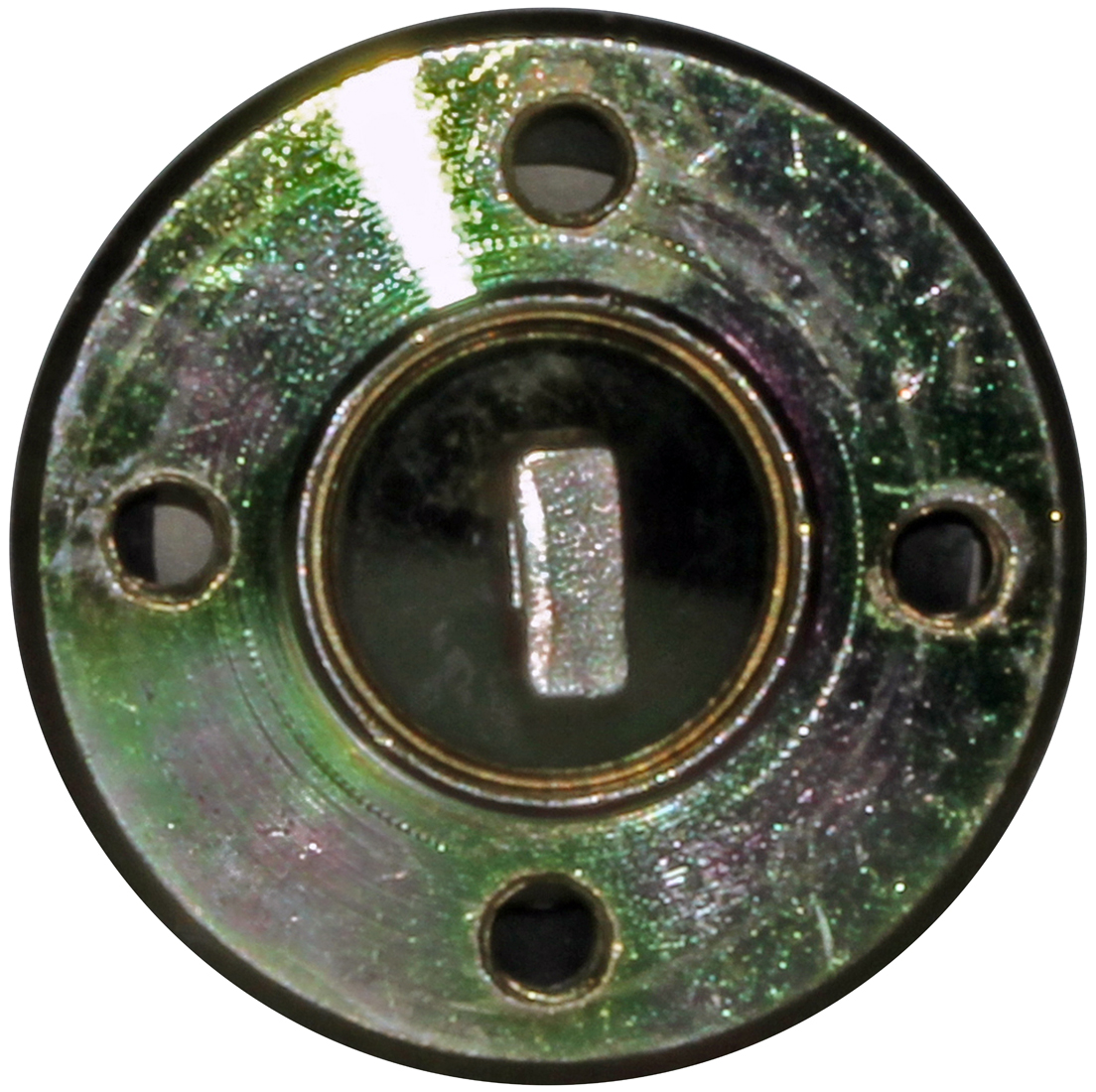

Additional Information: Voltage: 12V, Body OD: 52.0 mm, Cap Design: CRIMPED, Plunger Type: REMOVABLE, Mount Type: 3 Hole, Mounting Threads: M6 x 1.0, Battery Terminal: M8 x 1.25 (LH), Motor Terminal: M8 x 1.25 (RH), Switch Terminal: Male Spade.

Related Items: 03515, 03925, 03980
