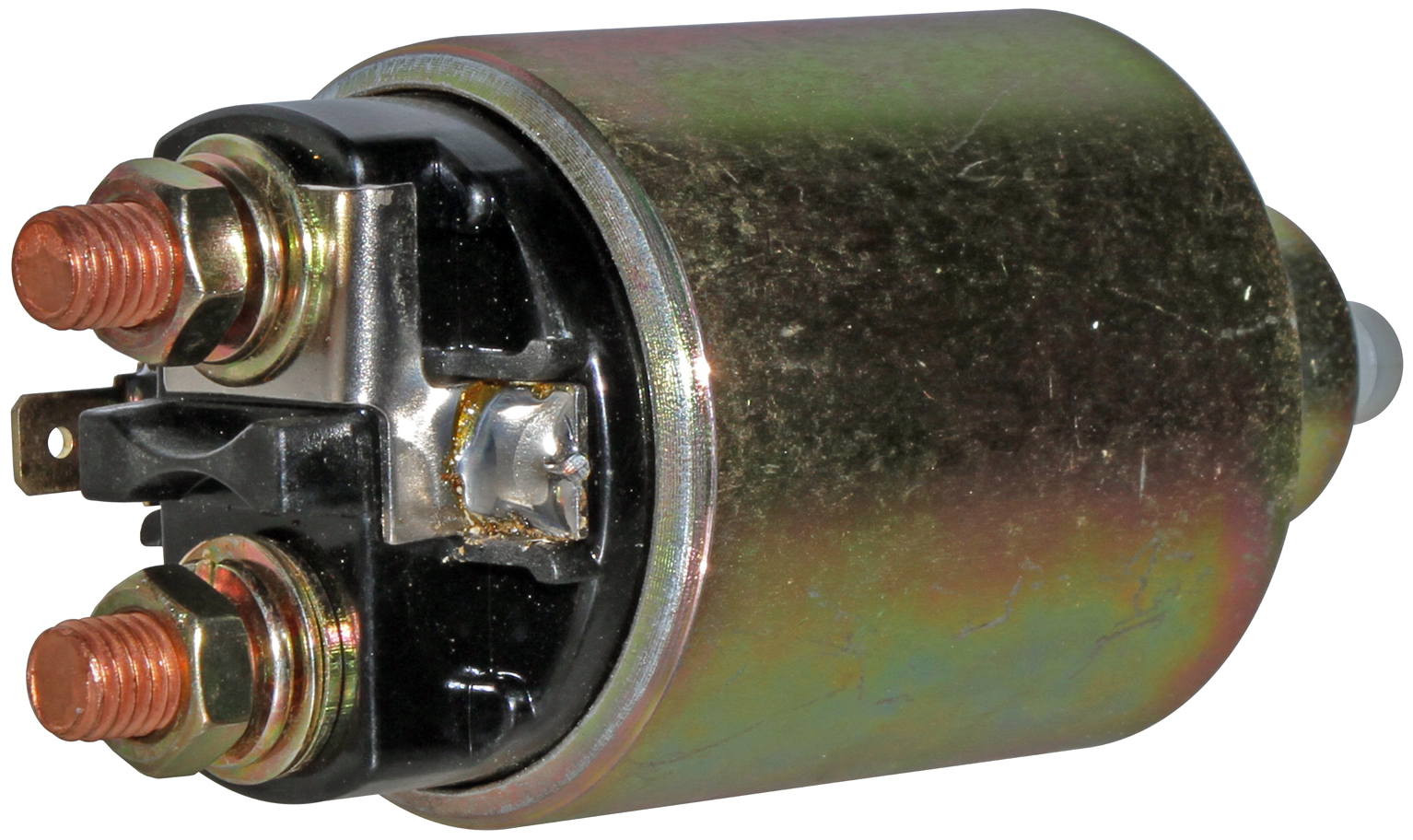

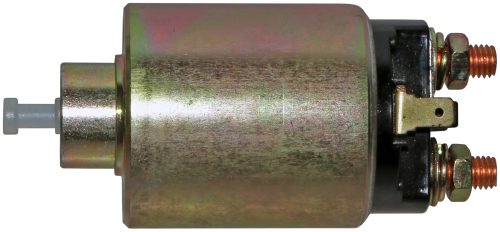

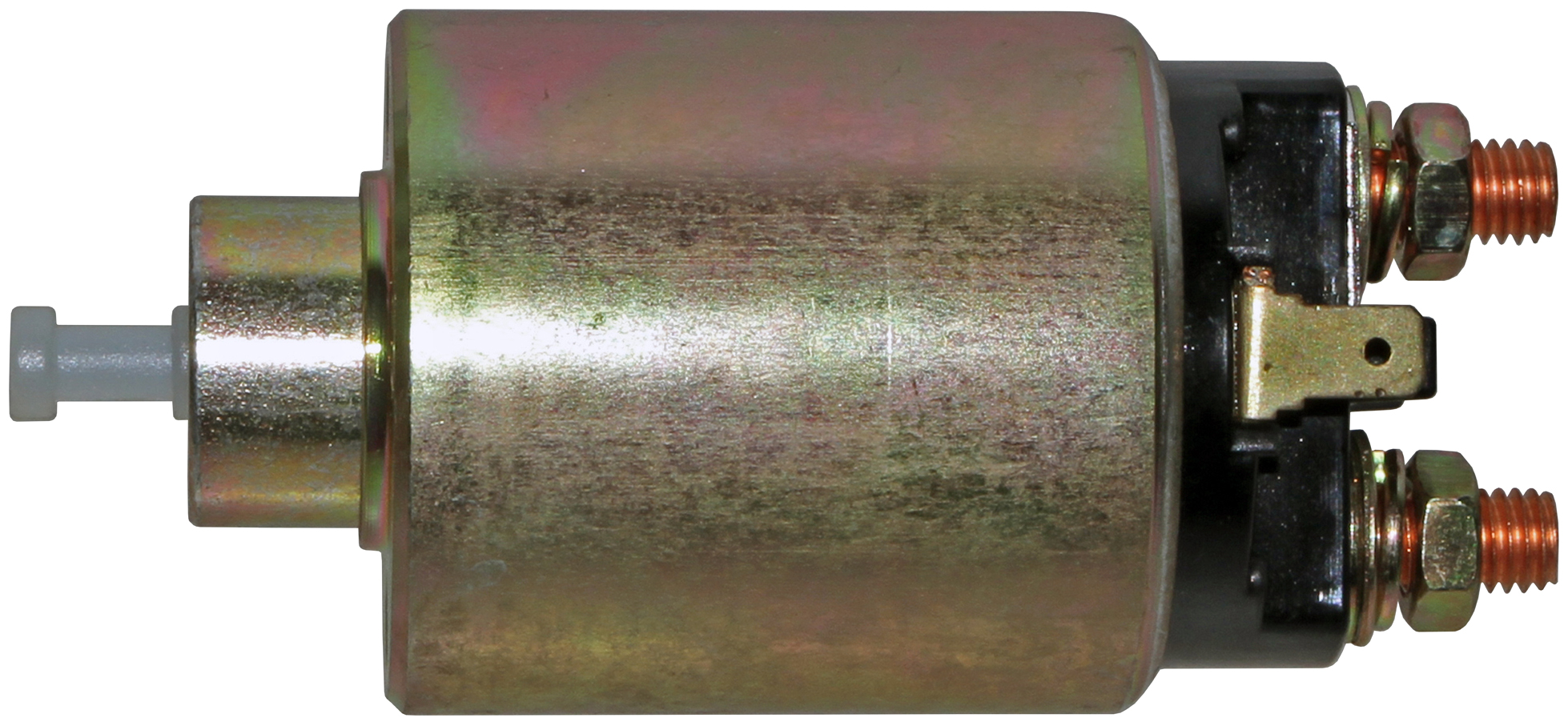

02567 - MITSUBISHI REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Chrysler, Dodge, Ford, Hyster Lift Trucks, Hyundai Sonata 3.0L, Infiniti G20, Jeep, John Deere Tractors, Kia Sorento 3.5L, Mazda, Mitsubishi, New Holland Skid Steers, Nissan, Onan Engines, Toro Tractors, Yale Lift Trucks. Mitsubishi DD / PMGR Starters.

STARTER #?S: M0T82381ZC, M0T83481A, M0T84381A, M0T87581, M0T91082ZC, M0T91182, M0T91182ZC, M0T91881ZC, M0T92081ZC, M0T92082ZC; M1T70781, M1T70881, M1T71381,M1T 71781A,M1T 72081, M1T72981, M1T73281, M1T73283, M1T74181A, M1T74381A, M1T75181A, M1T75581, M1T77081, M1T78381, M1T78481, M1T95081, M1T96081, M1T96581, M1T96681; M2T20181D, M2T30981, M2T32581, M2T41181, M2T43581, M2T47781; M3T27781D, M3T29482D, M3T37081, M3T37781.

LESTER #?S: 11713, 16211, 16579, 16775, 16805, 16930, 16931, 16932, 16987, 17131, 17133, 17151, 17221, 17246, 17291, 17312, 17333, 17448, 17470, 17557, 17566, 17599, 17686, 17765, 17772, 17810, 17862, 17866, 17879, 17882, 17929, 17991, 18096, 19025, 19164, 31338, 33267.

COMPONENTS: Cap – 03517; Mobile Contact – 03924; Stationary Contact – 03980.

NOTES: Contact Surf. is 4.8 mm from Bottom. Replaced 02571.

Manufacturer: MITSUBISHI

IAT Product Number: 02567

Original Numbers:?Mitsubishi: M371X64271, M371X64273, M371X64373, M371X64471, M371X64871, M371X64971, M371X65071, M371X66271, M371X66571, M371X69371, M371X69671, M371X72371, M371X72771, M371X74271, M371X92371; MD611040, MD611591, MD618580, MD618943; SB641, SB642, SB642M,
SB644, SB648, SB649, SB662, SB696P; Ford: F32Z-11390-C; Hyundai: 36120-35000; Mazda: N326-18-X10, JE26-18-X10, JF01-18-X10, K805-18-X10; Motorcraft: SWE-2359; Nissan: 23343-01N10, 23343-M8210, 23343-T5001; WAI: 66-8327.

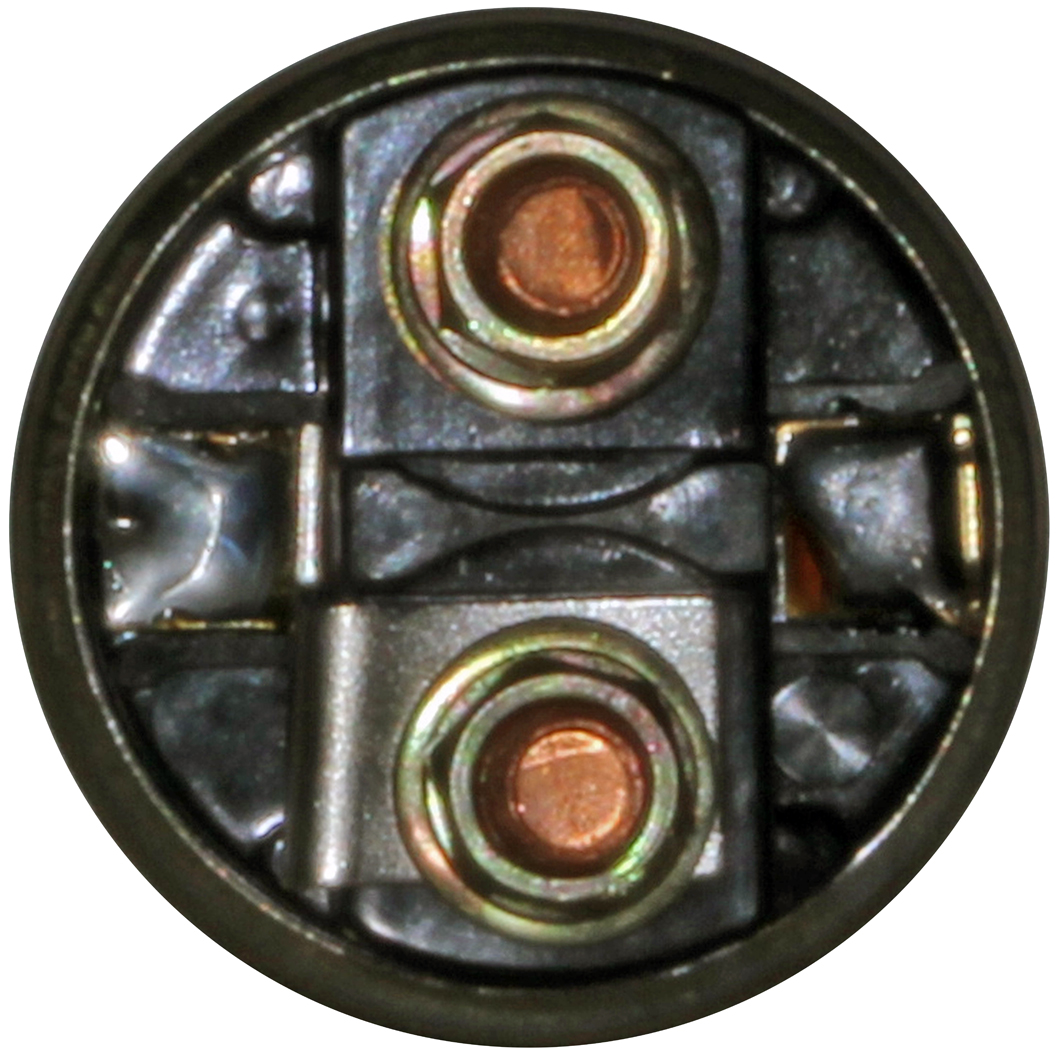

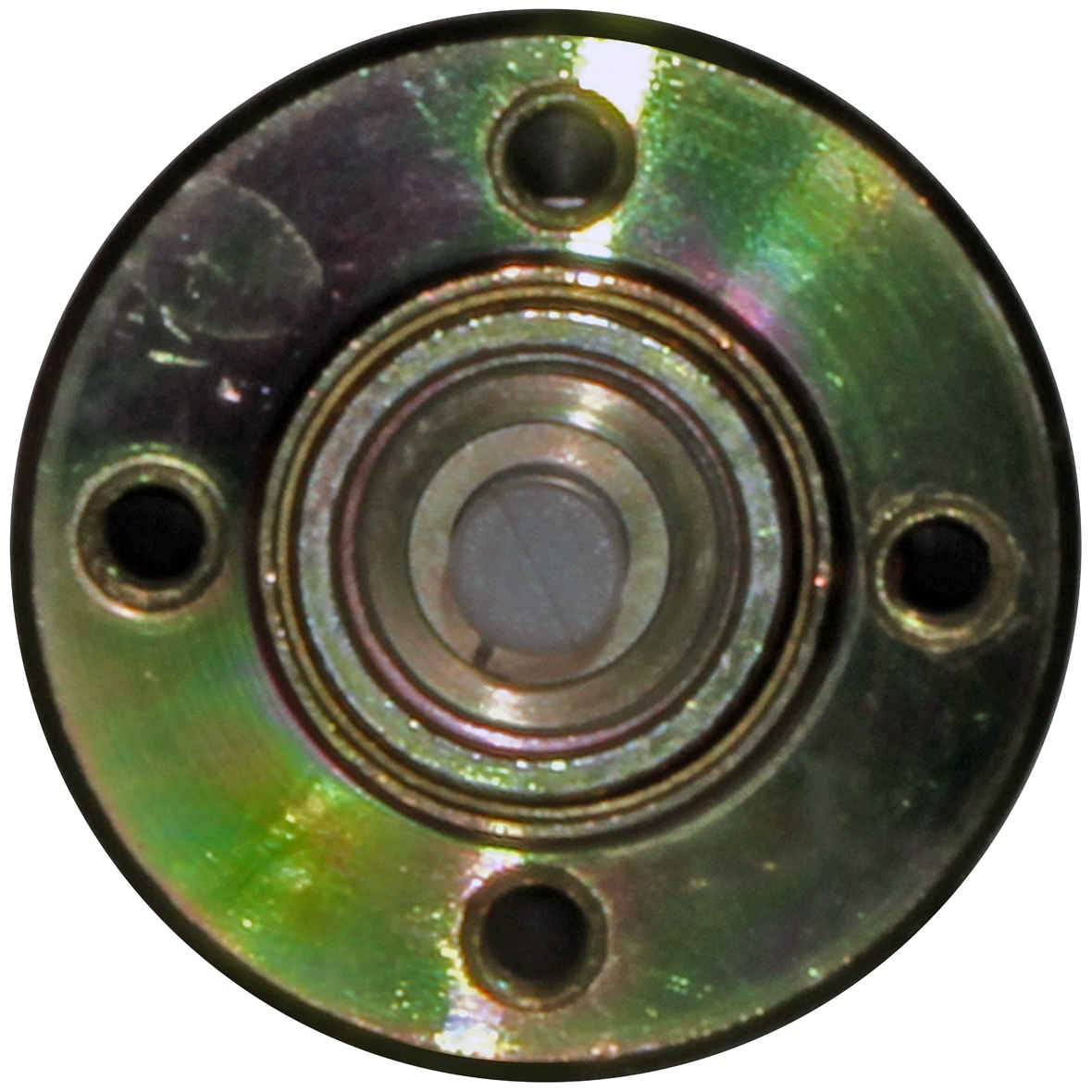

Additional Information: Voltage: 12V, Body OD: 51.0 mm, Cap Design: CRIMPED, Plunger Type: REMOVABLE, Mount Type: 2 Hole, Mounting Threads: M6 x 1.0, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade (RH).

Related Items:? 03517, 03924, 03980
