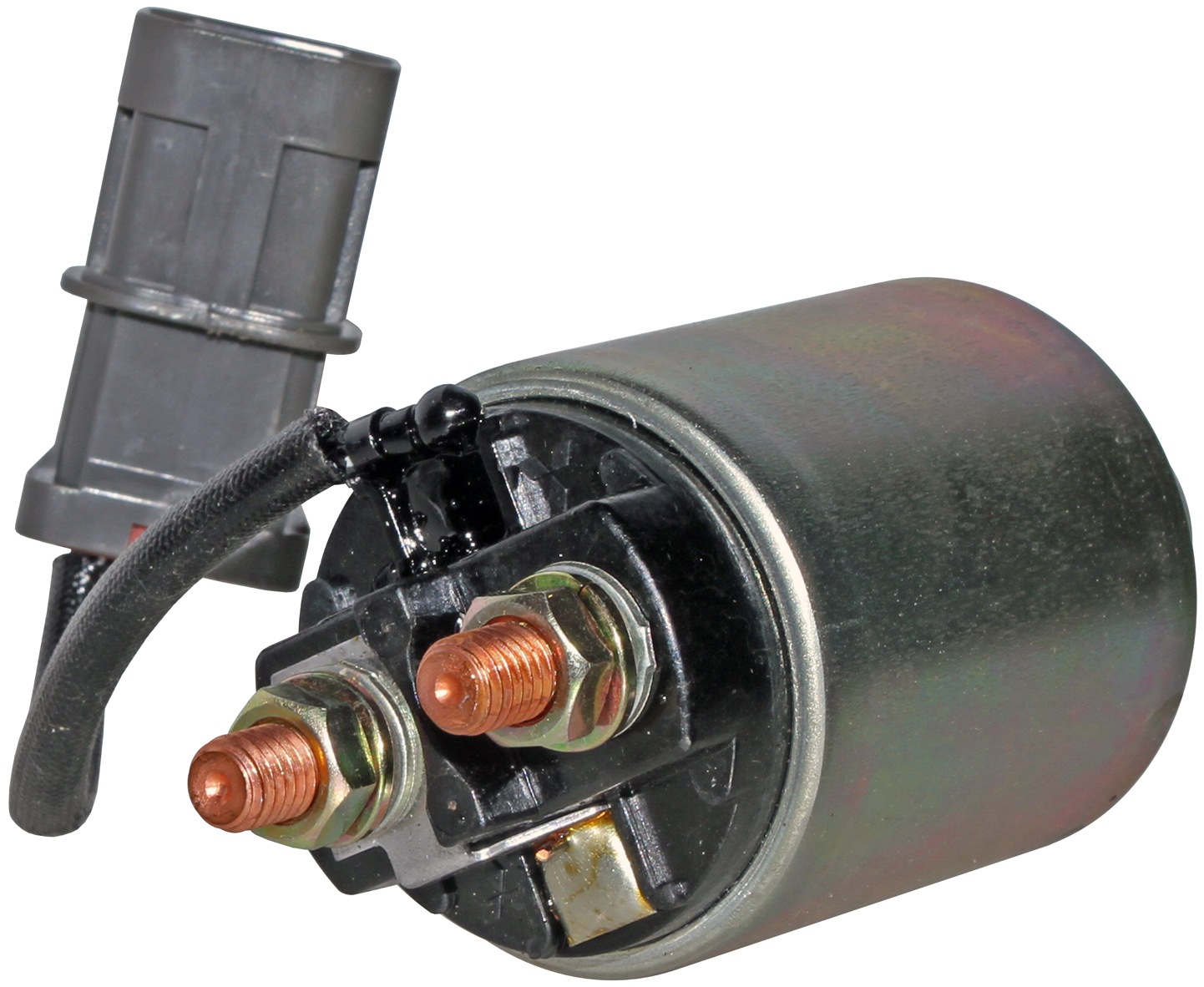

02568 - MITSUBISHI 1.4 KW PMGR REPLACEMENT STARTER SOLENOID

Product Information:

APPLICATIONS: Mazda, Nissan, Nissan Lift Trucks. Mitsubishi 1.4 kw PMGR Starters.

STARTER #?S: M1T70685, M1T70686, M1T70687, M1T70985, M1T71081, M1T71581, M1T71681, M1T75381.

LESTER #?S: 16874, 16900, 16998, 17133, 18095.

COMPONENTS: Mobile Contact – 03924; Stationary Contact – 03980; Plug – 14560.

NOTES: Contact Surface is 4.8 mm from Bottom of Cap.

Manufacturer: MITSUBISHI

IAT Product Number: 02568

Original Numbers:?Mitsubishi: M371X68771, M371X68971, M371X69671, M371X77771, SB663, SB687, SB689, U-2902; Mazda: JE26-18-X10; Nissan: 23343-22P71, 23343-57M70, 23343-57M75;

Additional Information: Voltage: 12V, Body OD: 51.0 mm, Cap Design: CRIMPED, Plunger Type: REMOVABLE, Mount Type: 2 Hole, Mounting Threads: M6 x 1.0, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade with Lead.

Related Items: 03924, 03980, 14560
