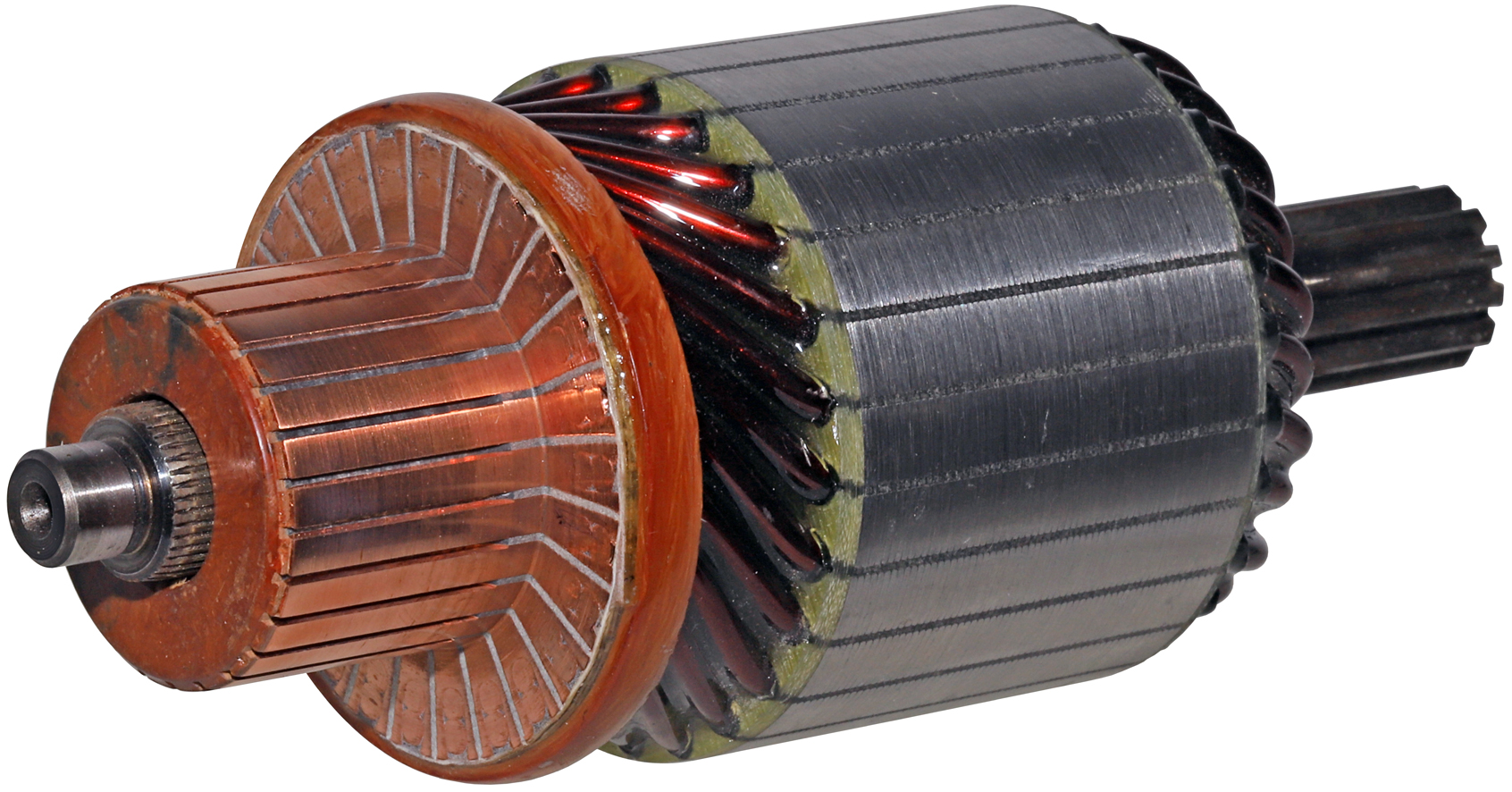

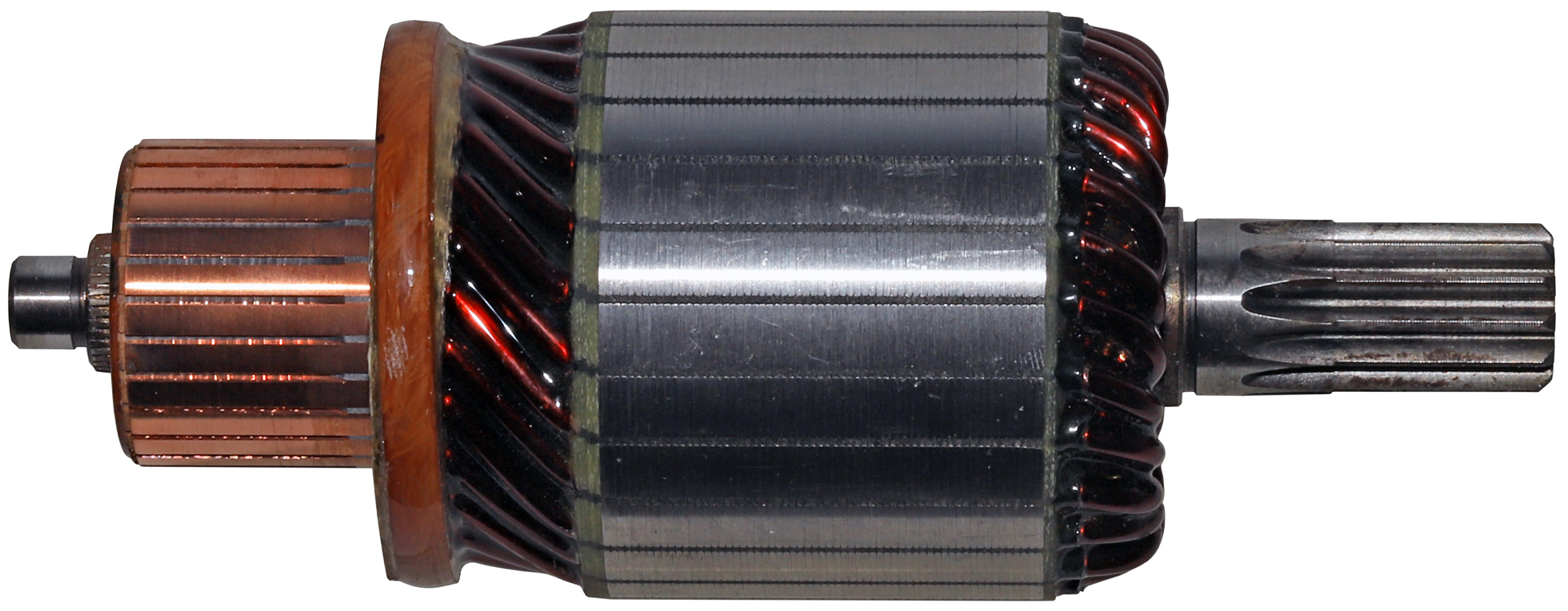

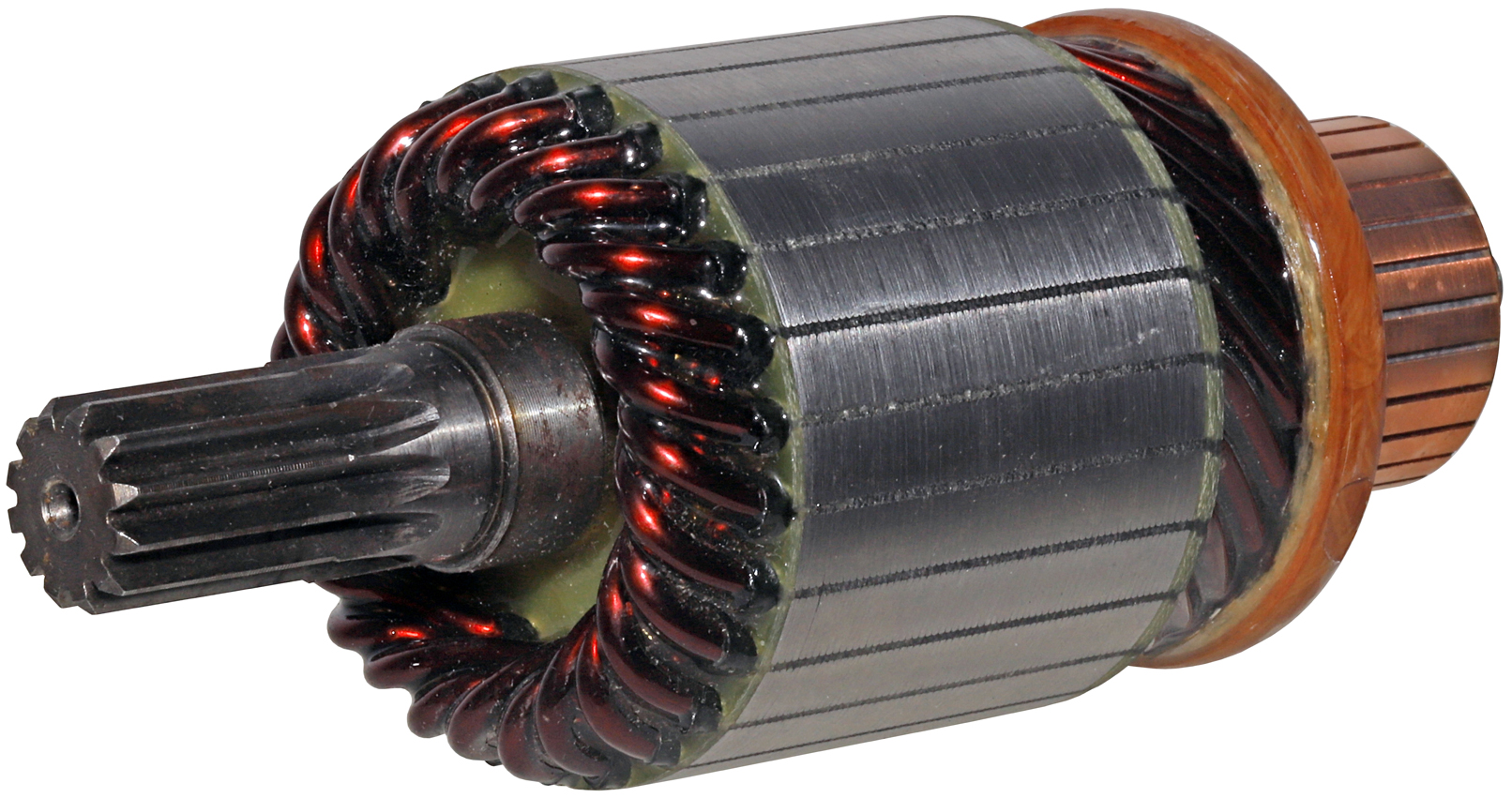

04951 - MITSUBA 1.6 KW PMOSGR REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Acura CL, Honda Accord – Odyssey, Isuzu Oasis 2.3L. Mitsuba 1.6 kw PMOSGR Starters.

STARTER #’S: SM442-02, SM442-03; Honda: 06312-PAA-507RM, 31200-PAA-A02, 31200-PAA-A02RM.

LESTER #’S: 17729.

Manufacturer: MITSUBA

IAT Product Number: 04951

Original Numbers: Honda: 31207-PAA-A02.

Additional Information: Voltage: 12V, Teeth: 11, Bars: 25, Body Diameter: 50.0 mm, Shaft Length: 130.8 mm, Gear Diameter: 14.5 mm, Com Diameter: 28.0 mm, Lam Stack Length: 40.5 mm, DE Shaft Diameter: 15.0 mm, CE Shaft Diameter: 8.0 mm.

Related Items: S17729
