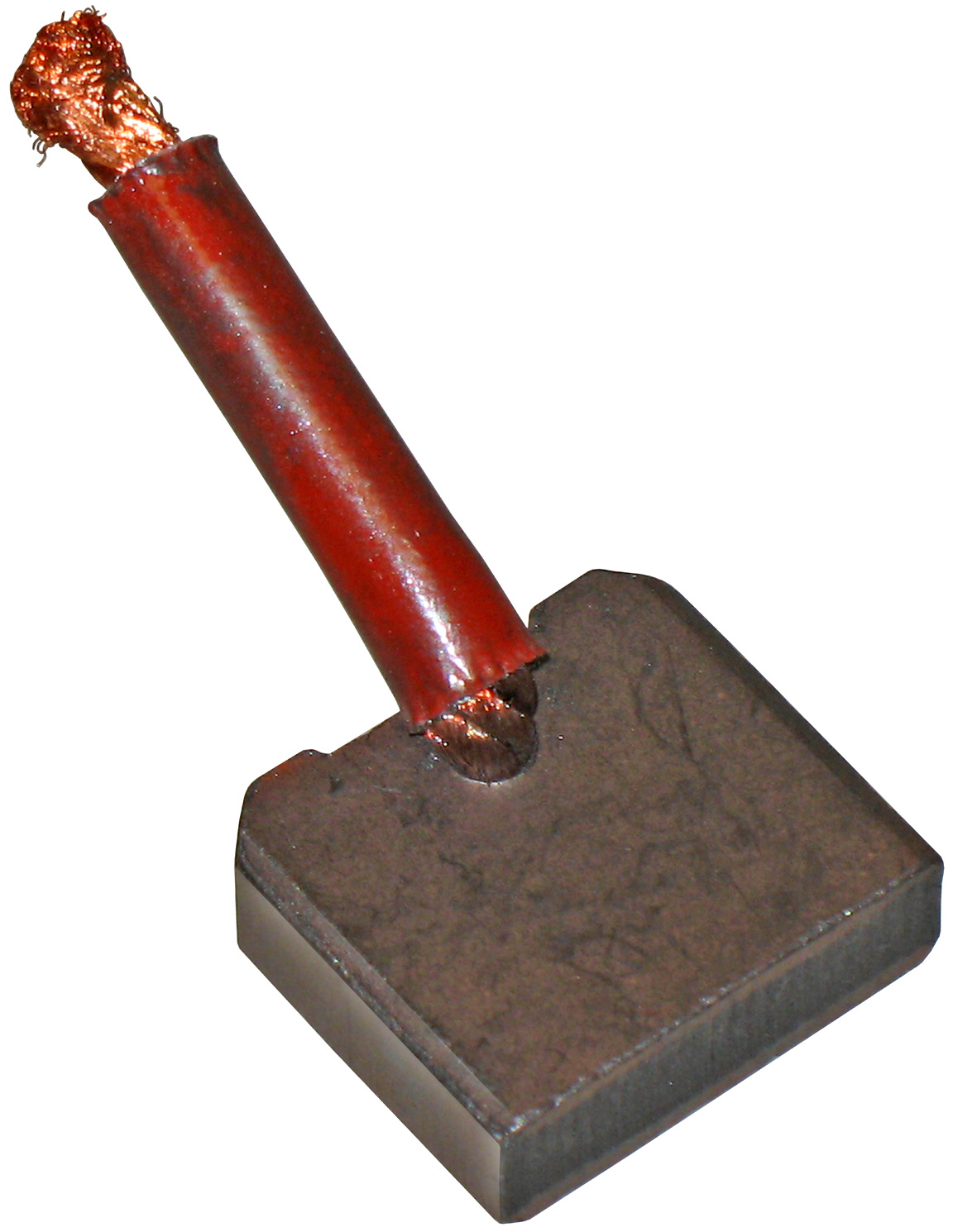

12511S - DENSO 2.5-4.5 KW OSGR STARTER BRUSH

Product Information:

APPLICATIONS: Allis Chalmers, Case, Caterpillar, Cummins, Daihatsu, Dodge Trucks, Hino, Isuzu, John Deere, Kubota, Komatsu, Mitsui-Deutz, Perkins, Teledyne, Toyota Pickup Diesel, White, Versatile, Yanmar. Denso 2.5-4.5 kw OSGR Starters.

STARTER #’S: 028000-5000, -5001, -5002, -5003, -5300, -5301, -5490, -5530, -5540, -5550, -5551, -5552, -5560, -5570, -5580, -5581, -5660, -5690, -5691, -5880, -6780, -6870, -6880, -7240, -7241, -7450, -7800, -7801, -7802, -7810, -8070, -8400, -8490, -8560, -8630, -8840, -9970; 128000-0210, -0211, -0212, -0213, -0540, -0541, -0542, -0543, -0550, -0560, -0970, -0971, -0972, -1000, -1001, -1002, -1010, -1060, -1061, -1062, -1780, -1781, -2250, -2251, -2252, -2253, -2270, -2480, -3030, -3032, -3120, -3121, -4080, -4081, -5300, -5301, -5600, -7040, -7041, -7600, -7601, -7750, -7751, -7752, -8290, -8291, -8292, -8293, -8294, -9500, -9501, -9970, -9971; 228000-0190, -0191, -0620, -0621, -1950, -1951, -1952, -1953, -2290, -2291, -2292, -4940, -5810, -5811, -6470, -6471, -7900, -7901.

LESTER #’S: 16523, 16558, 16599, 16651, 16656, 16824, 16830, 16882, 16896, 16967, 16981, 16990, 17198, 17283, 17286, 17292, 17301, 17302, 17304, 17311, 17348, 17357, 17359, 17362, 17376, 17377, 17380, 17385, 17388, 17390, 17393, 17394, 17399, 17462, 17548, 17609, 17613, 17630, 18058, 18059, 18181, 18190, 18483.

NOTE: 12511 Set Composed of 4 x 12511S.

Manufacturer: DENSO

IAT Product Number: 12511S

Original Numbers: Denso: 028099-2620, 028099-3560; 028510-0500, 028510-670; 028531-0632; Hino: 2814A-77090, 28140-1220; Isuzu: 1-81119-004-0, 5-81118-013-0; Komatsu: 02851-00500; Toyota: 28140-77090; Krug: MK-138, MK-215; IKA: JAS88; WAI: 68-8207.

Additional Information: Length: 21 mm, Width: 25 mm, Thick: 8 mm, Lead Length: 39 mm.
