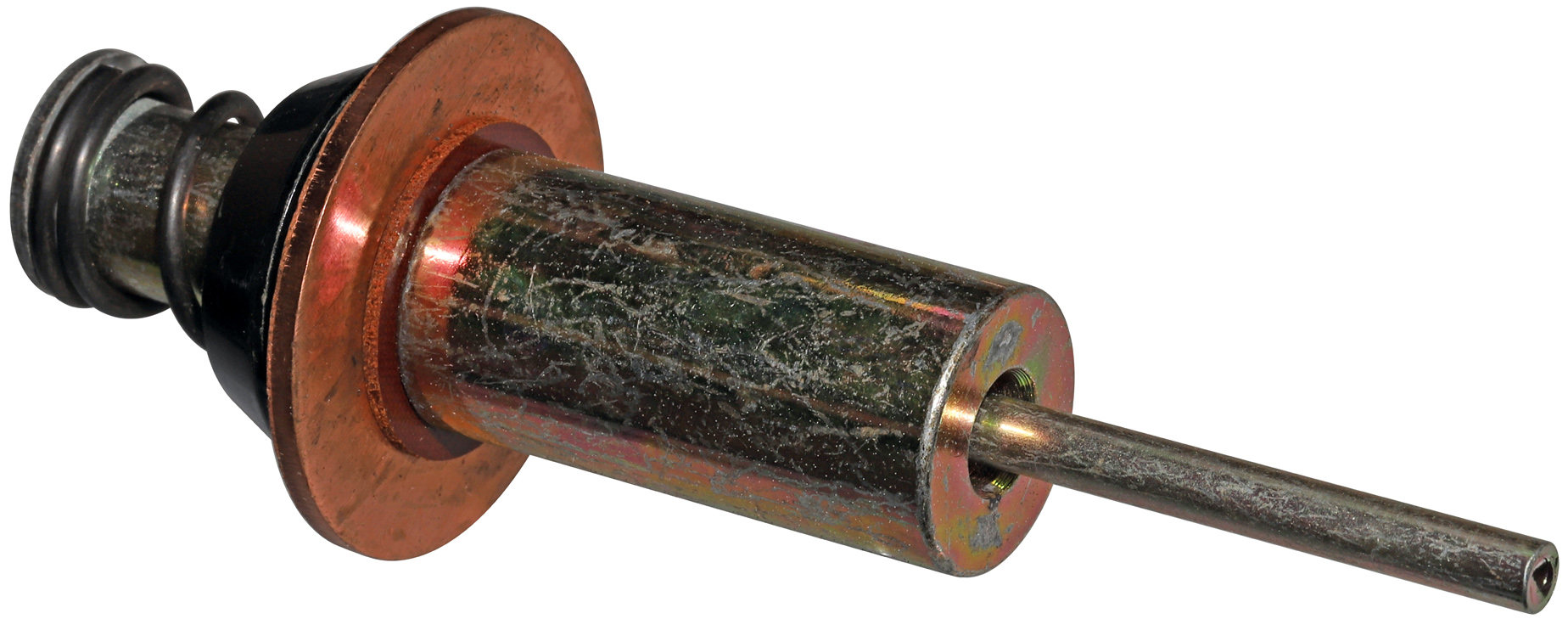

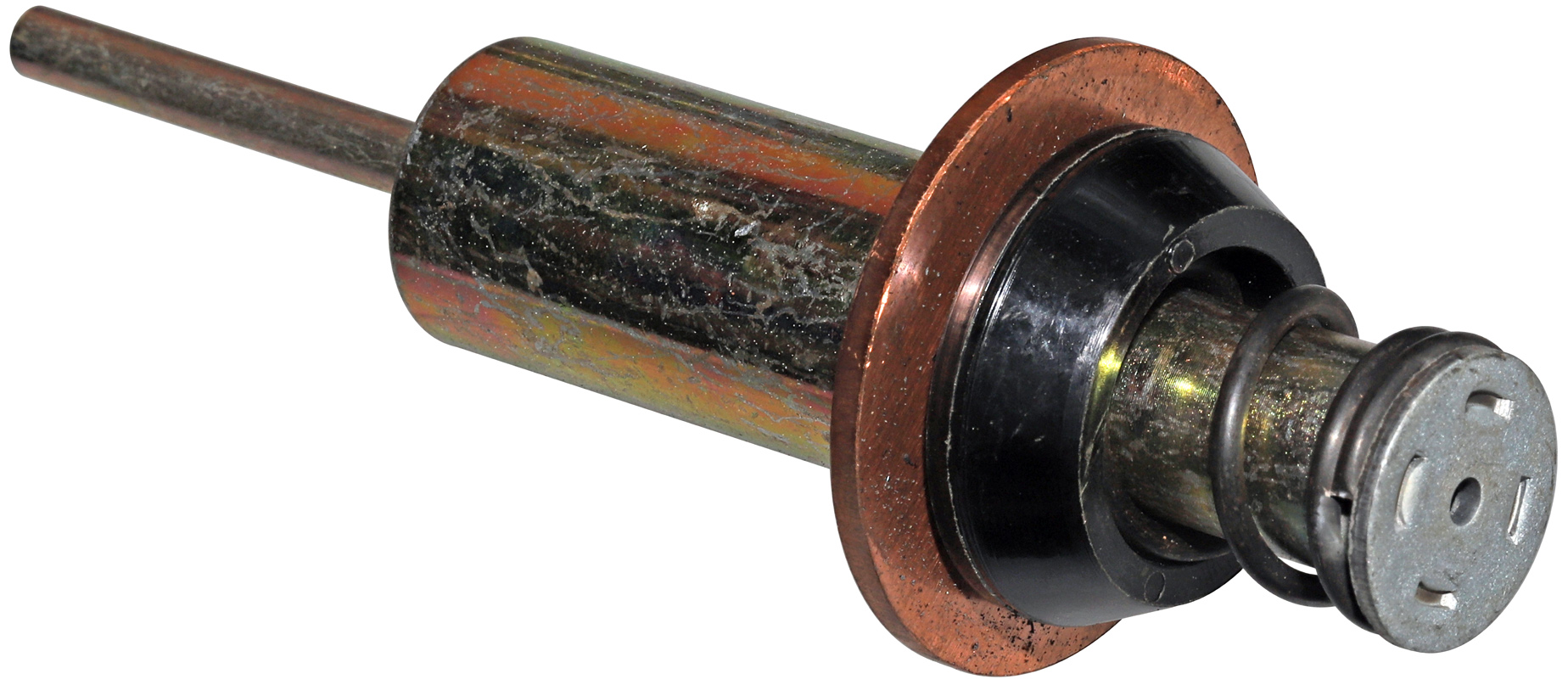

14556 - DENSO 2.5, 3.0, 4.5, 5.5 KW OSGR STARTER SOLENOID PLUNGER ASSEMBLY

Product Information:

APPLICATIONS: Allis Chalmers, Case, Caterpillar, Hino, Cummins, Isuzu, Ishikawajima, John Deere, Komatsu, Kubota, Mitsui-Deutz, Perkins, White, Yanmar. Denso 2.5, 3.0, 4.5, 5.5 Kw OSGR Starters.

STARTER #’S: 028000-4800, 028000-5570, 028000-5850, 028000-6010, 028000-6011, 028000-6012, 028000-6014, 028000-6460, 028000-8402, 028000-8403, 028000-8404, 028000-8405, 128000-0210, 128000-0540, 128000-0772, 128000-0790, 128000-0972, 128000-1570, 128000-2250, 128000-2930, 128000-3081, 128000-3361, 128000-3512, 128000-4080, 128000-4081, 128000-4082, 128000-4083, 128000-4084, 128000-4100, 128000-8640, 128000-8641, 228000-0270, 228000-0281, 228000-0291, 228000-0350, 228000-0570, 228000-0840, 228000-0841, 228000-0842, 228000-0844, 228000-1420, 228000-1421, 228000-1422, 228000-1590, 228000-1610, 228000-1611, 228000-2290, 228000-2291, 228000-2292, 228000-5340, 228000-5341, 228000-5342, 228000-5640, 228000-5641, 228000-6290, 228000-6291, 228000-6470, 228000-6471, 228000-6640, 228000-6641, 228000-7550, 228000-7551, 228000-8410, 228000-8420, 228000-8850, 228000-8851, 228000-8852, 228080-2290, 228080-2291, 228080-2292, 228080-6470, 228080-6471, 428000-0190, 428000-0191, 428000-0290, 428000-1190, 428000-1600, 428000-1690, 428000-1691, 428000-1830, 428000-1870, 428000-1880, 428000-1881, 428000-2160, 428000-3110, 428000-5940, 4280004250, AS228000-6641, AS428000-1600, TG228000-8420, TG428000-1881;

LESTER #’S: 16578, 16825, 16835, 16839, 16878, 16886, 16887, 16892, 16895, 16905, 16906, 16913, 16960, 16975, 16978, 17171, 17251, 17254, 17362, 17362A, 17399, 17418, 17419, 17421, 17483, 17548, 17802, 17818, 17892, 18180, 18197, 18197, 18402, 18424, 18456, 18554, 18559, 18936, 18936, 19168, 19514, 19614, 32957, 32958.

Manufacturer: DENSO

IAT Product Number: 14556

Original Numbers: Denso: 053660-0443, 053660-0660, 053660-7170; Caterpillar: 8G9778; Isuzu: 1-81129-499-0; Toyota: 28235-22060, 90928-29002-71; Yanmar: X05366-00443.

Additional Information: Contact Disc Thickness: 2.6 mm, Length Rod to Plunger: 43.3 mm, OD Plunger: 20.7 mm, OD Contact Disc: 39.8 mm, OA Length: 119.3 mm, Length Spring Ret, to Disc: 31.2 mm.
