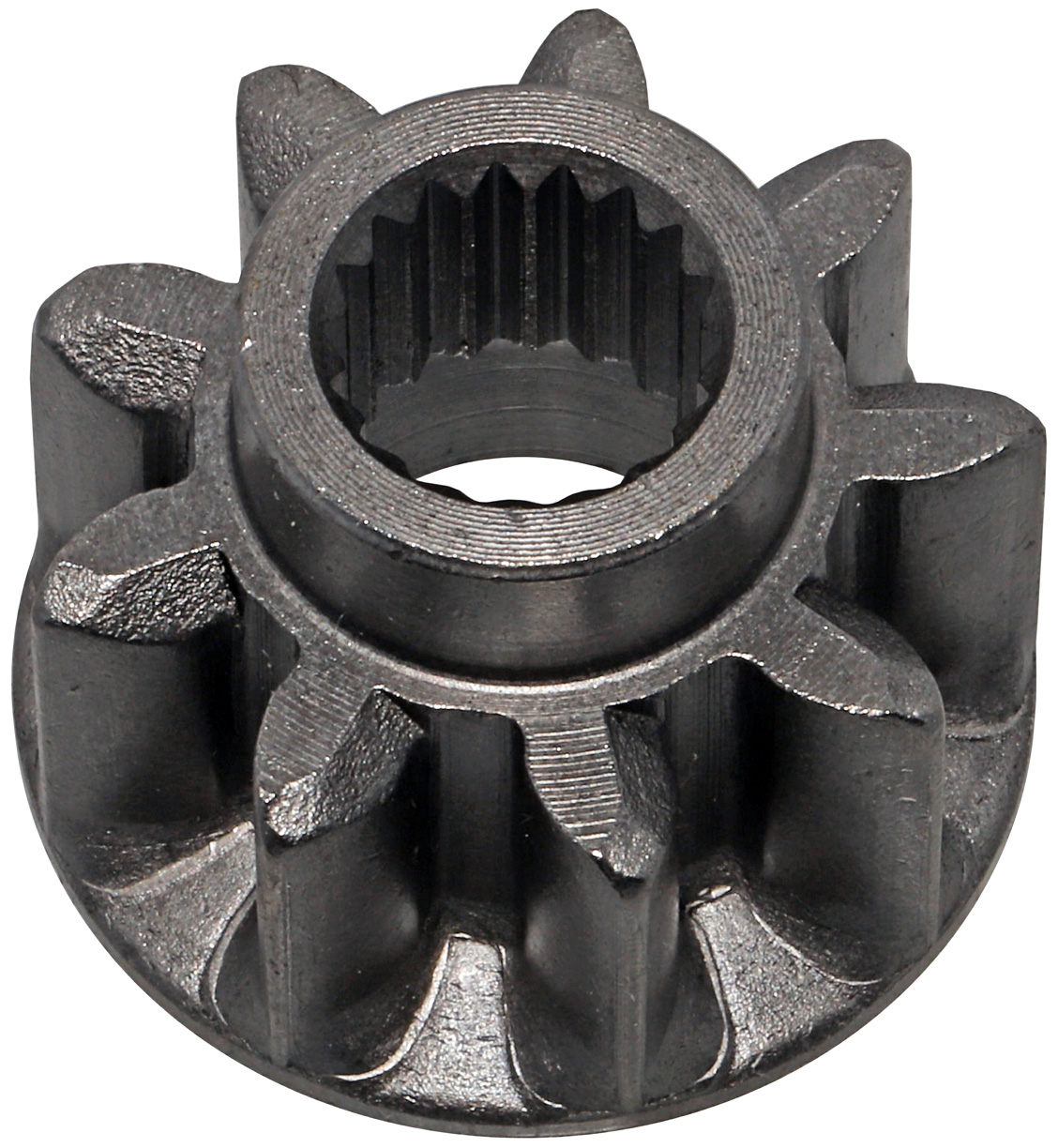

33525 - DENSO PINION GEAR 1.4 KW OSGR STARTER DRIVE

Product Information:

APPLICATIONS: Carrier Transicold Trailer Units, Case Loaders, Kubota Tractors, Mustang Skid Steers, New Holland Loaders, Subaru, Teledyne Engines, Thermo King, Thomas Skid Steers, Universal. Denso 1.4 kw OSGR Starters.

STARTER #’S: 028000-0070, 028000-0140, 028000-1160, 028000-2160, 028000-2161, 028000-2220, 028000-2970, 028000-5590, 028000-6250, 028000-7830, 128000-0070, 128000-0071, 128000-0140, 128000-0141, 128000-1160, 128000-1161, 128000-1470, 128000-2160, 128000-2161, 128000-5590, 128000-6280, 228000-1000, 228000-1001, 228000-1070, 228000-1071, 228000-4740, 228000-4741.

LESTER #’S: 16468, 16647, 16946, 17115, 17116, 17367, 17612, 17619, 18142, 18149, 18153, 18175, 19648.

Manufacturer: DENSO

IAT Product Number: 33525

Original Numbers: Denso: 028099-5590, 028099-6550; WAI: 54-82214.

Additional Information: Gear OD: 41.5 mm, Teeth: 11, Rotation: CW, Splines: 18, Spline ID: 13.3 mm, Root OD: 29.5 mm, Length: 23.5 mm, Spline Type: STRAIGHT.
