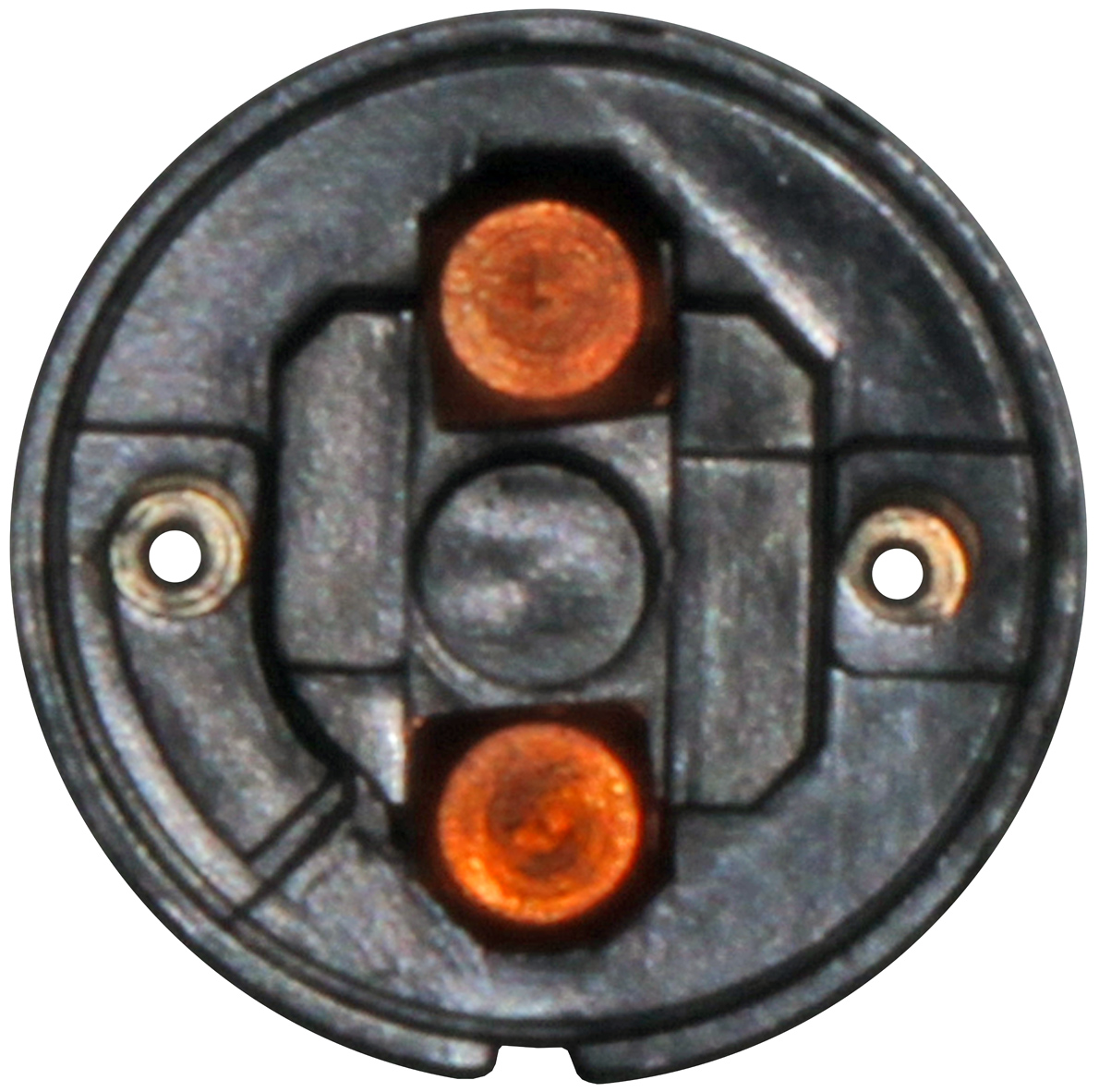

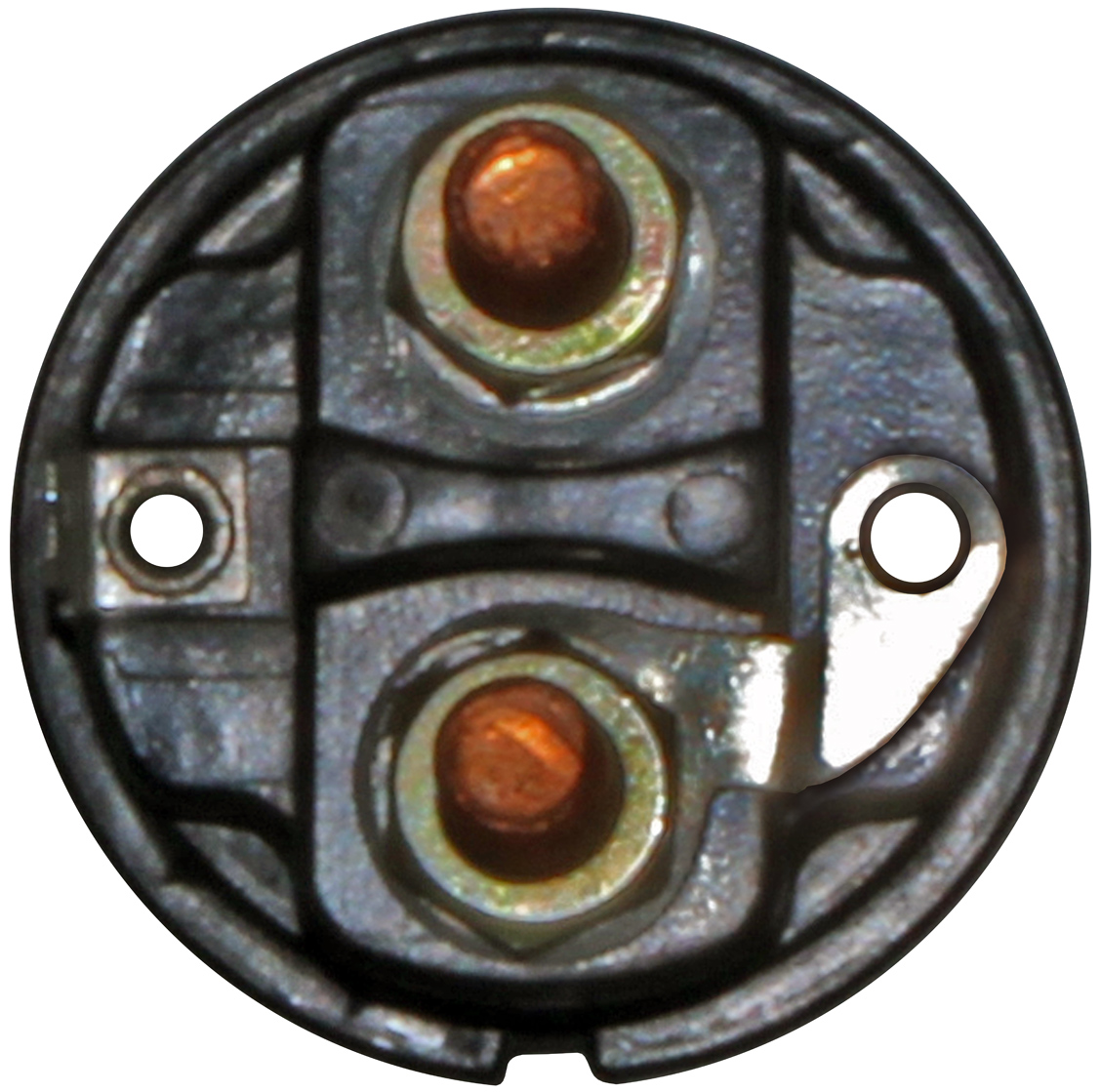

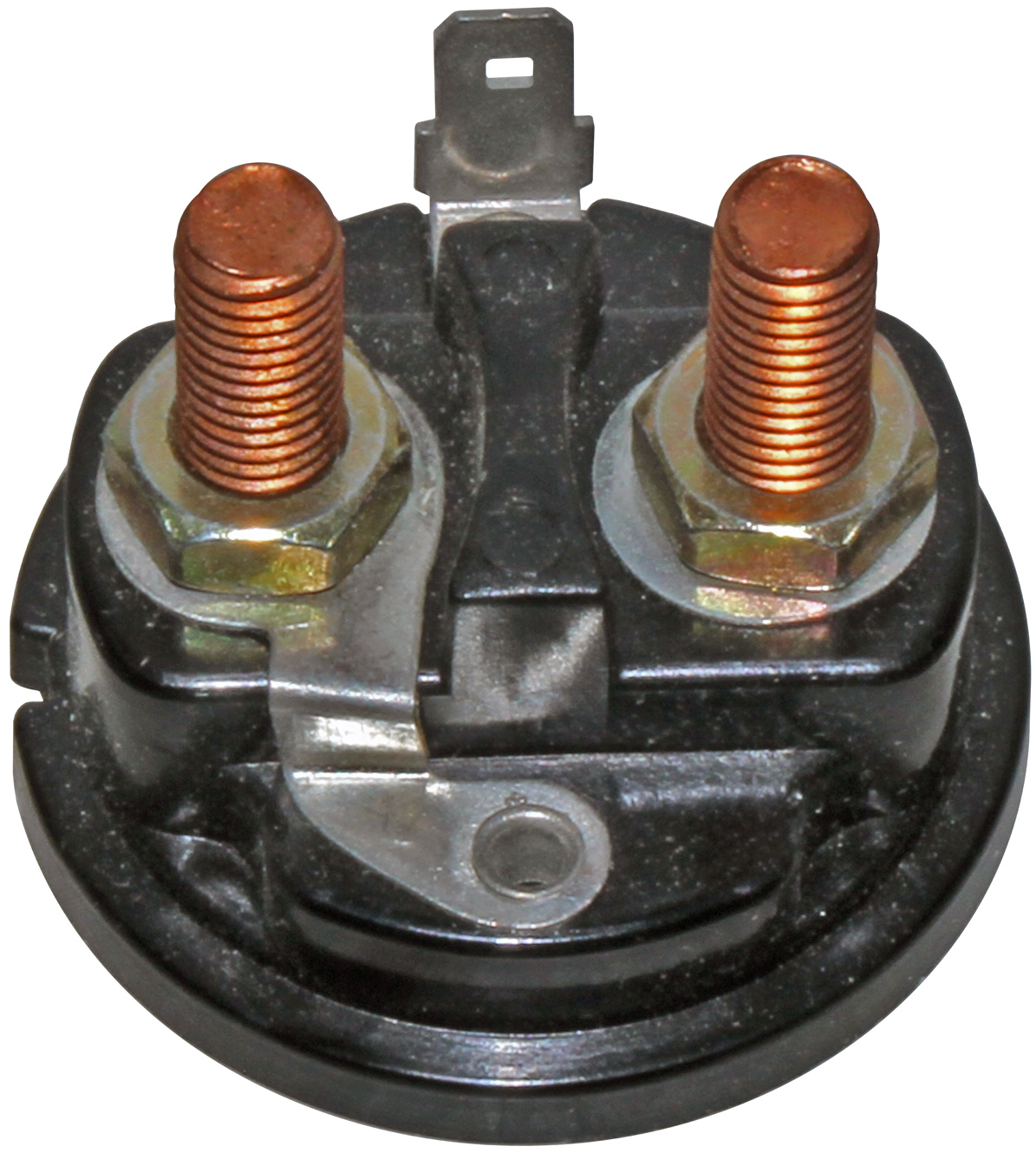

03505 - HITACHI REPLACEMENT STARTER SOLENOID CAP

Product Information:

APPLICATIONS: Case Excavators, Fuji Industrial Equipment, John Deere Tractors, Kia, Mazda, Melroe Bobcat Industrial, New Holland Excavators, Nissan, Subaru, Yanmar Tractors, Yanmar Marine. Hitachi DD / OSGR Starters.

STARTER #’S: S114-315, S114-316, S114-317, S114-317A, S114-317B, S114-318, S114-318A, S114-319, S114-320, S114-320A, S114-345, S114-345A, S114-362, S114-377, S114-378, S114-389, S114-390, S114-390A, S114-391A, S114-413A, S114-414, S114-414A, S114-424, S114-443, S114-443A, S114-480A, S114-480B, S114-480C, S114-550A, S114-613, S114-613A, S114-650, S114-650A, S114-651, S114-651A, S114-655, S114-655A, S114-680, S114-817, S114-817A, S114-844, S114-844R, S114-883.

LESTER #’S: 16732, 16774, 16775, 16805, 16810, 16843, 16915, 16918, 16921, 16991, 17024, 17054, 17057, 17704, 17980, 18055, 18203, 18219, 18278, 18290, 18318, 18494, 18565, 19751, 30806, 31461.

NOTE: Used with 03915 Mobile Contact. Contact Surface is 6.7 mm from Botom. Similar to 03502 except 03502 with Contact Surface 5.5 mm from Botom.

Manufacturer: HITACHI

IAT Product Number: 03505

Original Numbers: SEVICING: Hitachi: 2114-17616, 2114-27501, 2114-27602, 2114-37003, 2114-37503, 2114-37504, 2114-47503, 2114-67505, 2114-87504, 2114-87505; IAT: 02533.

Additional Information: Voltage: 12V, OD: 49.7 mm, Cap Design: CRIMPED, Contacts Depth: 6.7 mm, Battery Terminal Length: 13.0 mm, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade.

Related Items: SHY815, 02533
