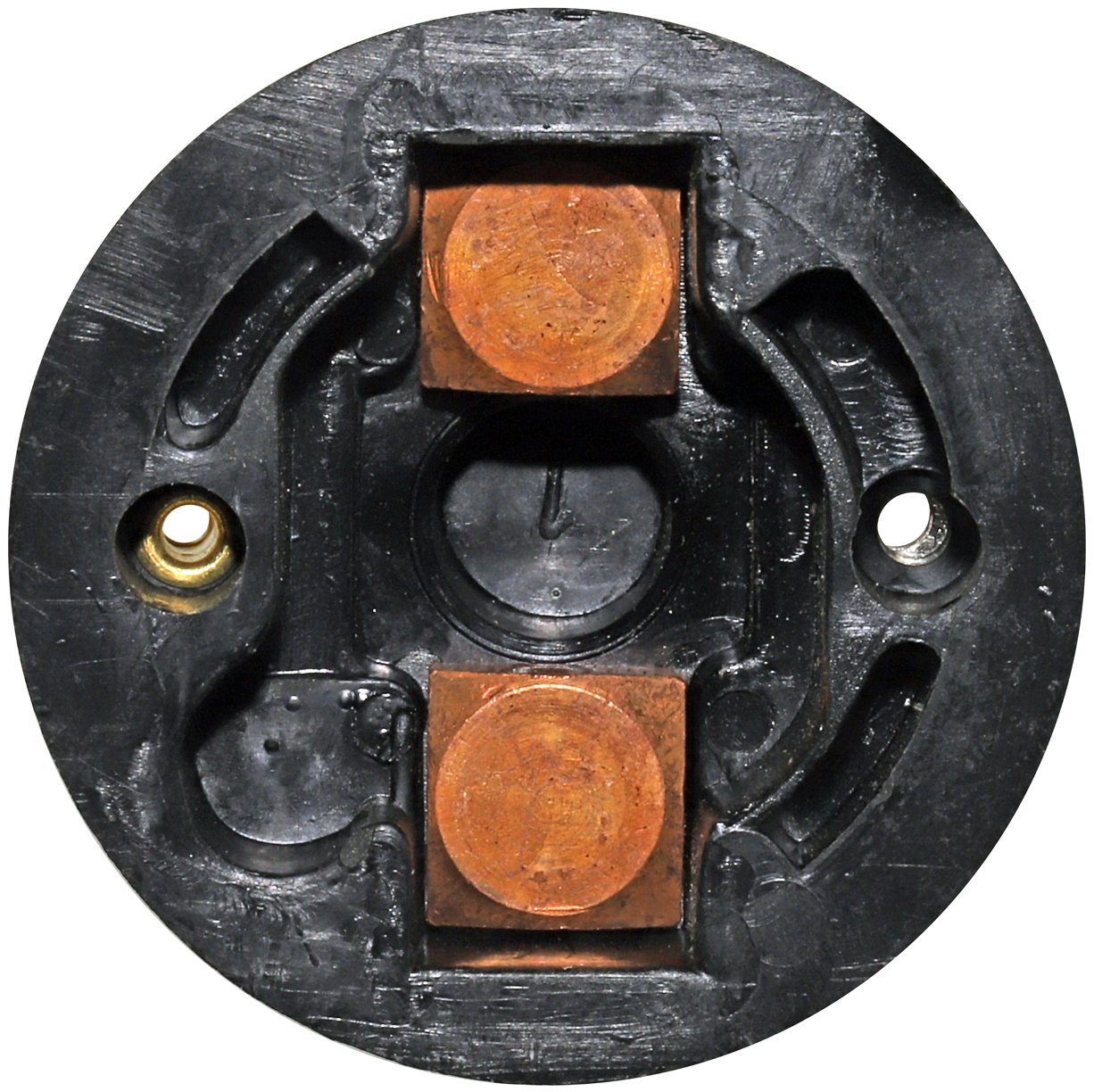

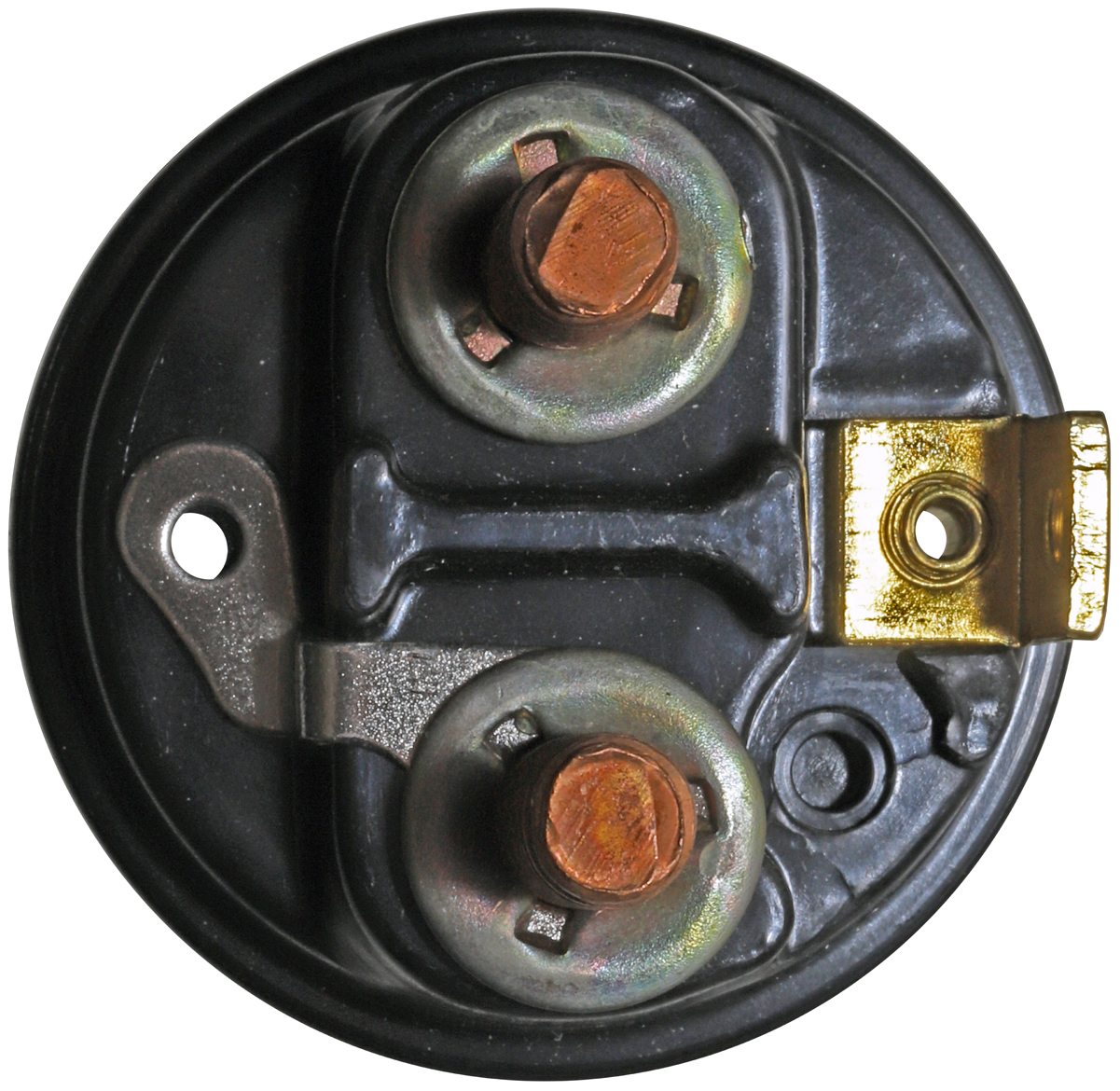

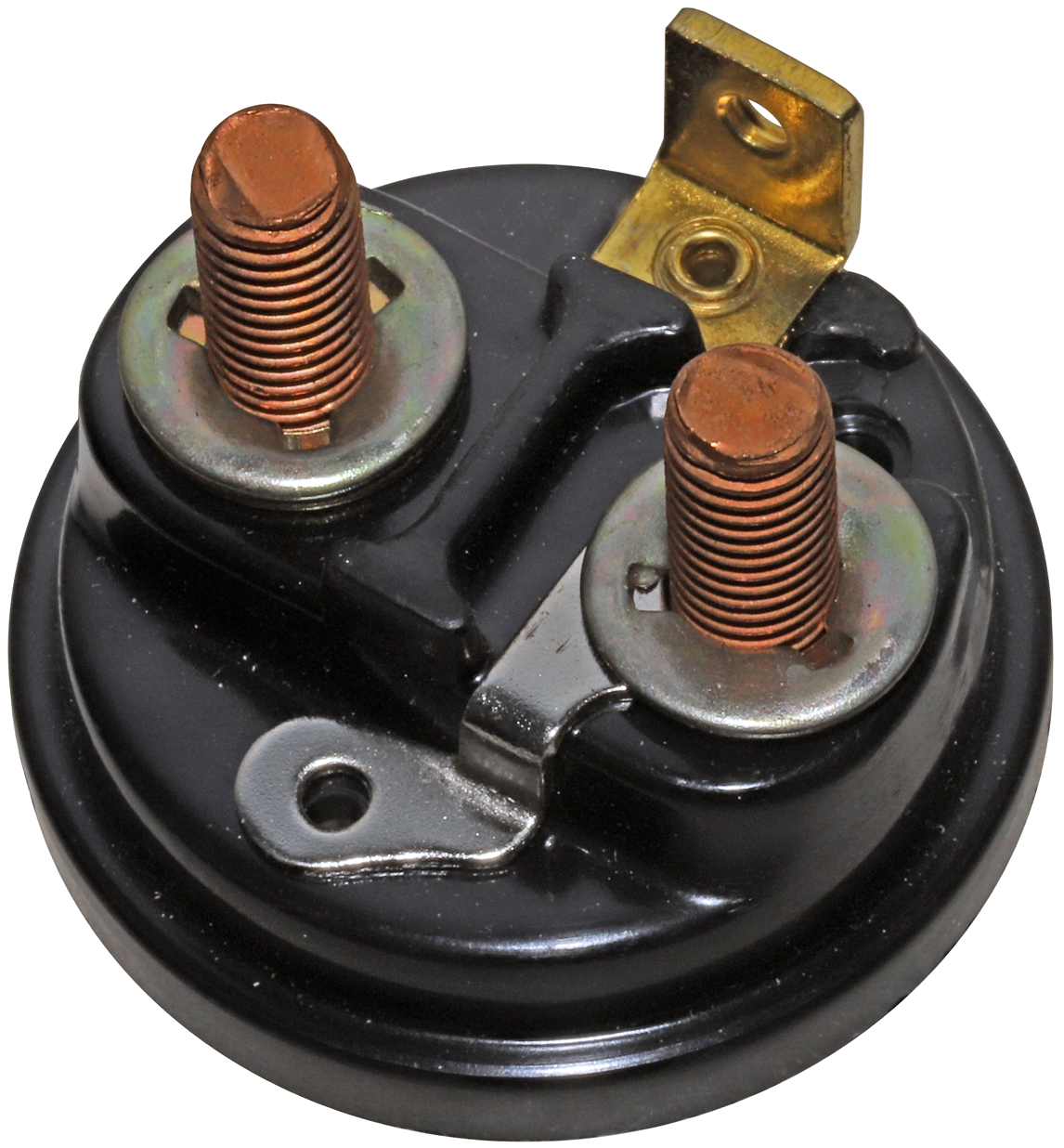

03525 - HITACHI REPLACEMENT STARTER SOLENOID CAP

Product Information:

APPLICATIONS: Honda Accord, Civic Sedan/Wagon, CRX; Nissan Pickup Hardbody, 200SX, Van; Subaru Justy.

STARTER #’S: S114-348, S114-362, S114-362A, S114-388, S114-395D, S114-396, S114-396D, S114-406, S114-411, S114-412, S114-418, S114-419, S114-419, S114-419A, S114-426, S114-517, S114-517C, S114-556, S114-556A, S114-557, S114-557A.

LESTER #’S: 16599, 16740, 16773, 16805, 16808, 16819, 16843, 16868, 16915, 17018, 17057, 31338, 33018.

NOTE: Used with 03916 Mobile Contact. Contact Surface is 6.7 mm from Botom. Similar to 03501 except 03501 with Contact Surface 5.5 mm from Botom.

Manufacturer: HITACHI

IAT Product Number: 03525

Original Numbers: SERVICING: Hitachi: 2114-27502, 2114-47505, 2114-77505, 2114-87503; IAT: 02519.

Additional Information: Voltage: 12V, OD: 50.3 mm, Cap Design: CRIMPED, Contacts Depth: 6.7 mm, Battery Terminal Length: 13.0 mm, Battery Terminal: M8 x 1.25, Motor Terminal: M8 x 1.25, Switch Terminal: Male Spade.

Related Items: 02519
