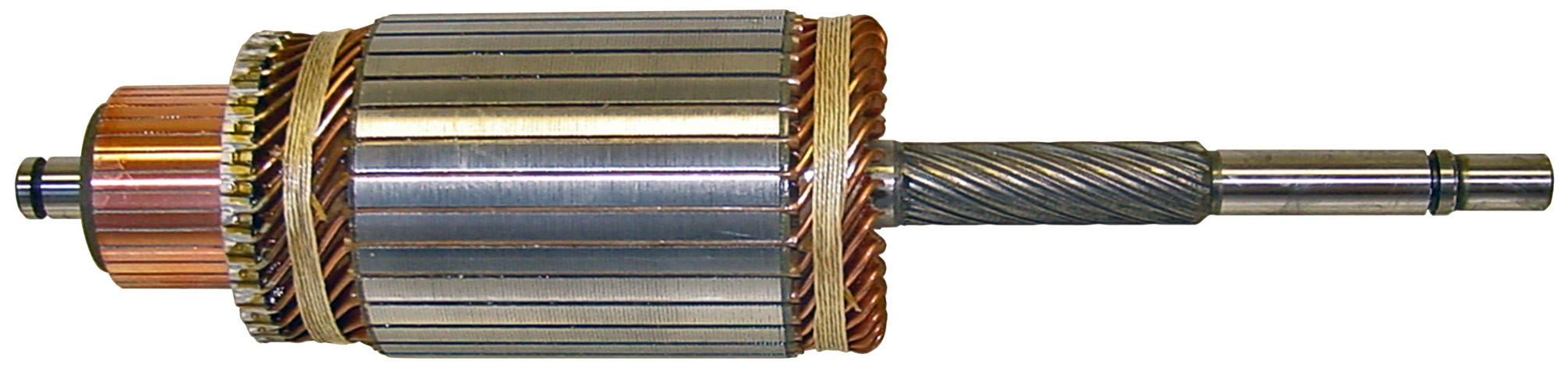

04157 - BOSCH 4.0 KW DD REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Bukh Marine, DAF, Fiat-Allis, Fiat-Iveco, Hanomag-Henschel, Fuchs, KHD, MAN-Bussing, Mercedes Trucks, Poclain, Scania Trucks, Steyr, Volvo Trucks. Bosch 24V / 4.0 kw DD Starters.

STARTER #’S: 0-001-360-002, 0-001-360-003, 0-001-360-004, 0-001-360-005, 0-001-360-006, 0-001-360-007, 0-001-360-008, 0-001-360-009, 0-001-360-012, 0-001-360-013, 0-001-360-015, 0-001-360-016, 0-001-360-017, 0-001-360-018, 0-001-360-019, 0-001-360-020, 0-001-360-022, 0-001-360-024, 0-001-360-026, 0-001-360-027, 0-001-360-029, 0-001-360-030, 0-001-360-031, 0-001-360-032, 0-001-360-033, 0-001-360-034, 0-001-360-035, 0-001-360-037, 0-001-360-038, 0-001-360-039, 0-001-360-041, 0-001-360-043, 0-001-360-044, 0-001-360-045, 0-001-360-047, 0-001-360-048, 0-001-360-049, 0-001-360-050, 0-001-360-051, 0-001-360-054, 0-001-360-055, 0-001-360-056, 0-001-360-057, 0-001-360-058, 0-001-360-059, 0-001-360-060, 0-001-360-061, 0-001-360-062, 0-001-360-063, 0-001-360-064, 0-001-360-065, 9-000-143-300, 9-000-143-301, 9-000-143-302, 9-000-143-303, 9-000-143-304; SR913X, SR915X.

LESTER #’S: 16565, 16567, 17074, 17092, 17095, 17106, 17113, 17136, 17184, 17228, 17257, 17307, 18025, 18029, 18035, 18224, 18227, 18229, 18237, 18259, 18386, 18387, 18462, 18465, 18466, 18474, 18480, 18926, 18927, 18943, 19652, 19676, 19678, 19777, 19803, 19920, 30056, 30057, 30069, 30092, 32032, 32060, 32063, 32112, 32199, 32245, 32295, 32320, 32991.

Manufacturer: BOSCH

IAT Product Number: 04157

Original Numbers: Bosch: 2-004-004-111, 2-004-004-062; DAF: 111547, 249227; Fiat: 9920325, 9926497; Henschel: 984-160; KHD: 129-0076, 298-5056; MAN: A5-00024-1467, 81-26203-6005; Mercedes: 000-151-13-15; Poclain: A1541621; Scania: 192012; Steyr: 609-090713; Volvo: 244245.

Additional Information: Voltage: 24V, Spline: 10, Bars: 33, Rotation: CW, Gear Diameter: 17.9 mm, Body Diameter: 75.0 mm, Lam Stack Length: 84.0 mm, Shaft Length: 333.8 mm, DE Shaft Drive Diameter: 14.2 mm, Comm Diameter: 45.0 mm, DE Shaft Diameter: 12.4 mm, CE Shaft Diameter: 14.0 mm.
