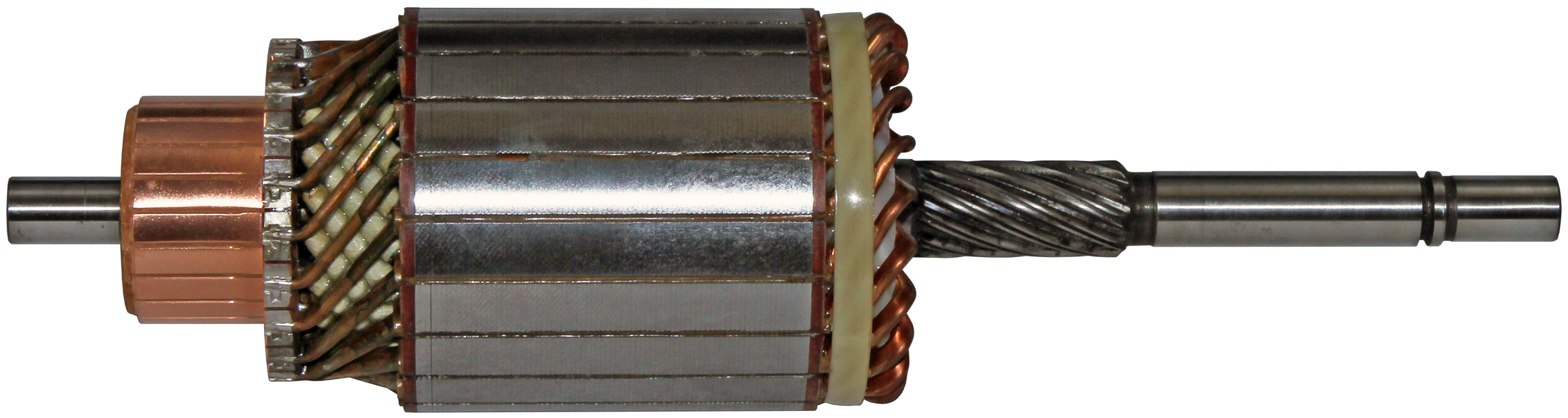

04174 - BOSCH 2.4-2.5 KW DD REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: AGCO Allis, Aifo Marine, Atlas Copco, Allis Chalmers, Bedford, Carraro, Ebro, Fendt, Fuchs, Fiat Trucks, Fiat-Allis, Holder Tractors, Iveco Trucks, KHD, Lamborghini, Lombardini, Linde, Massey Ferguson, Peugeot, Same Tractors, Schanzlin Tractors, Steyr Tractors. Bosch 2.4-2.5 kw DD Starters.

STARTER #’S: 0-001-362-005, 0-001-362-006, 0-001-362-007, 0-001-362-008, 0-001-362-011, 0-001-362-012, 0-001-362-013, 0-001-362-014, 0-001-362-015, 0-001-362-016, 0-001-362-017, 0-001-362-019, 0-001-362-021, 0-001-362-022, 0-001-362-023, 0-001-362-024, 0-001-362-025, 0-001-362-032, 0-001-362-033, 9-000-143-400, 9-000-143-402, 9-000-143-403, 9-000-143-404, 9-000-143-405, 9-000-143-407, 9-000-143-409; SR905X, SR914X, SR926X.

LESTER #’S: 16564, 16715, 17075, 17093, 17105, 17114, 18460, 19654, 30122, 30376, 31949, 32302.

Manufacturer: BOSCH

IAT Product Number: 04174

Original Numbers: Bosch: 2-004-004-072; Ford: 715F-11005-BA, 715F-11005-CA; Fiat: 8997798; Lamborghini: 2-9619-081-4; KHD: 298-5196; Massey Ferguson: 1805682M1; Same: 296-190814; Steyr: 308-00-09-0709.

Additional Information: Voltage: 12V, Splines: 10, Bars: 21, Rotation: CW, Gear Diameter: 17.9 mm, Body Diameter: 74.90 mm, Comm Diameter: 45.0 mm, Lam Stack Length: 72.0 mm, Shaft Length: 287.0 mm, CE Shaft Diameter: 12.4 mm, DE Shaft Diameter: 12.4 mm.
