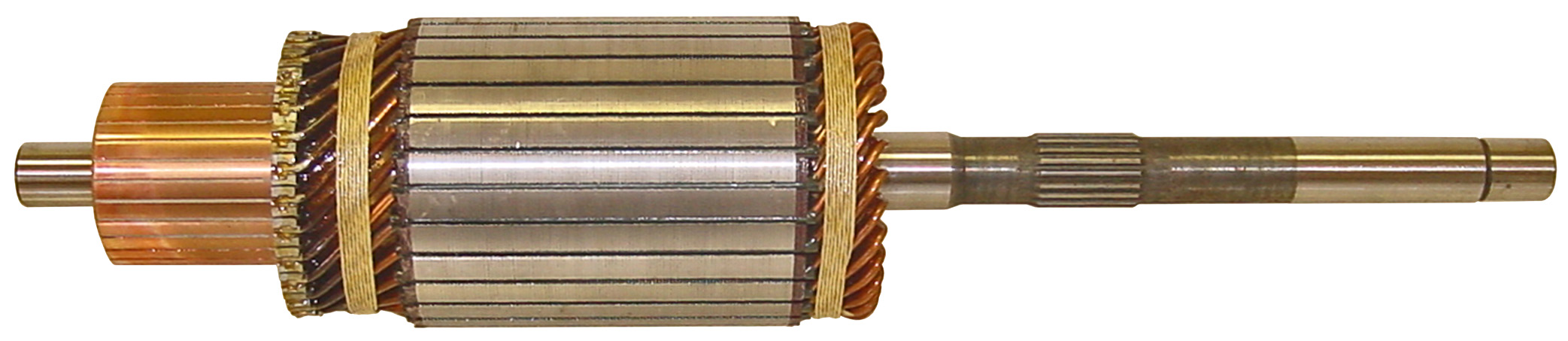

04198 - BOSCH 7.5 KW DD REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS : Caterpillar Excavators / Tractors, Fiat-Allis Crawlers / Excavators, Fiat-Hitachi Excavators, Volvo Trucks 16.0L. Bosch 24V / 7.5 kw DD Starters.

STARTER #’S: 0-001-420-001, 0-001-420-003, 0-001-420-004, 0-001-420-006, 0-001-420-007, 0-001-420-008, 0-001-420-009, 0-001-420-010, 0-001-420-024, 0-001-420-025, 0-001-420-026, 0-001-420-027, 0-001-420-028, 0-001-420-029; SR928X.

LESTER #’S: 18020, 18021, 18022, 18038, 18928, 32949.

Description

Manufacturer: BOSCH

IAT Product Number: 04198

Original Numbers: Bosch: 2-004-005-003, 2-004-005-004, 2-007-010-059; Caterpillar: 3T0867; Case / Fiat: 79058490; MTU: 869-586-04-86; Volvo: 1697803.

Additional Information: Voltage: 24V, Splines: 19, Bars: 29, Spline Type: STRAIGHT, Gear Diameter: 21.8 mm, Body Diameter: 84.1 mm, Comm Diameter: 50.0 mm, Lam Stack Length: 100.0 mm, Shaft Length: 430.0 mm DE Shaft Drive Diameter: 19.0 mm, DE Shaft Diameter: 18.0 mm, CE Shaft Diameter: 18.0 mm.
