Product Information:
APPLICATIONS: Caterpillar Tractors, Fiat-Allis Trucks 8.1L, Iveco Trucks, Renault Trucks 11.0L, Volvo Trucks 16.0L. Bosch 24V / 7.5 kw DD Starters.
STARTER #’S: 0-001-420-002, 0-001-420-005, 0-001-420-011, 0-001-420-012, 0-001-420-013, 0-001-420-014, 0-001-420-015, 0-001-420-025, 0-001-420-026, 0-001-420-027.
LESTER #’S: 18021, 18022, 18038.
Manufacturer: BOSCH
IAT Product Number: 04199
Original Numbers: Bosch: 2-007-010-061; Renault: 5000811669; Fiat: 79058490; OREM: 301215; ORME: IM200; WAI: 61-9120.

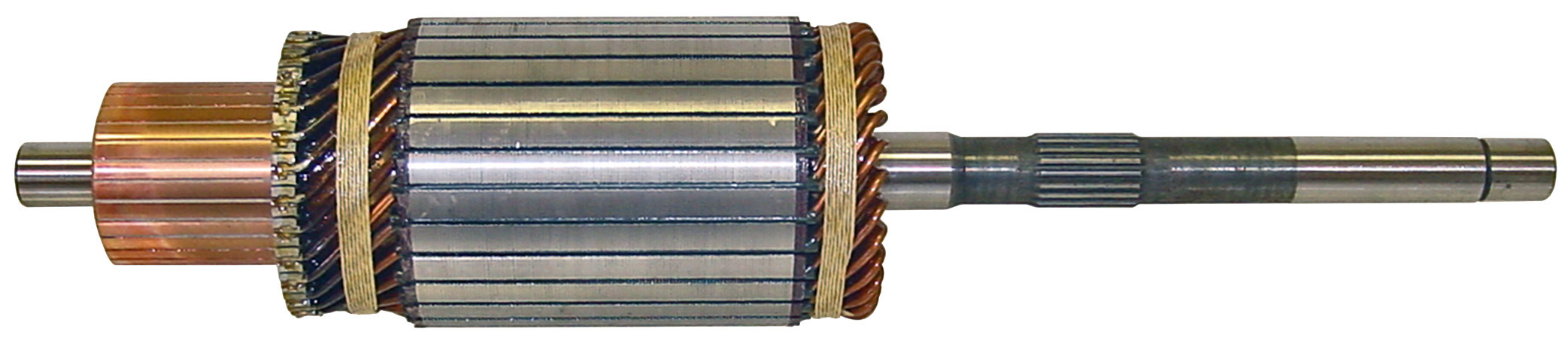

Additional Information: Voltage: 24V, Splines: 19, Bars: 29, Spline Type: STRAIGHT, Gear Diameter: 21.8 mm, Body Diameter: 84.1 mm, Comm Diameter: 50.0 mm, Lam Stack Length: 100.0 mm, Shaft Length: 427.0 mm DE Shaft Drive Diameter: 19.0 mm, DE Shaft Diameter: 18.0 mm, CE Shaft Diameter: 18.0 mm.
