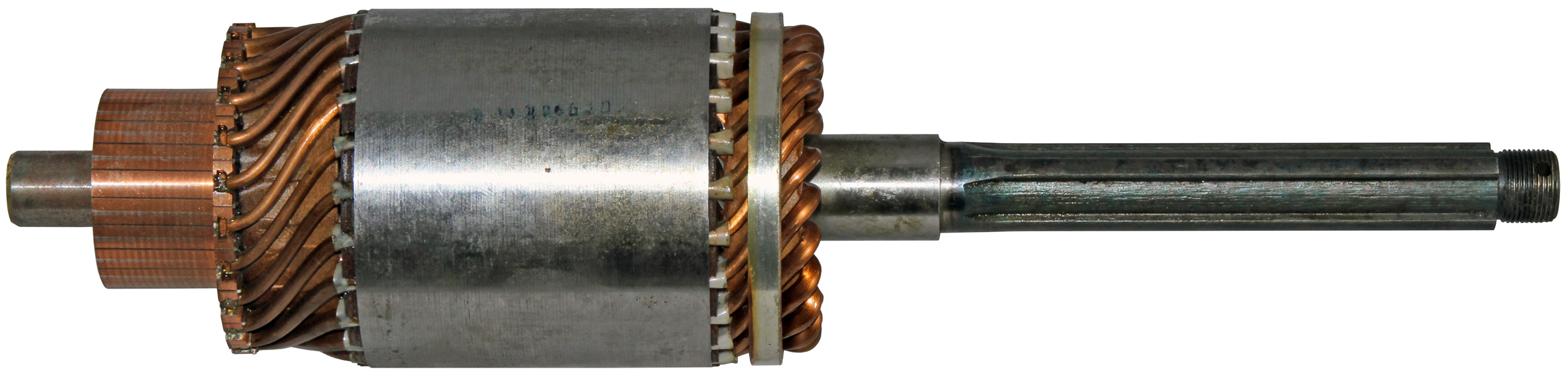

04424 - LUCAS 1.1 KW M45G SEREIS REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Bedford Trucks w / Perkins 4-108 Diesel, Perkins Diesel Engines, Volvo BM Valmet Combines. Lucas 1.1 kw M45G Sereis Starters.

STARTER #’S: 26126, 26156, 26163A, 26163F, 26163D, 26165, 26173, 26173A, 27407; LRS189; S4545.

LESTER #’S: 18260.

Manufacturer: LUCAS

IAT Product Number: 04424

Original Numbers: Lucas: 54251052, TIB112; OREM: 300432; ORME: IM226.

Additional Information: Voltage: 12V, Splines: 4, Spline Type: STRAIGHT, Bars: 23, Body Diameter: 74.3 mm, Shaft Length: 319.0 mm, Lam Stack Length: 75.0 mm, Comm Diameter: 41.0 mm, CE Shaft Diameter: 15.8 mm.

Related Items: S189
