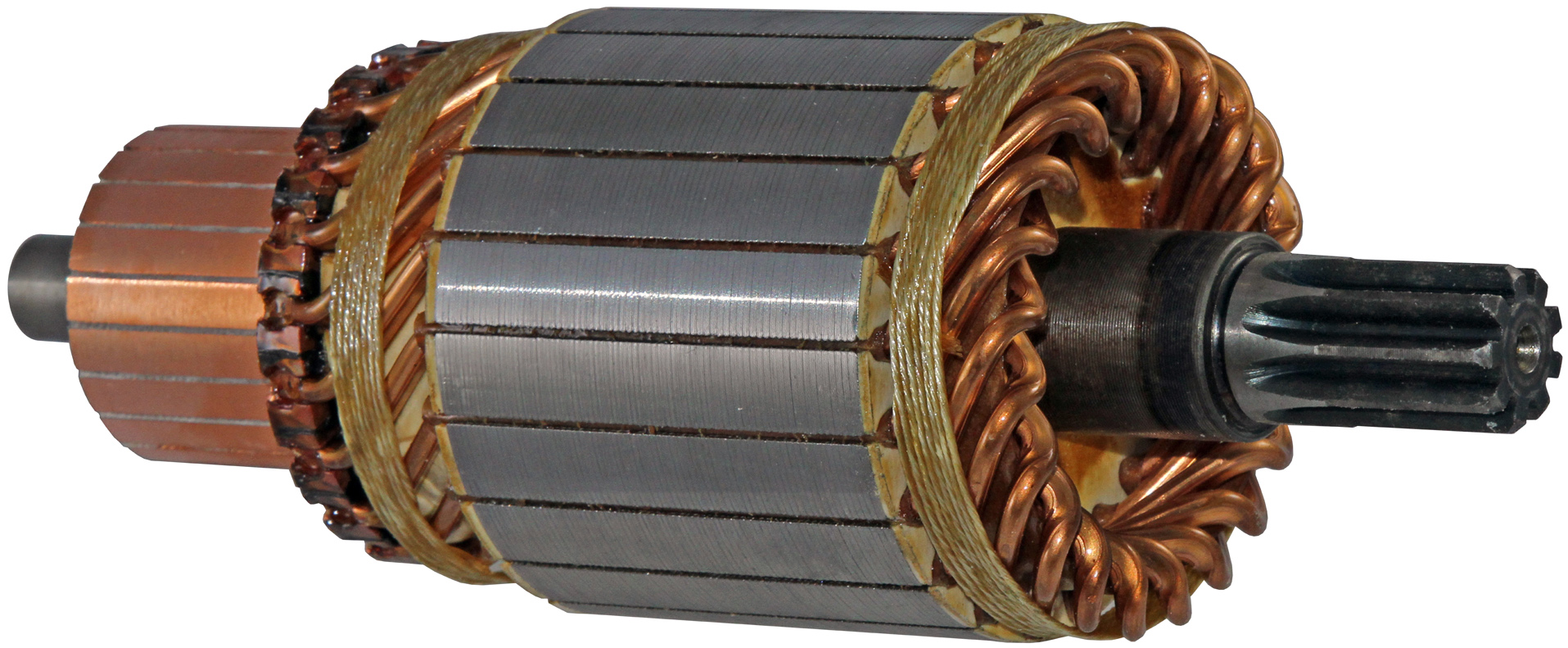

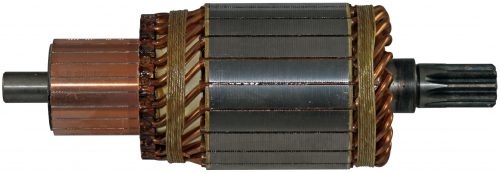

04502 - NIKKO 24V / 7.5 KW OSGR REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Komatsu Compressors, Crawlers, Excavators, Generators, Graders, Lift Trucks, Nissan. Nikko 24V / 5.5-7.5 kw OSGR Starters.
STARTER #’S: 0-23000-6210, 0-23000-6211, 0-23000-6231, 0-23000-6250, 0-23000-6260, 0-23000-6290, 0-23000-6291, 0-23000-6310, 0-23000-6340, 0-23000-6400, 0-23000-6450, 0-23000-6510, 0-23000-6520, 0-23000-6521, 0-23000-6530, 0-23000-6540, 0-23000-6542, 0-23000-6550, 0-23000-6551, 0-23000-6560, 0-23000-6570, 0-23000-6590, 0-23000-6600, 0-23000-6610, 0-23000-6620, 0-23000-6630, 0-23000-6640, 0-23000-6690, 0-23000-6710, 0-23000-6720, 0-23000-6722, 0-23000-6790, 0-23000-6820, 0-23000-6830, 0-23000-6840, 0-23000-6850, 0-23000-6860, 0-23000-6890, 0-23000-6900, 0-23000-6940.
LESTER #’S: 18085, 18087, 18088, 18105, 18107, 18109, 19773, 19937, 19950.

Manufacturer: NIKKO

IAT Product Number: 04502

Original Numbers: Nikko: 1-23100-0120, 7-23100-0290, 40466-01011; Komatsu: KDO-12300-0120; ORME: IM3030; WAI: 61-8405.

Additional Information: Voltage: 24V, Splines: 9, Bars: 21, Body Diameter: 74.3 mm, Shaft Length: 220.5 mm, Lam Stack Length: 66.0 mm, Gear Diameter: 19.7 mm, Comm Diameter: 43.0 mm, CE Shaft Diameter: 14.0 mm, DE Shaft Diameter: 24.0 mm.
