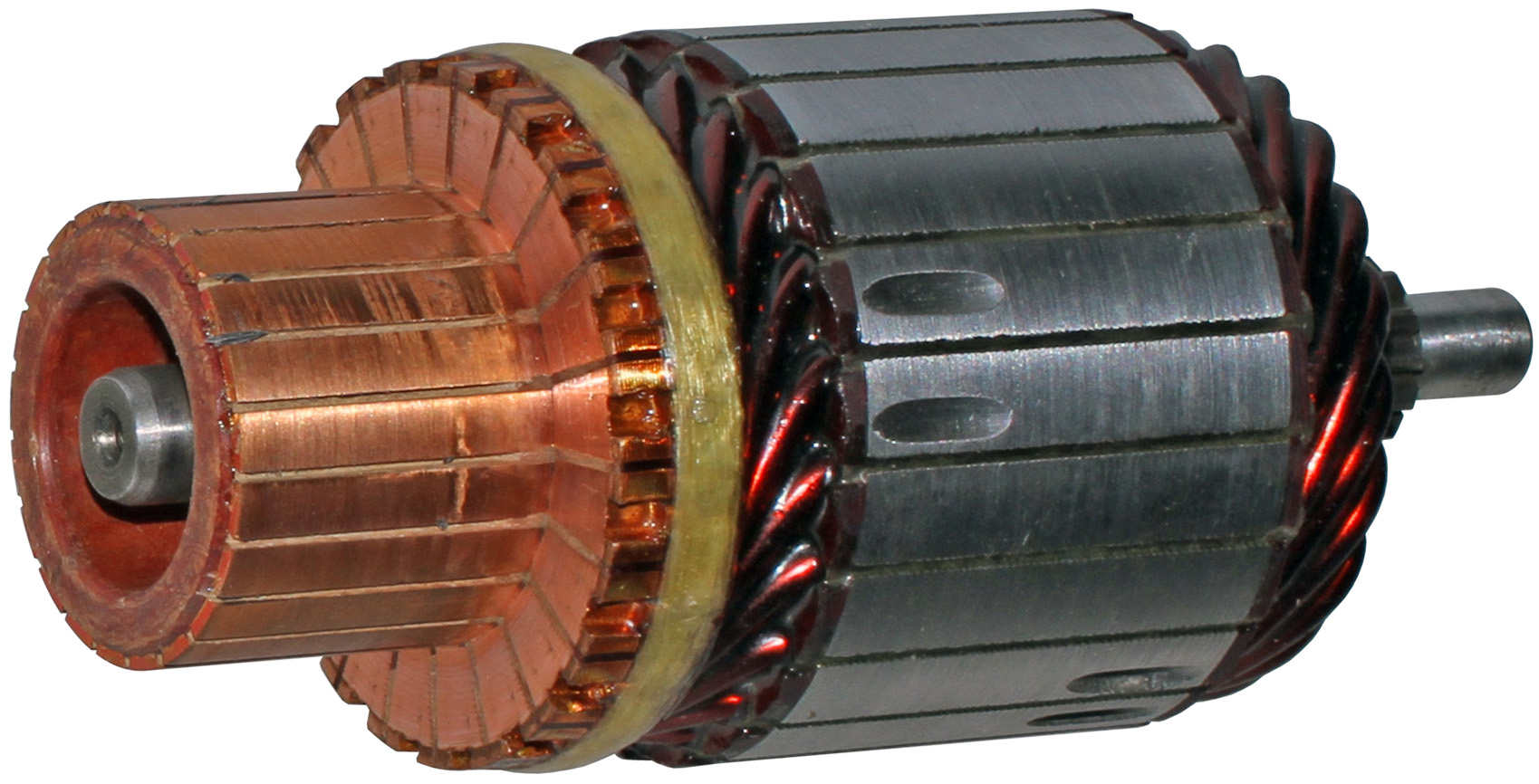

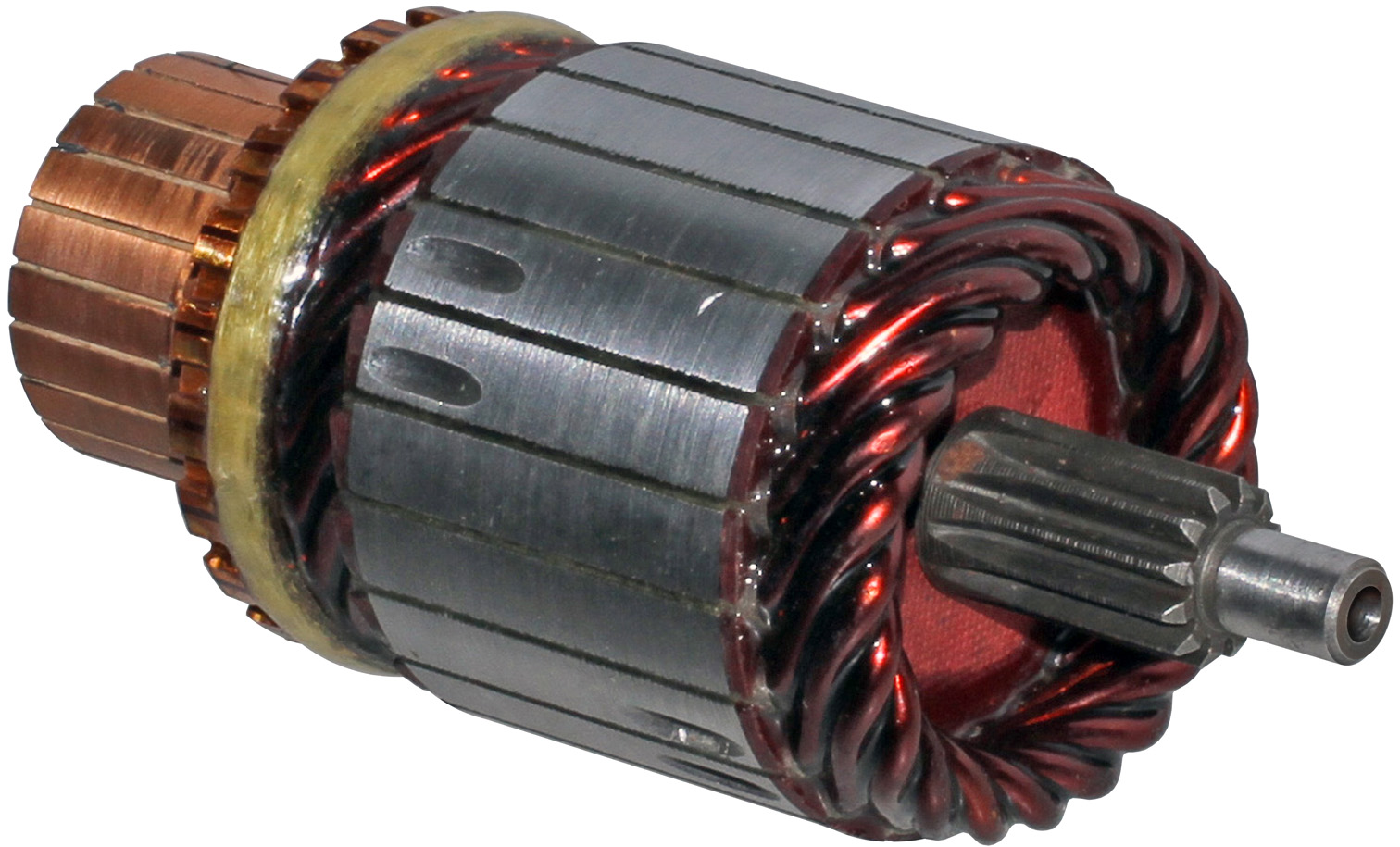

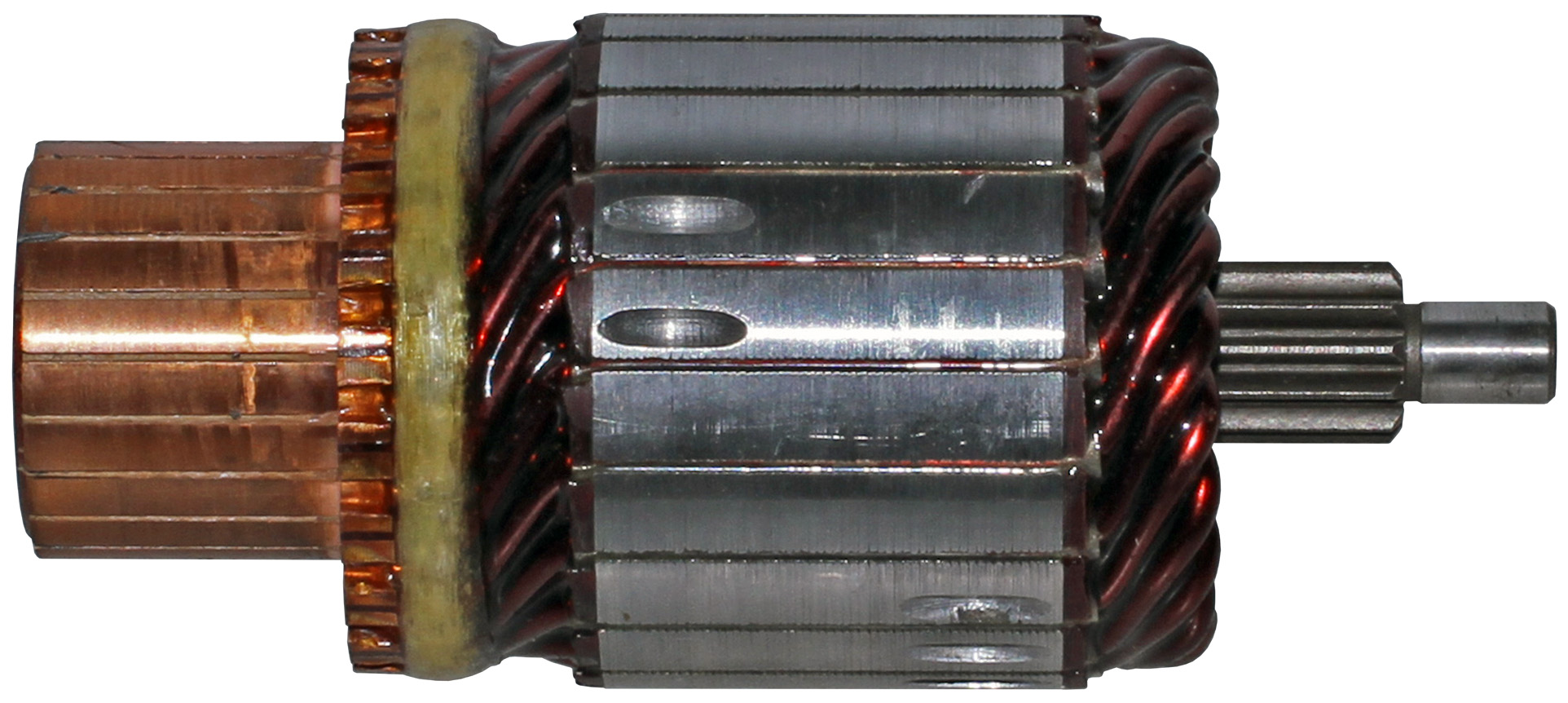

04905 - DELCO REMY PG260M PMGR 1.7 KW REPLACEMENT STARTER ARMATURE

Product Information:

APPLICATIONS: Buick / Chevrolet / Oldsmobile / Pontiac / GMC Trucks, Saturn L Sedan, Hummer H2, Isuzu, Mercury Marine, Hyster, Yale, Volvo Penta Marine. Delco PG260M PMGR 1.7 kw Starters.
STARTER #’S: 10465167, 10465294, 10465309, 10465375, 10465385, 10465386, 10465422, 10465461, 10465554, 10465555; 12301334, 21019219; 323-1063, 323-1145, 323-1192, 323-1455, 323-1459, 323-1481, 323-485, 323-488, 323-489, 323-501, 323-528, 323-677; 336-1915; 90000786, 90000798, 90000804, 90000805, 90000806, 90000812, 90000819, 90000820, 90000821, 90000822, 90000827, 90000834, 90000835, 90000844, 90000850, 90000851, 90000853, 90000860, 90000861, 90000862, 90000863, 90000864, 90000865, 90000866, 90000899, 90000900; CM9805, CM9806.
LESTER #’S: 6449, 6452, 6470, 6471, 6472, 6480, 6482, 6486, 6487, 6492, 6560, 6561, 6562, 6563, 6789.

Manufacturer: DELCO REMY

IAT Product Number: 04905

Original Numbers: Delco: 10475588; ORME: IM3064;  WAI: 61-140-1.

Additional Information: Voltage: 12V, Teeth: 12, Bars: 21, Body Diameter: 53.0 mm, Shaft Length: 120.6 mm, Lam Stack Length: 38.5 mm, Gear Diameter: 14.5 mm, Comm Diameter: 33.0 mm, DE Shaft Diameter: 8.0 mm, CE Shaft Diameter: 9.8 mm.
