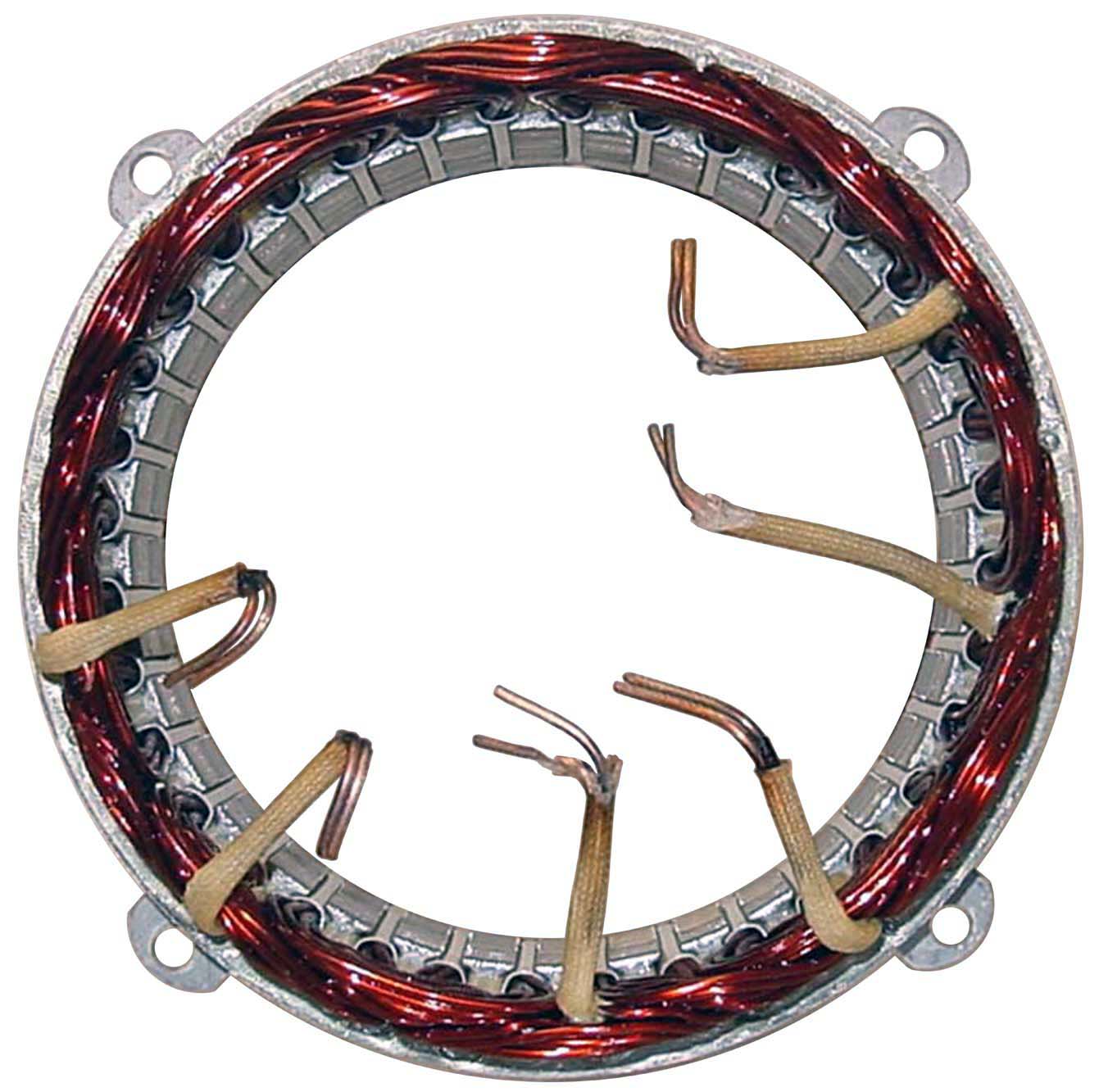

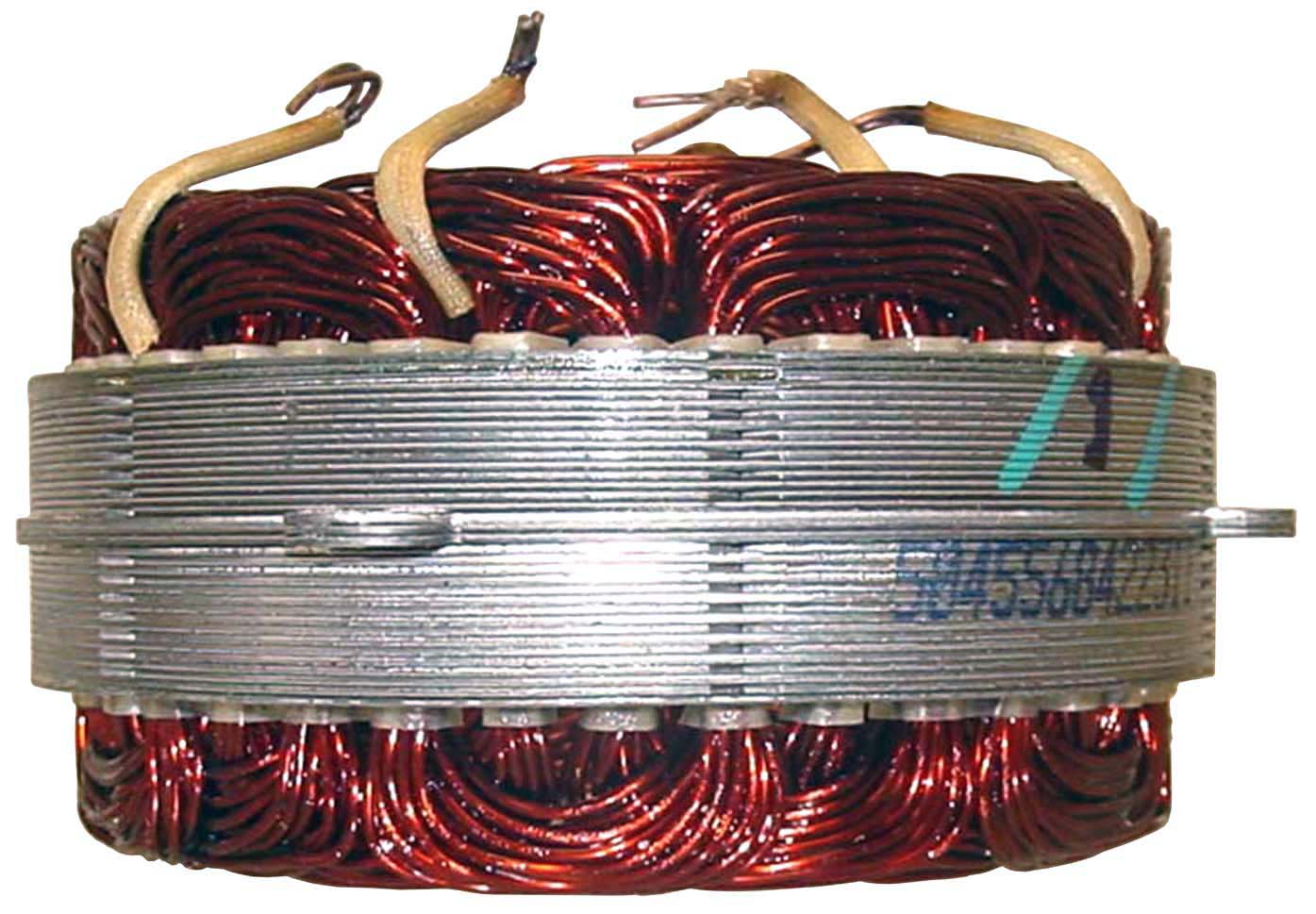

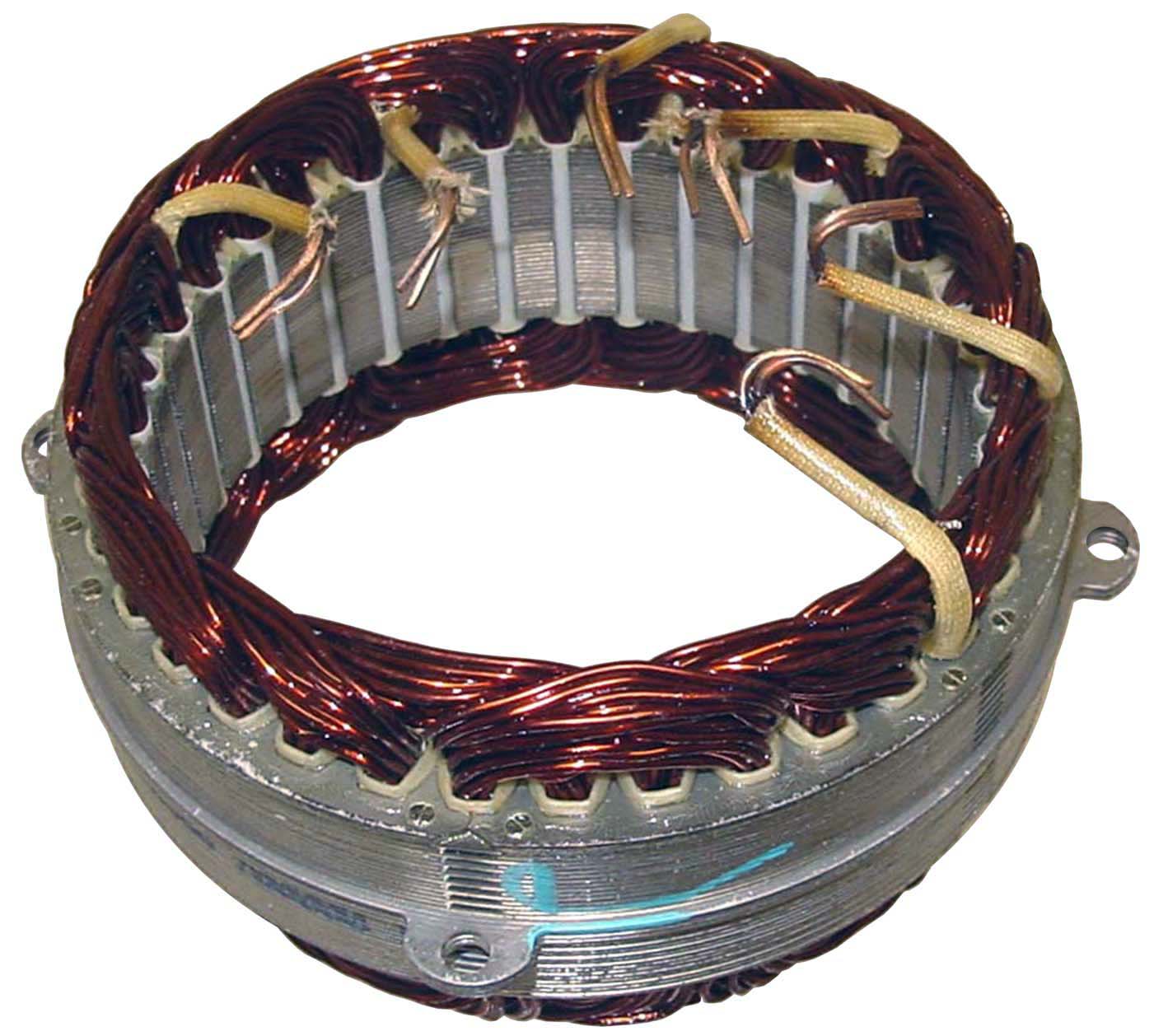

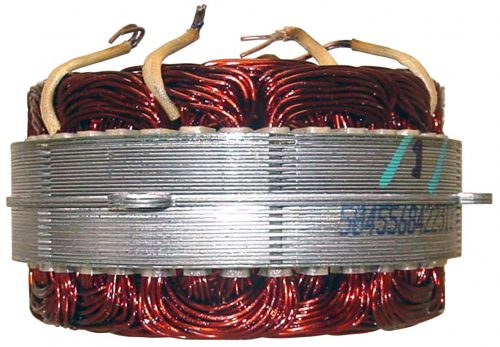

07145 - BOSCH STATOR FOR 132-136 AMP. E/R ALTERNATORS

Product Information:

APPLICATIONS: Case, John Deere Tractors, Mercedes, New Holland, Range Rover. Bosch 150 Amp. IR/IF Alternators.

ALTERNATOR #’S: 0-123-515-500, 0-123-515-501, 0-123-515-502, 0-123-515-503; 0-123-520-006, 0-123-520-007, 0-123-520-008, 0-123-520-010 to 0-123-520-013, 0-123-520-015, 0-123-520-017, 0-123-520-022, 0-123-520-029, 0-123-520-030; 0-124-515-503; 9-123-520-017; AL162X, AL766X, AL0768X, AL795X.

LESTER #’S: 12381, 12492, 13710, 13779, 13792, 13813, 13855.

Manufacturer: BOSCH

IAT Product Number: 07145

Original Numbers: Bosch: 1-125-045-568.

Additional Information: Amperage: 150 Amp., Dimensions: ID – 112.0 mm, OD – 142.0 mm, Exposed stack thickness: 3.0 mm, Stack Thickness: 36.0 mm, Slots: 48, Voltage: 12V.

Related Items: A12492, A13813
