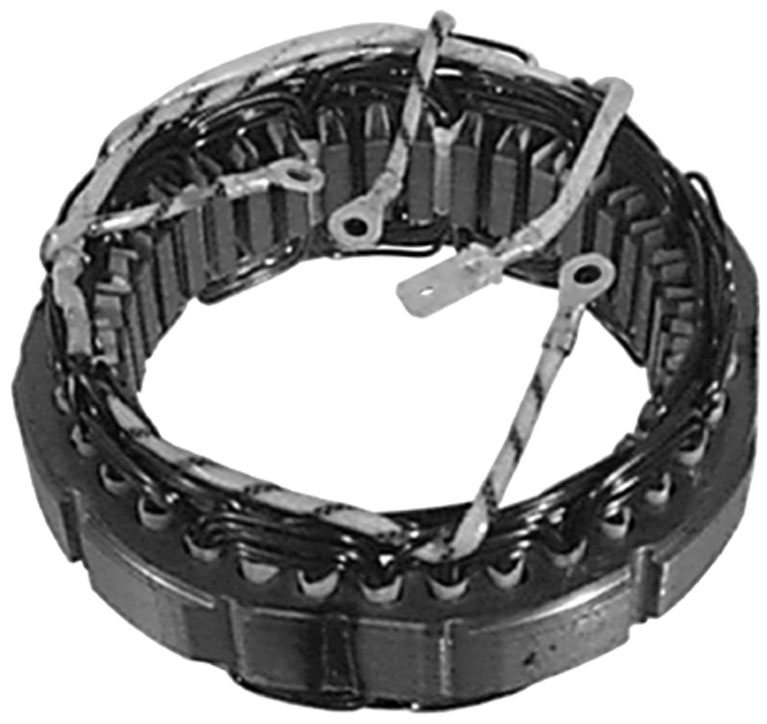

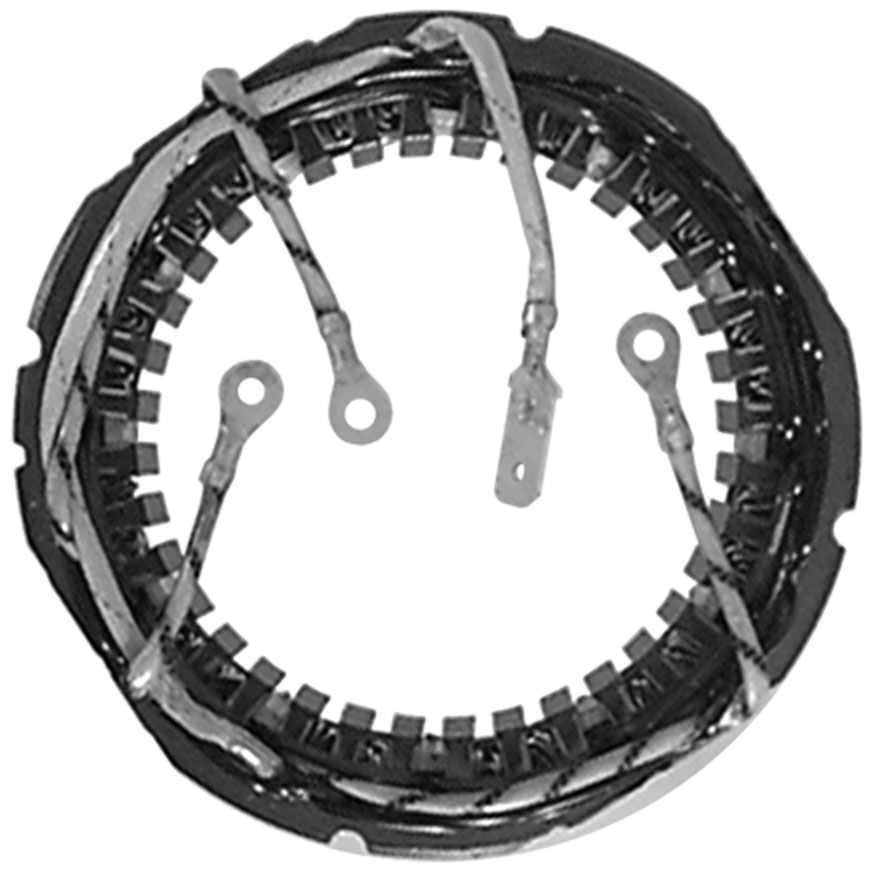

07203 - MARELLI STATOR FOR 42 AMP. ER/EF ALTERNATORS

Product Information:

APPLICATIONS: Aifo Marine, Bedford, Chrysler, Fiat Trucks, Fiat-Allis Crawlers, IHC, Iveco Trucks, John Deere, Lada, Murat, Massey Ferguson, Renault, Steyr, White Industrial Tractors. Marelli 42-45 Amp. A12M Series ER/EF Alternators.

ALTERNATOR #’S: 63302900, 63303000, 63303001, 63303030, 63303100, 63303101, 63303191, 63303300, 63303800, 63304800, 63304830.

LESTER #’S: 11103, 13075, 13092, 13132, 14065, 22060, 22065.

NOTES: 4 Single Wire Connection.

Manufacturer: MARELLI

IAT Product Number: 07203

Original Numbers: Fiat: 4149593, 4178333, Marelli: 74995281; Cargo: 130363; OREM: 150003.

Additional Information: Voltage: 12V, Amperage: 42 Amp., Dimensions: ID – 87.29 mm, OD – 125.28 mm, Stack Thickness: 19.85 mm, Exposed Stack Thickness: 14.87 mm, Slots: 36.
