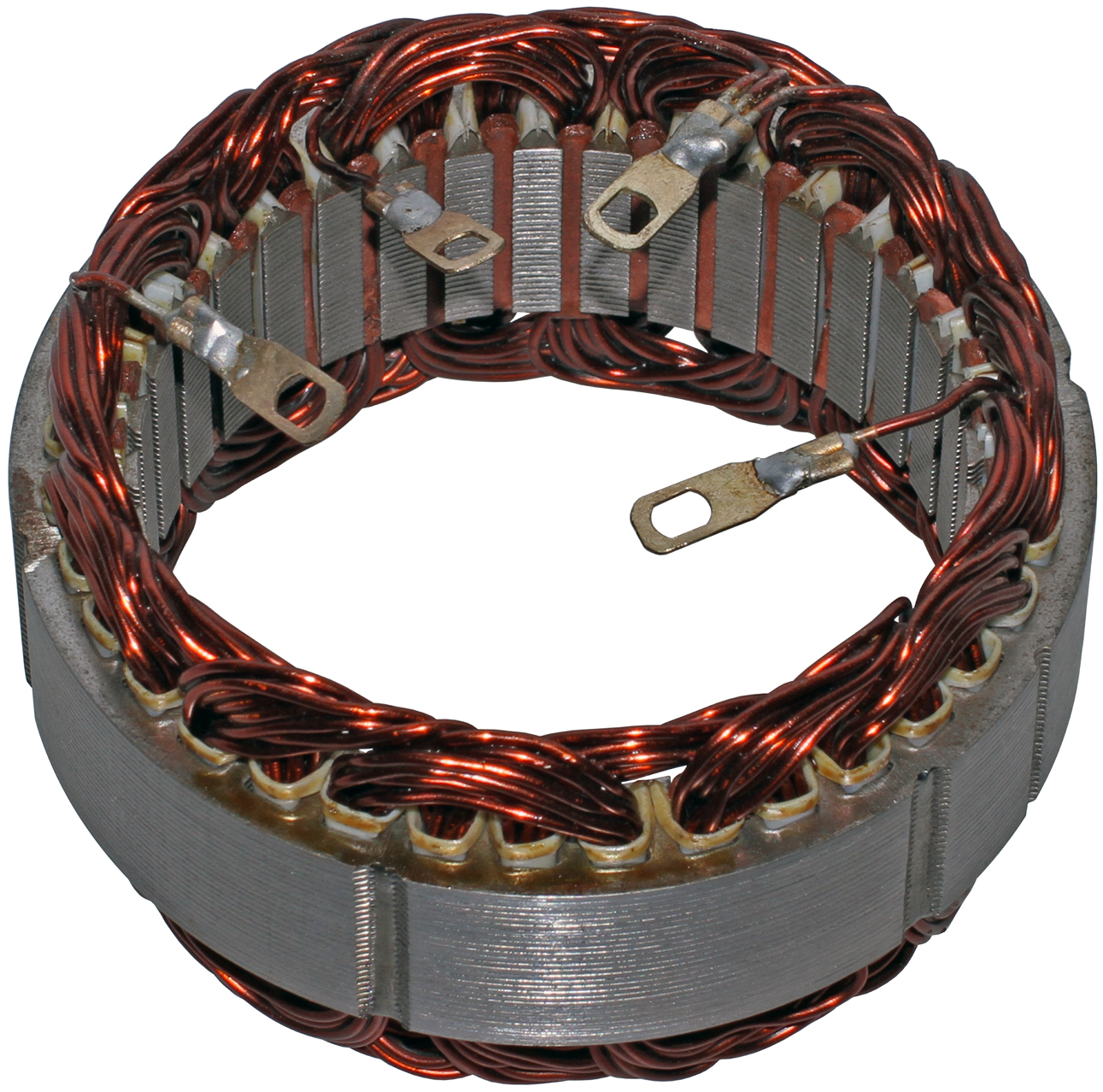

07502 - DENSO STATOR FOR 55-60 AMP. INTERNAL FAN ALTERNATORS

Product Information:

APPLICATIONS: Acura, Chevrolet, Daihatsu, Geo, Honda, Isuzu, Toyota. Denso 55-60 Amp. Internal Fan Alternators.
ALTERNATOR #’S: 100211-1200, 100211-1201, 100211-1210, 100211-1211, 100211-1212, 100211-1220, 100211-1221, 100211-1222, 100211-1223, 100211-1224, 100211-1230, 100211-1231, 100211-1250, 100211-1251, 100211-1260, 100211-1261, 100211-1270, 100211-1271, 100211-1300, 100211-1310, 100211-1311, 100211-1320, 100211-1321, 100211-1330, 100211-1331, 100211-1340, 100211-1341, 100211-1350, 100211-1351, 100211-1360, 100211-1361, 100211-1370, 100211-1371, 100211-1380, 100211-1381, 100211-2040, 100211-2210, 100211-2211, 100211-2220, 100211-2221, 100211-2230, 100211-2231, 100211-2250, 100211-2280, 100211-2290, 100211-2300, 100211-2330, 100211-2340, 100211-2360, 100211-2370, 100211-2380, 100211-2390, 100211-2391, 100211-2730, 100211-3500, 100211-3501, 100211-3510, 100211-3520, 100211-3530, 100211-3531, 100211-3540, 100211-3560, 100211-3580, 100211-3590, 100211-3610, 100211-3630, 100211-3650, 100211-3660, 100211-3680, 100211-3690, 100211-3700, 100211-3720, 100211-3740, 100211-3770, 100211-3820, 100211-3830, 100211-3850, 100211-3870, 100211-3890, 100211-3910, 100211-3940, 100211-3960, 100211-3961, 100211-3970, 100211-3980, 100211-5010; 100213-0421, 100213-0450, 100213-0451, 100213-0700, 100213-0710, 100213-0740, 100213-0745.
LESTER #’S: 13240, 13383, 13508, 14449, 14457, 14472, 14671, 14674, 14679, 14732, 14739, 14755, 14757, 14758, 14759, 14924, 14926, 14935, 14989, 20956, 21267, 22259, 22455

Manufacturer: DENSO

IAT Product Number: 07502

Original Numbers: Denso: 021100-2340, 021100-2480, 021100-2490, 021100-2680, 021100-3580, 021100-3790; WAI: 27-8203.

Additional Information: Voltage: 12V, Amperage: 55-60 Amp., Dimensions: ID – 82.98 mm, OD – 109.98 mm, Stack Thickness: 24.38 mm, Slots: 36.
