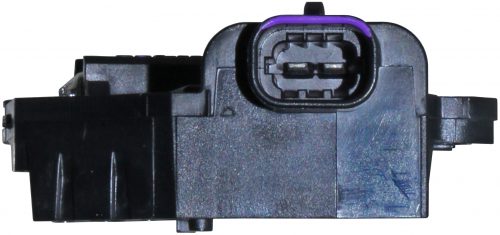

09743 OE - VALEO VOLTAGE REGULATOR FOR GM

Product Information:

APPLICATIONS: Buick LaCrosse 3.0L 2010, 3.6L 2010-2015; Cadillac SRX 3.0L 2010-2011, 3.6L 2012; Chevrolet Camaro 3.6L 2013-2014, 6.2L 2010-2015, Impala 3.6L 2012-2015, Impala Limited 3.6L 2014-2015, Captiva Sport 3.0L 2012, Equinox 3.0L 2010-2011; GMC Terrain 3.0L 2010-2011. Valeo 150 Amp. IR/IF Alternators.

ALTERNATOR #’S: FG15S018, FG15S019, FG15S020, FG15S026, FG15S027, FG15S032, FG15S033, FG15S061, FG15S062, FG15S068, FG15S081, FG15S082, FG15S083, FG15S084, FG15S097, FG15S098, FG15S100.

LESTER #’S: 11453, 11485, 11486, 11487, 11932.

Manufacturer: Valeo

IAT Product Number: 09743 OE

Original Numbers: Valeo: 2606125, 2605460, 2619784; Wagner: W082-98N; TRANSPO: M608.

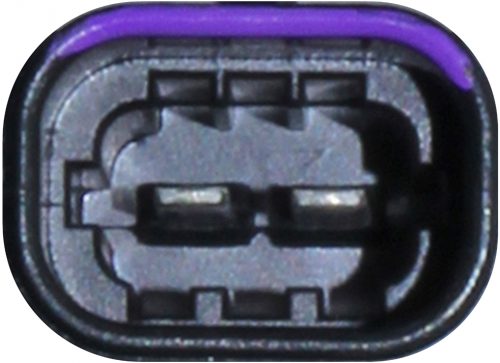

Additional Information: Voltage Set Point: 14.5V, Terminals: F-L (Mini RVC Plug), Mounting Holes Distance: 61.5 mm, 14 mm Slip Ring.

Related Items: A11485, 11486, A11487
