Product Information:
PARTS: Ball Bearings – B6001 / B6302, Cover – 27385, Rectifier – 08383, Regulator – 09388, Stator – 07569, Pulley – 39346.
APPLICATIONS: Hyundai Sonata 2.4L 2003-2005, Santa Fe 2.4L 2003-2006; Kia Magnetis / Optima 2.4L 2003-2005.

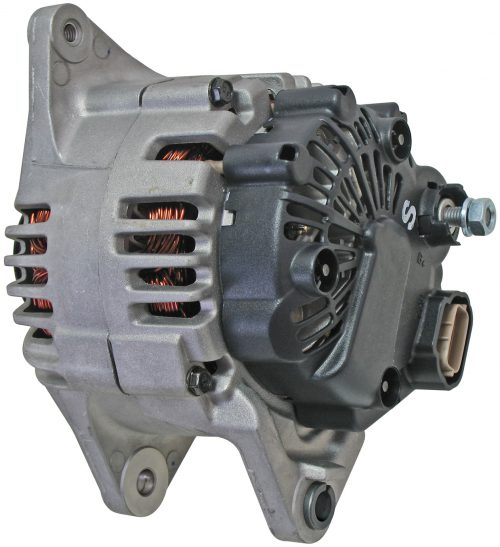

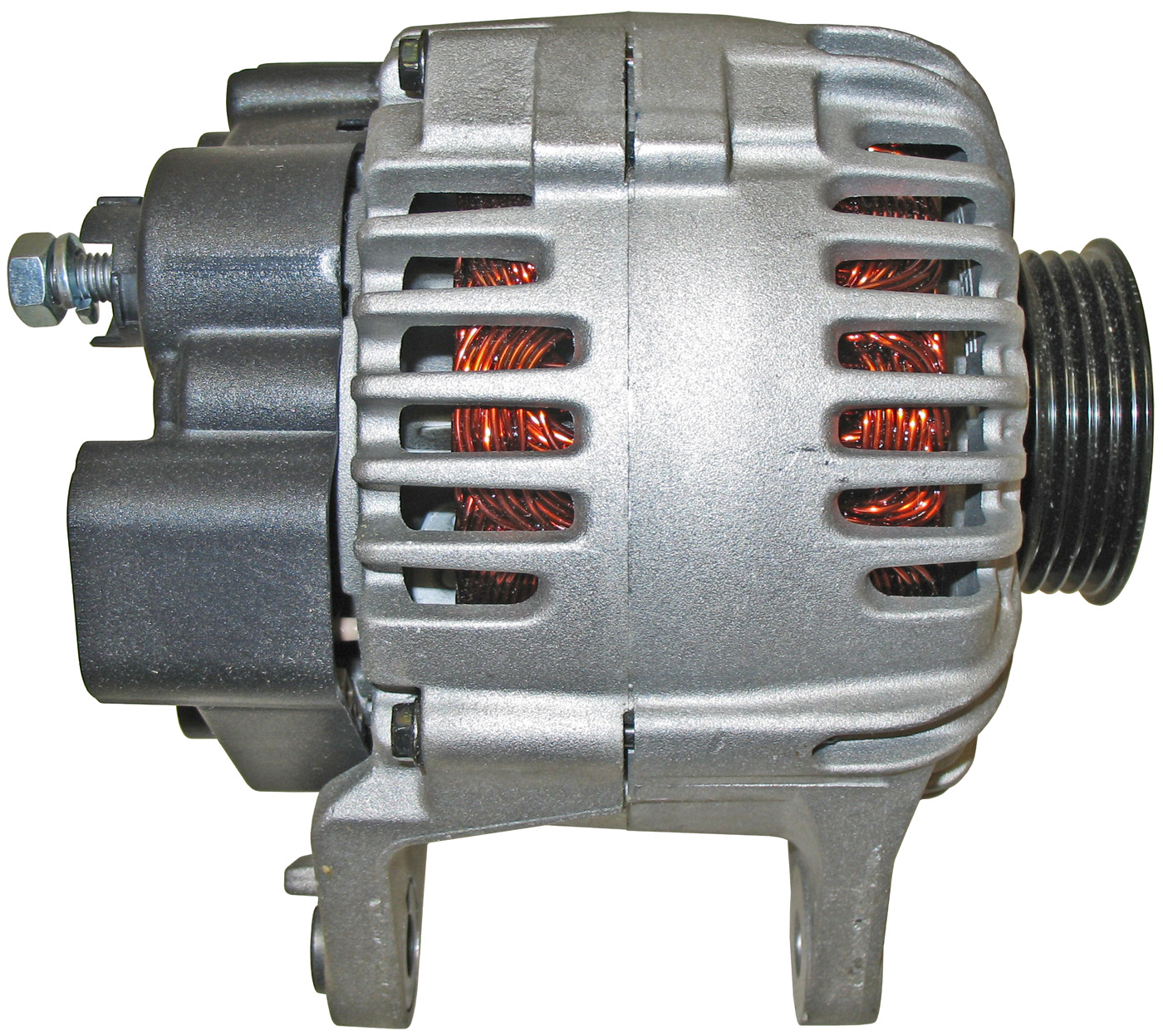

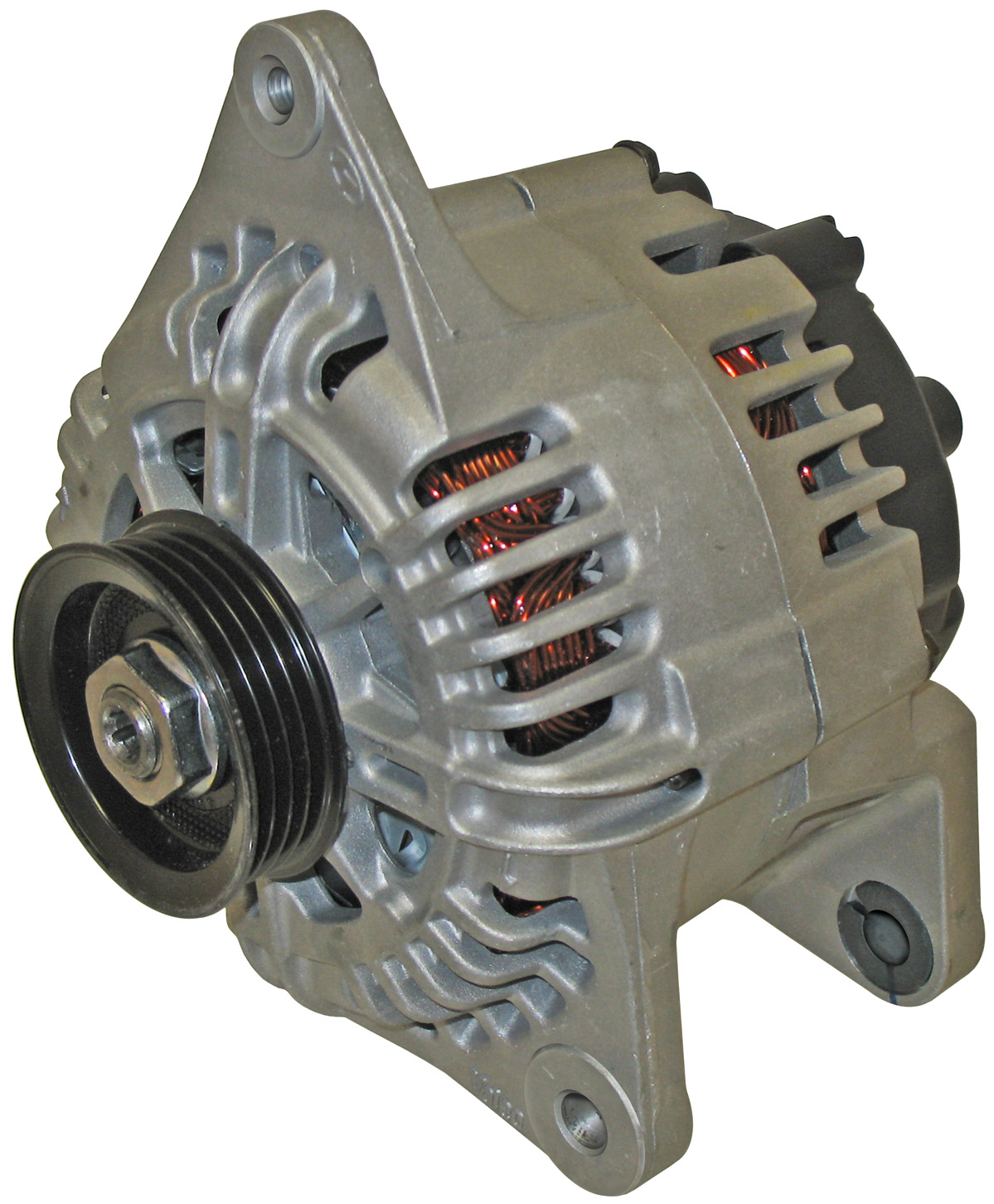

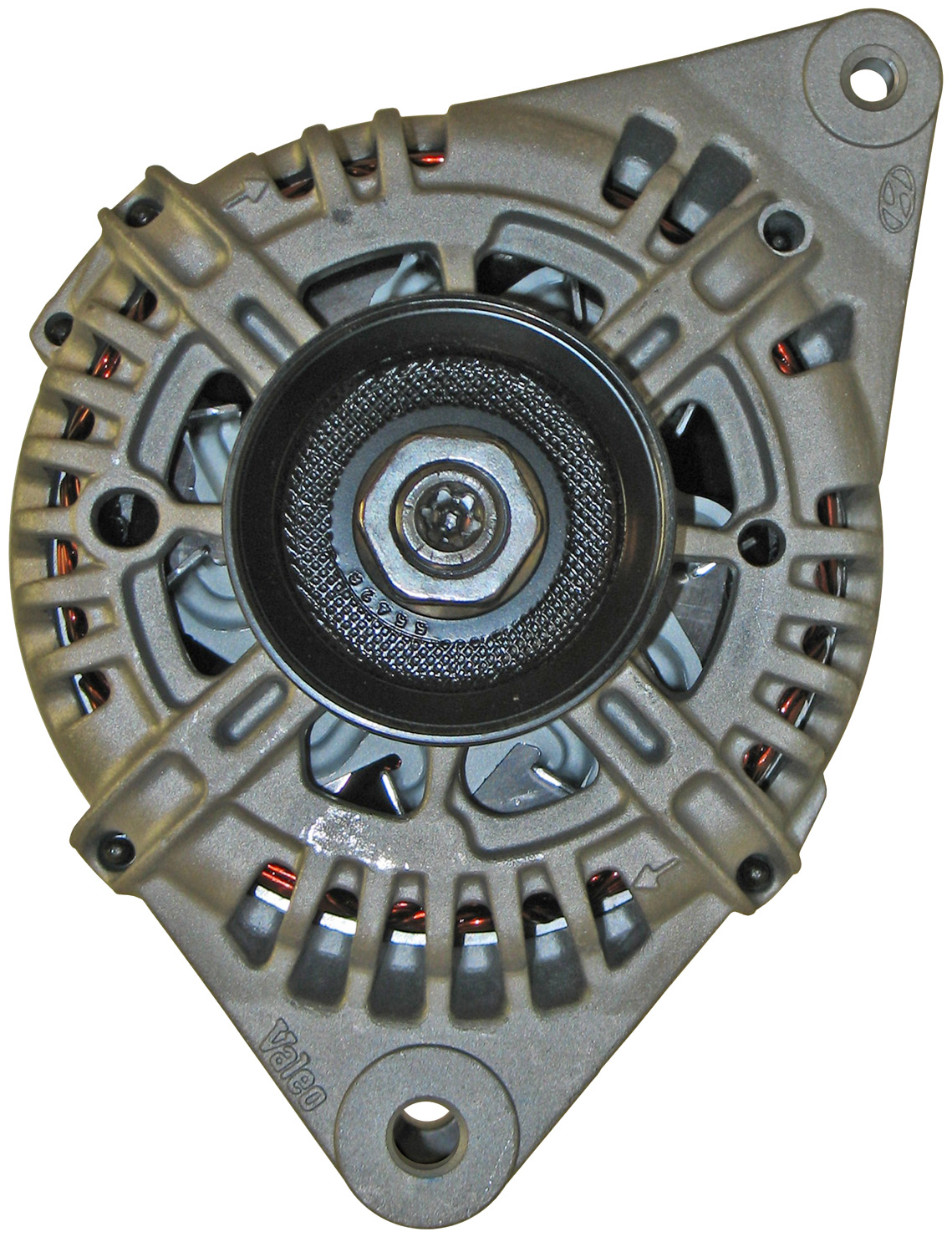

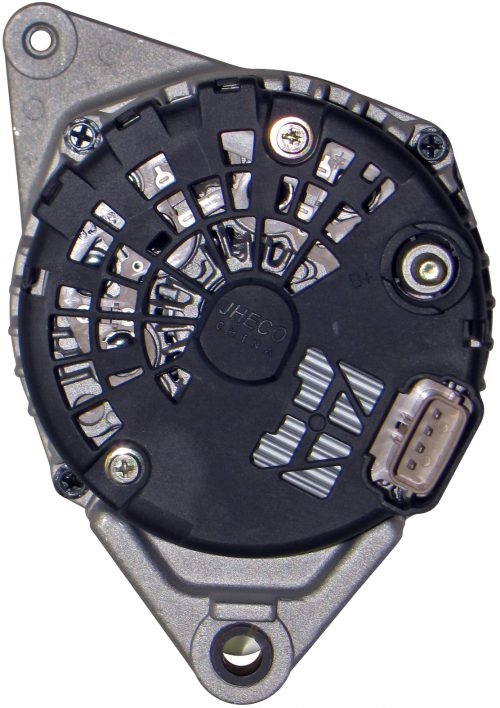

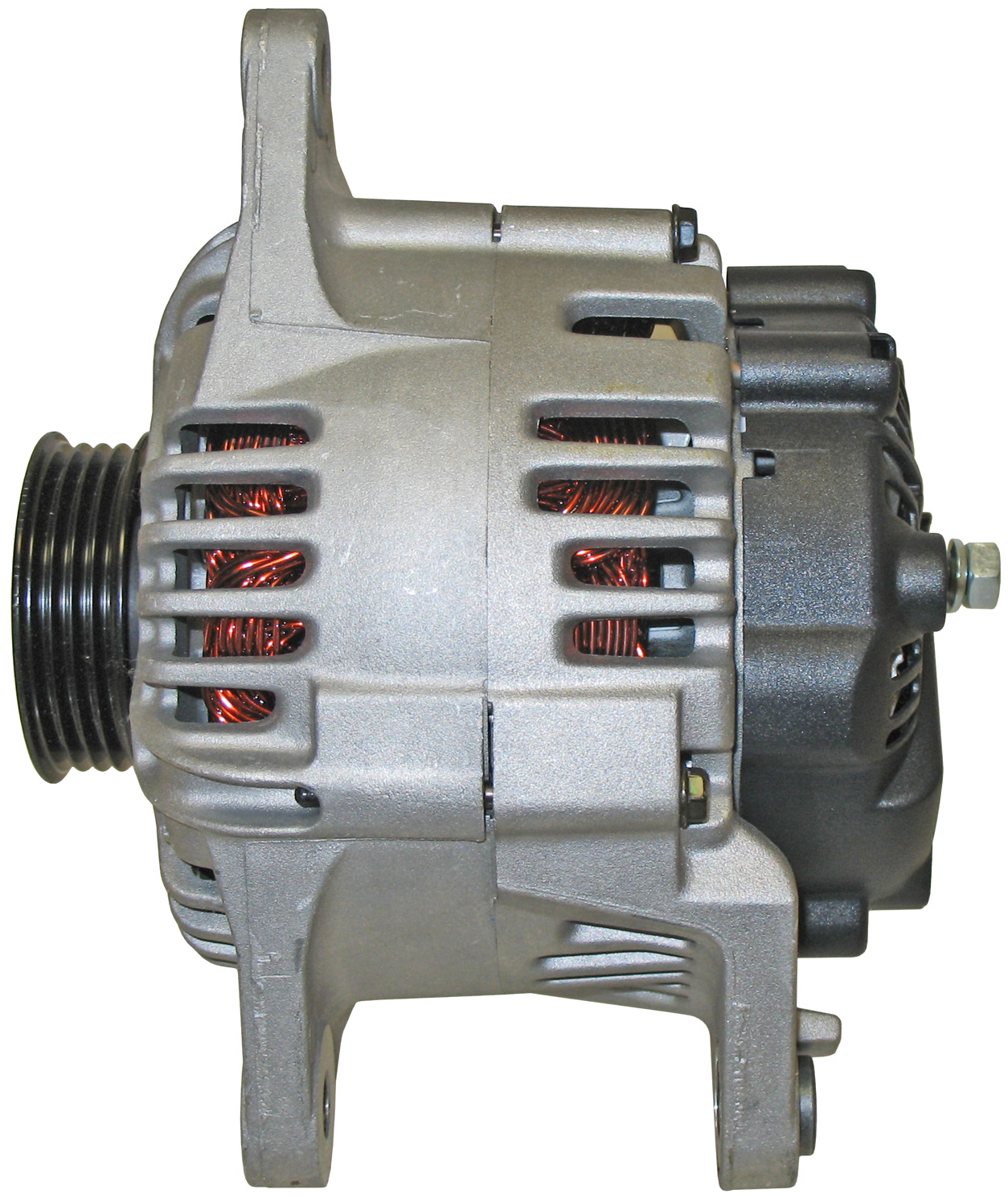

NOTES: This is a 110 Amp. Mando Alternator for the 2003-2005 Hyundai Sonata and KIA Optima With the 2.4L Engine. This Unit Has a 4-Groove Pulley, and Has a 4 Prong Plug (The Label Only Shows “FR-L” – the Other 2 Pins are Not Identified). This Unit Uses the Later Valeo Design (No Stator Visible); the Regulator and Rectifier are on the Outside of the Rear Frame.
Manufacturer: VALEO
IAT Product Number: A11014
Original Numbers: Valeo: A0002655009, TG11C028, 439345; Bosch Reman.: AL4068X; Hyundai: 37300-38400, 37300-38400RU; Pic Book: 208-567; Lester: 11014.
Additional Information: Voltage: 12V, Amperage: 110 Amp., Design: IR/IF, Pulley: 4-Groove Solid, Plug: FR-L.
Related Items: B6001, B6302, 27385, 08383, 09388, 07569, 39346
