Product Information: PARTS: Ball Bearing? B6002 / B6202, Brush Holder ? 13502, Brush Set – 11504, DE Bracket – 14833, Cover ? 29554, Stud – 14583.
APPLICATIONS: TOYOTA Lift Trucks: 5FD-10 2J Engine 1986-1989, 5FD-14 2J Engine 1986-1989, 5FD-15 2J Engine 1986-1989, 5FD-18 2J Engine 1986-1989, 5FD-20 1Z Engine 1986-1988, 5FD-20 2J Engine 1986-1989, 5FD-23 1Z Engine 1986-1988, 5FD-23 2J Engine 1986-1989, 5FD-25 1Z Engine 1986-1988, 5FD-25 2J Engine 1986-1989, 5FD-28 1Z Engine 1986-1988, 5FD-30 1Z Engine 1986-1988, 5FG-33 3F Engine 1988, 5FG-35 3F Engine 1988, 5FG-38 3F Engine 1988, 5FG-40 3F Engine 1988, 5FG-45 3F Engine 1988.

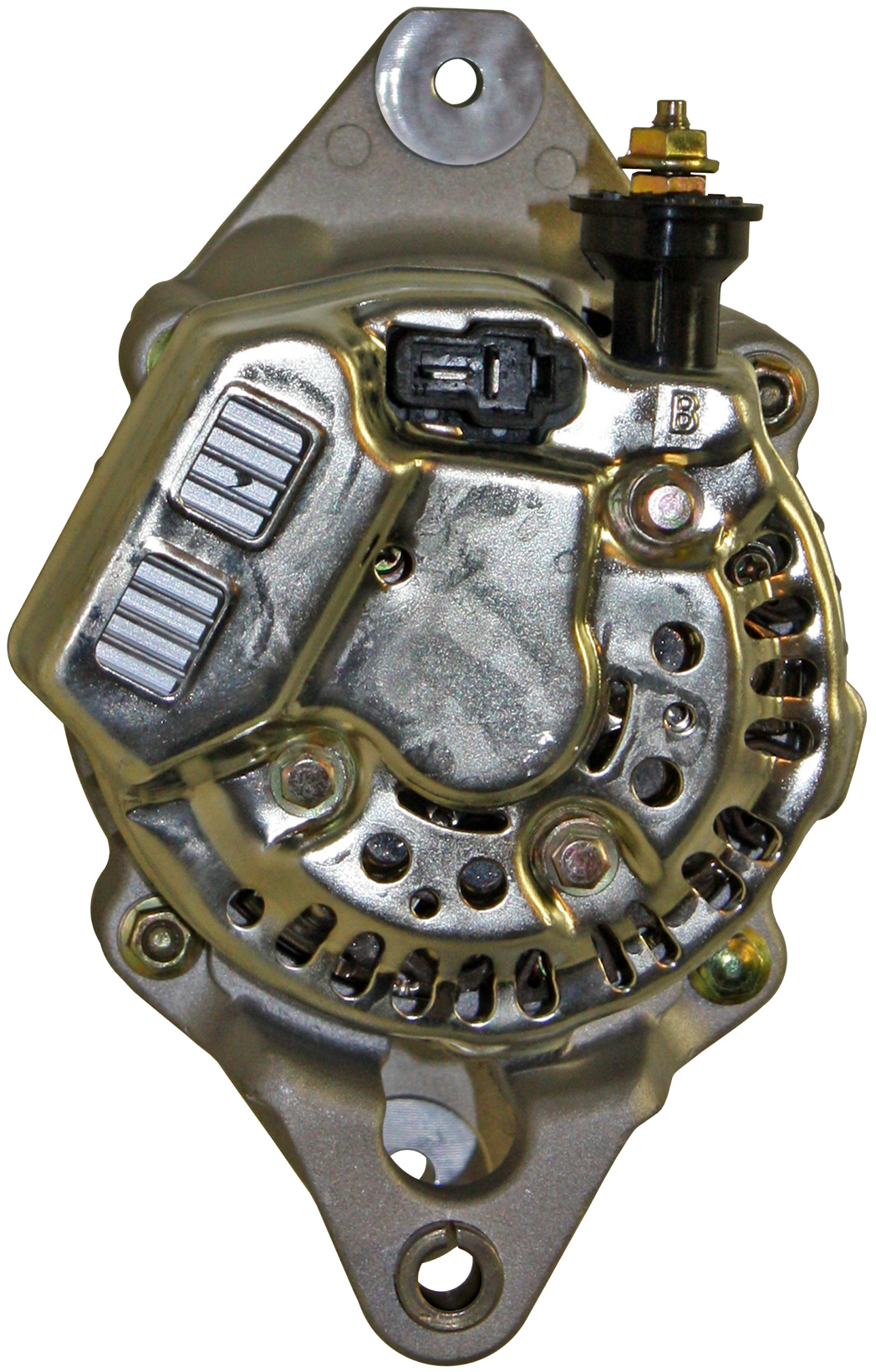

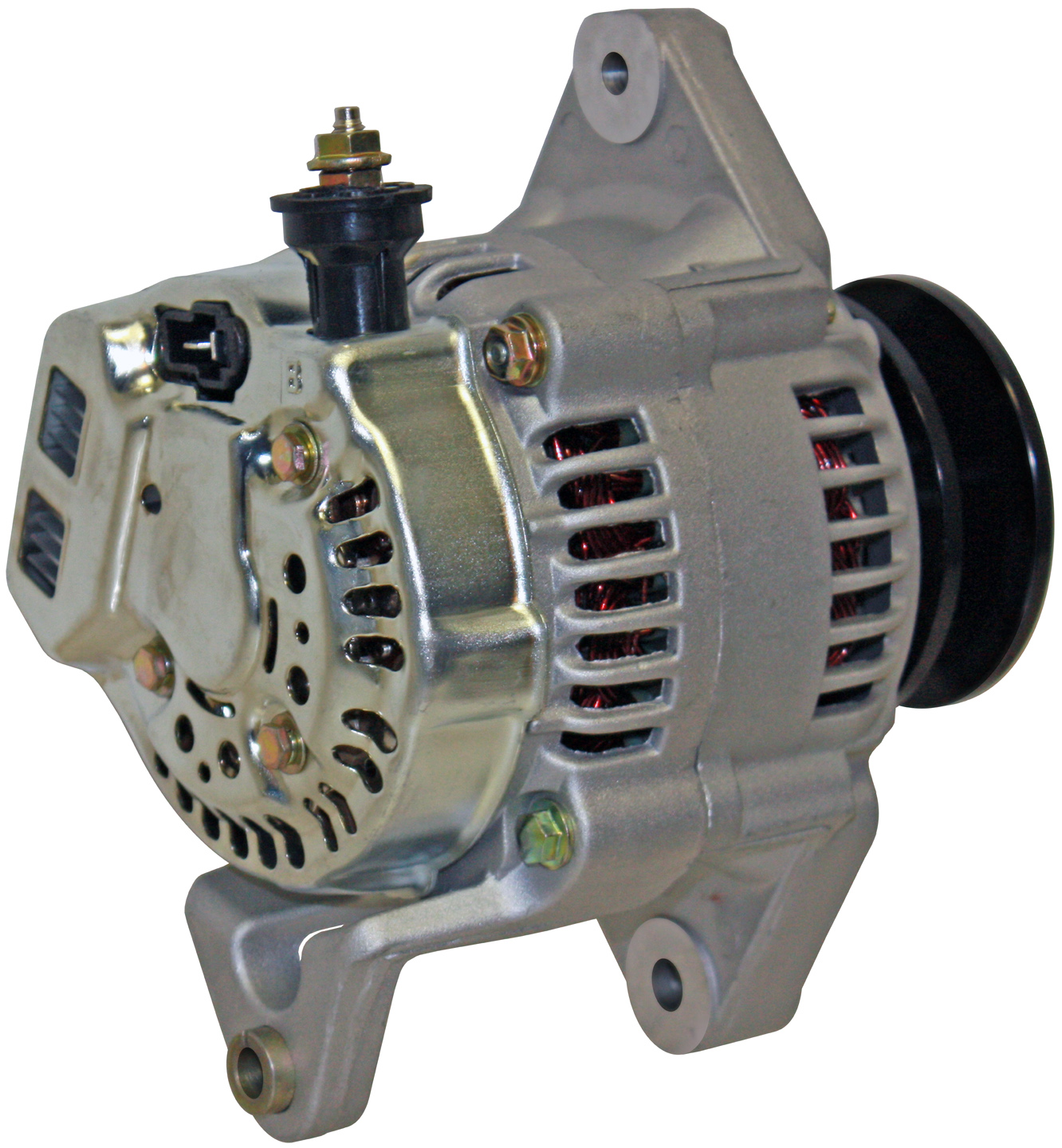

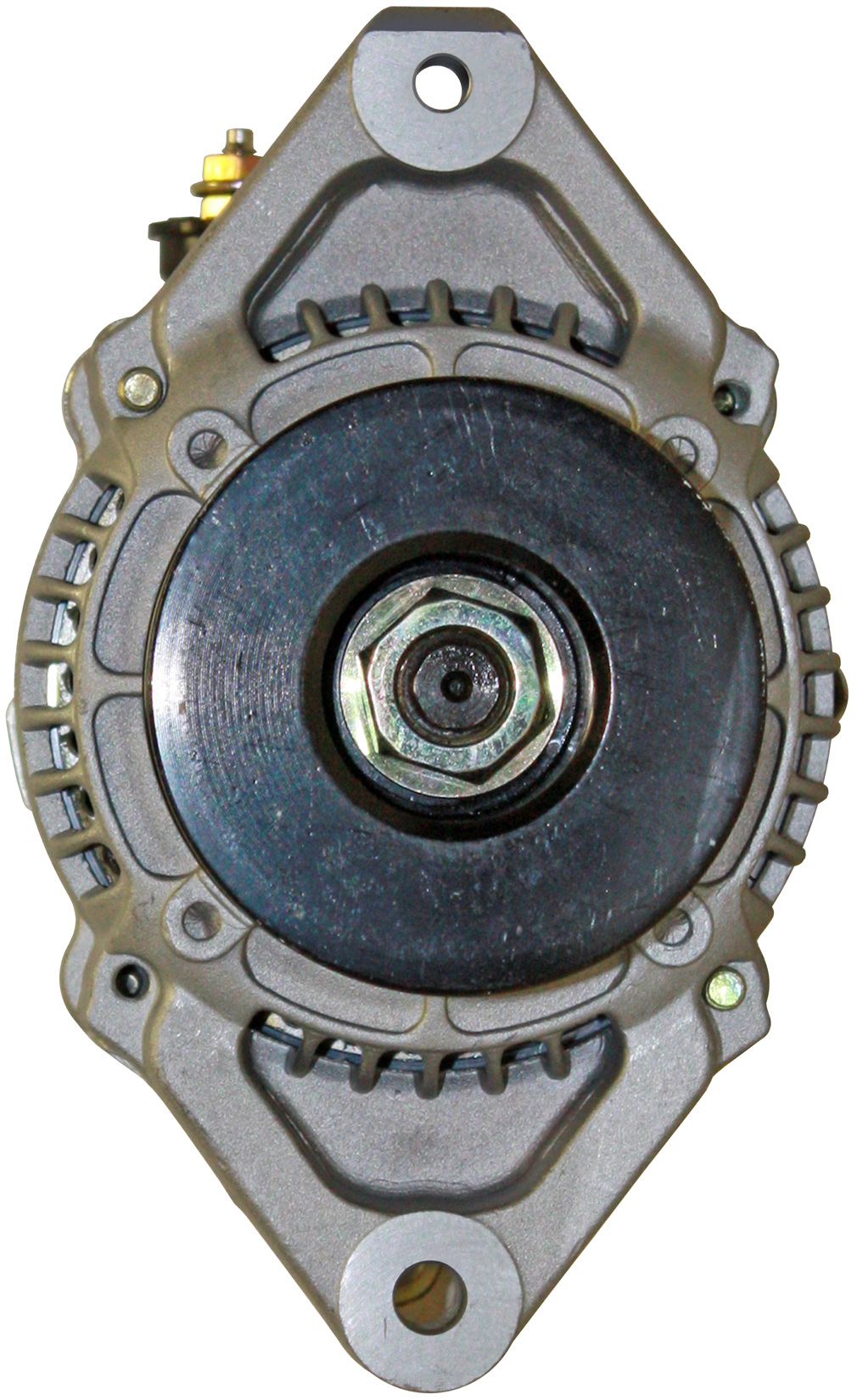

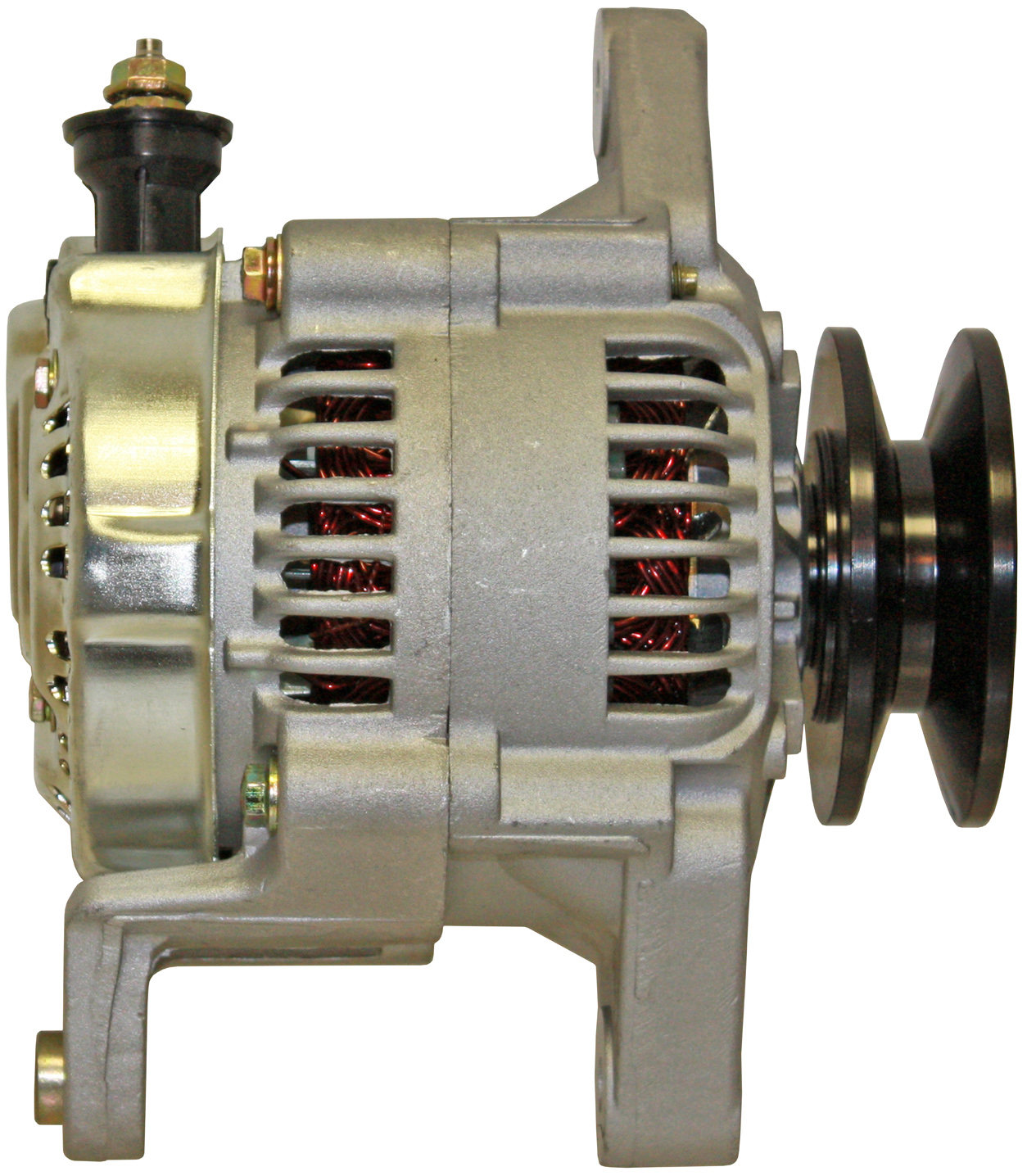

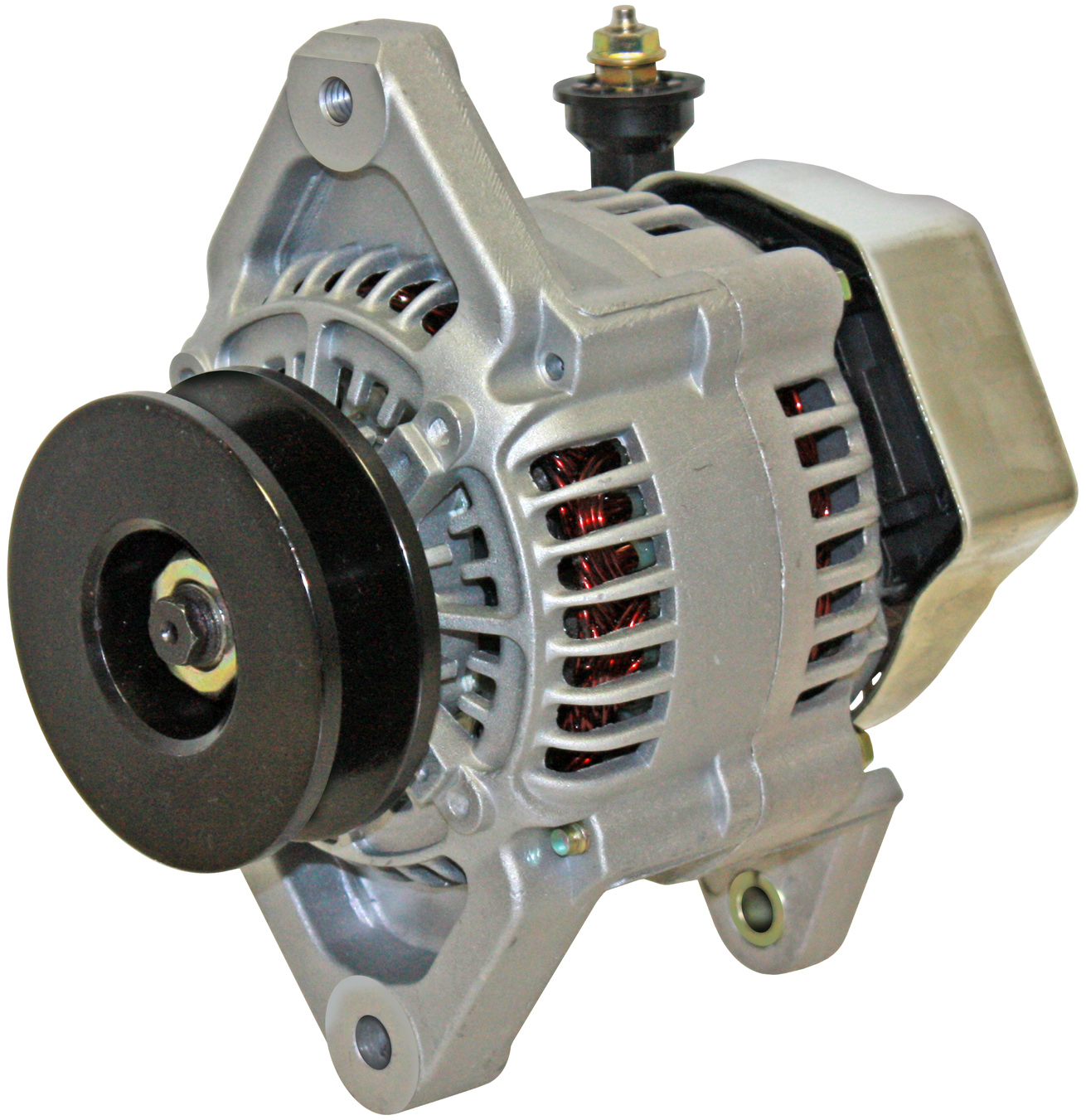

NOTES: Denso Alternator for Toyota Lift Trucks. The Top DE Mounting Ear is 6mm x 1.0 (Threaded), the Bottom Mounting Ears are 8.2mm (Unthreaded).
Manufacturer: DENSO
IAT Product Number: A12182
Original Numbers: Denso: 100211-4000, 100211-4001, 100211-4002, 100211-4003, 100211-4004; Toyota: 27060-78301, 27060-78301-71; Pic: 290-205; Lester: 12182.
Additional Information: Voltage: 12V, Amperage: 40 Amp., Regulator: Internal, Plug Type: T-Shaped, Terminals: IG-L, Pulley Type: 1-V Solid.
Related Items: B6002, B6202, 13502, 11504, 14833, 29554, 14583
