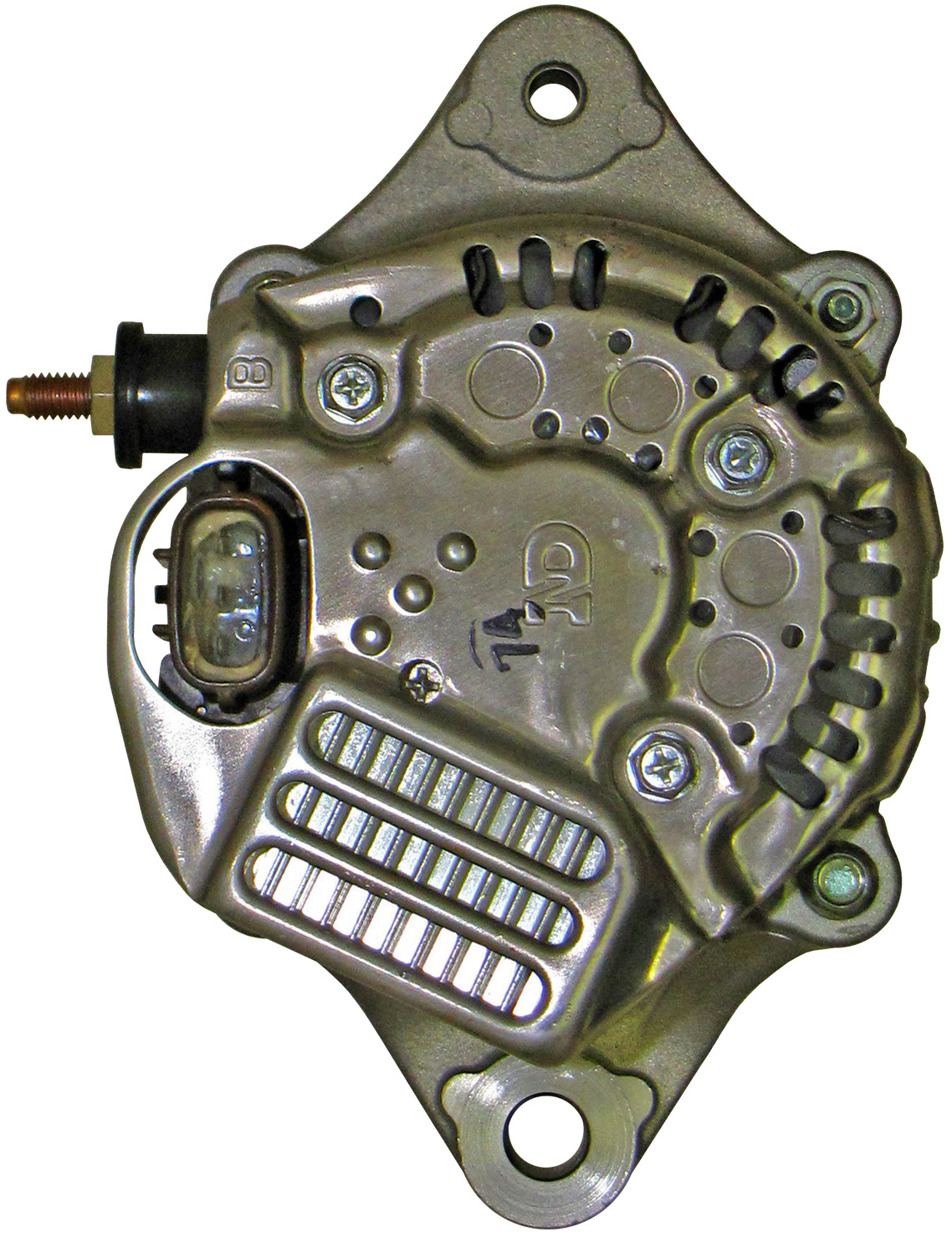

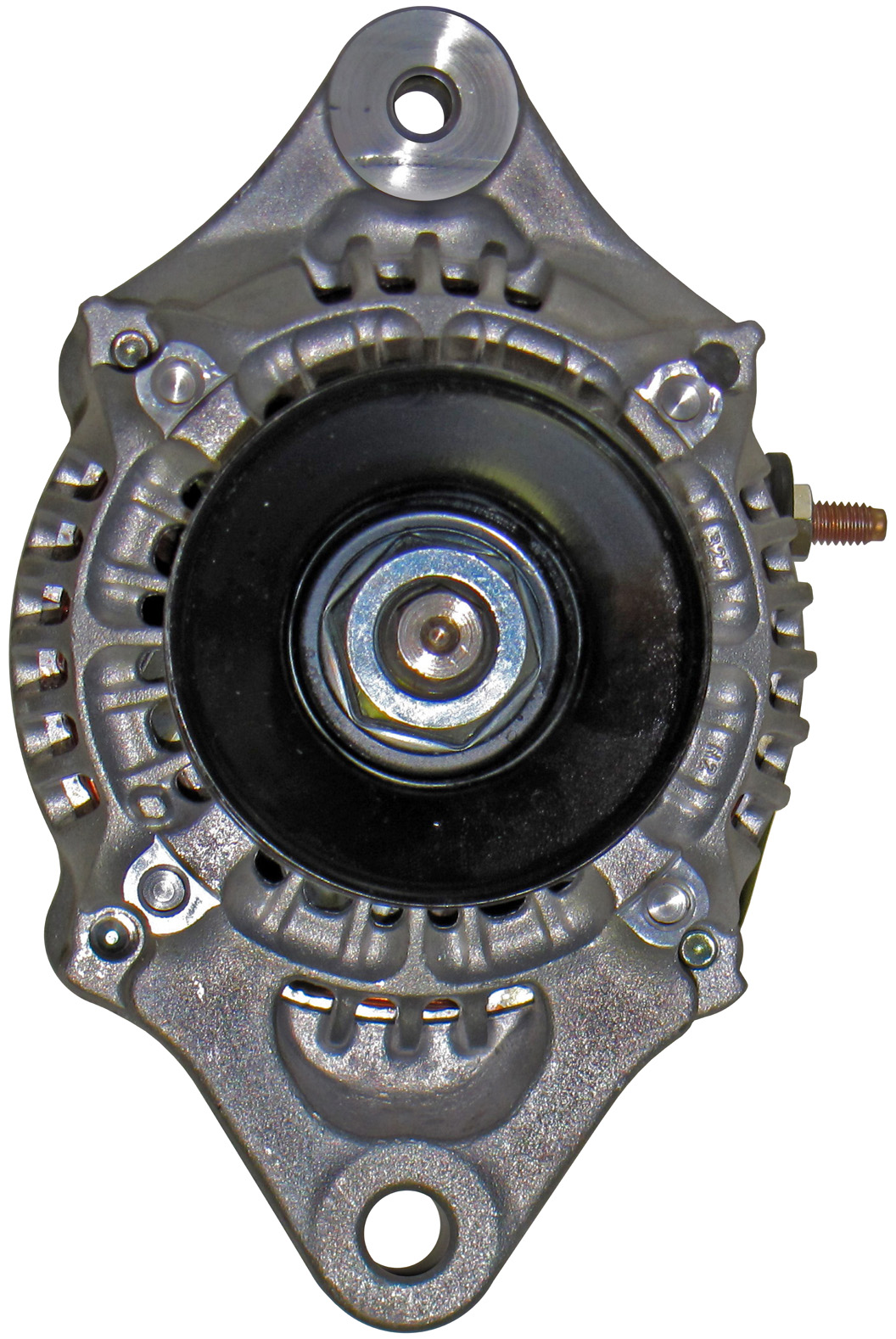

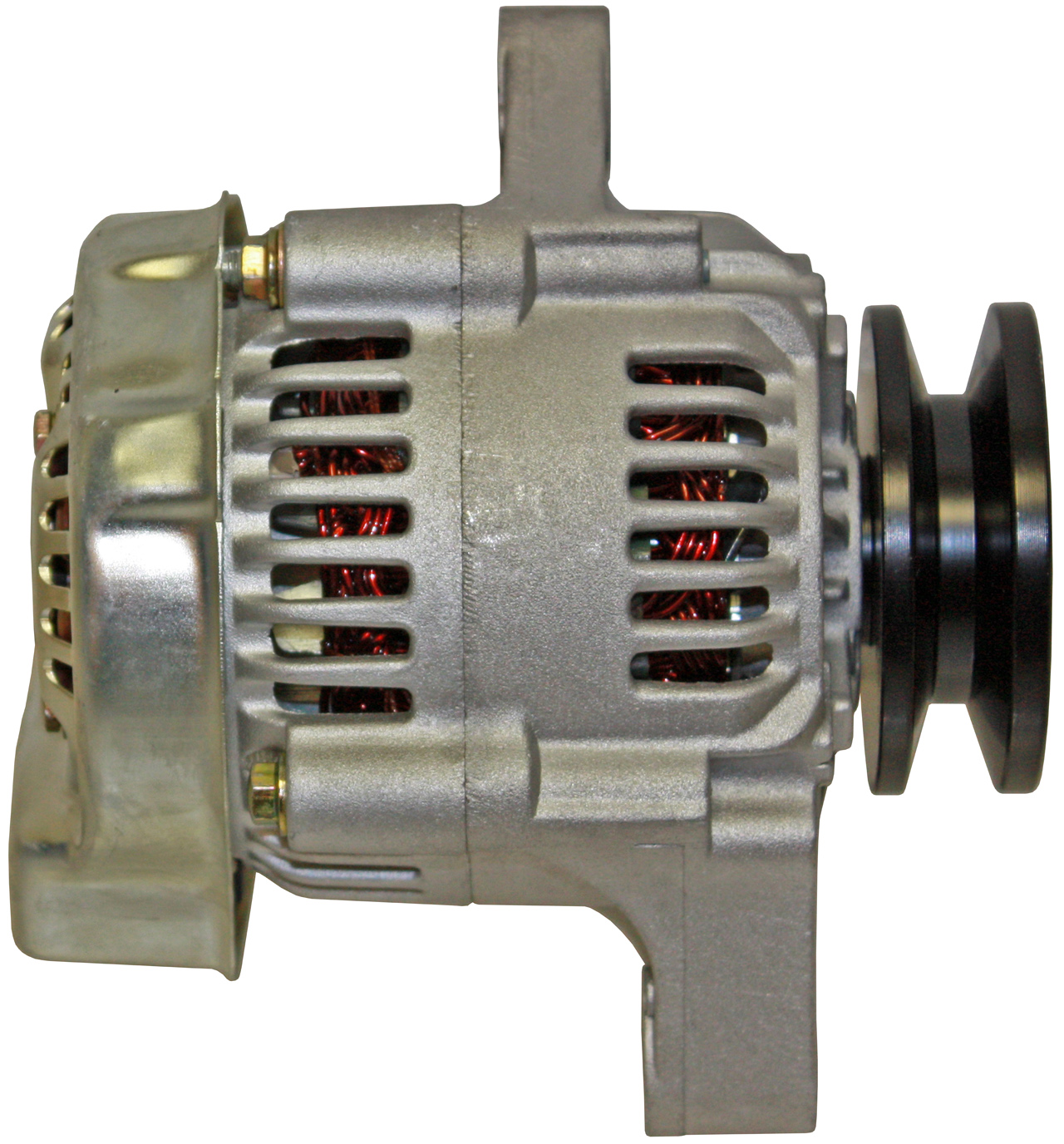

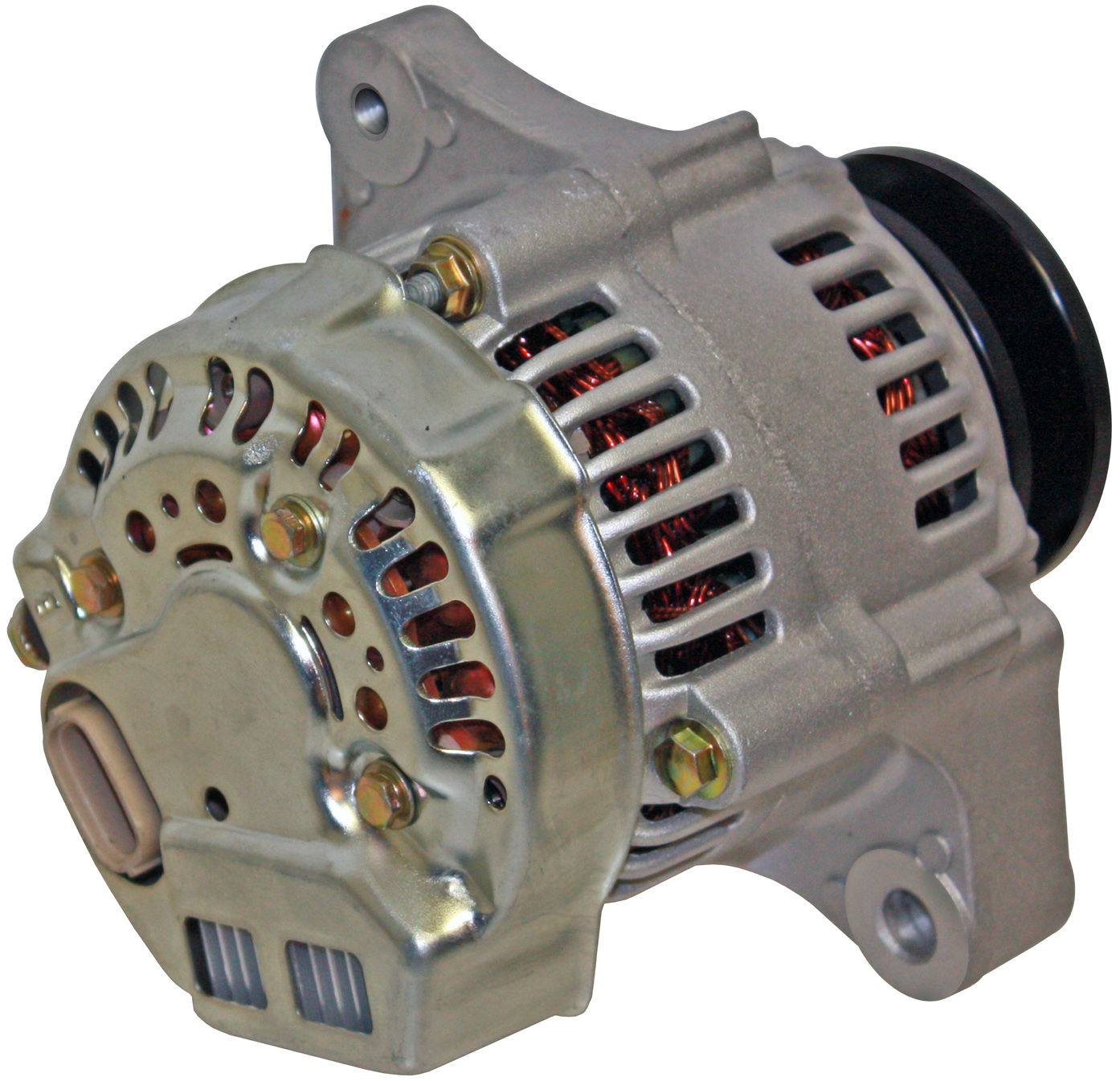

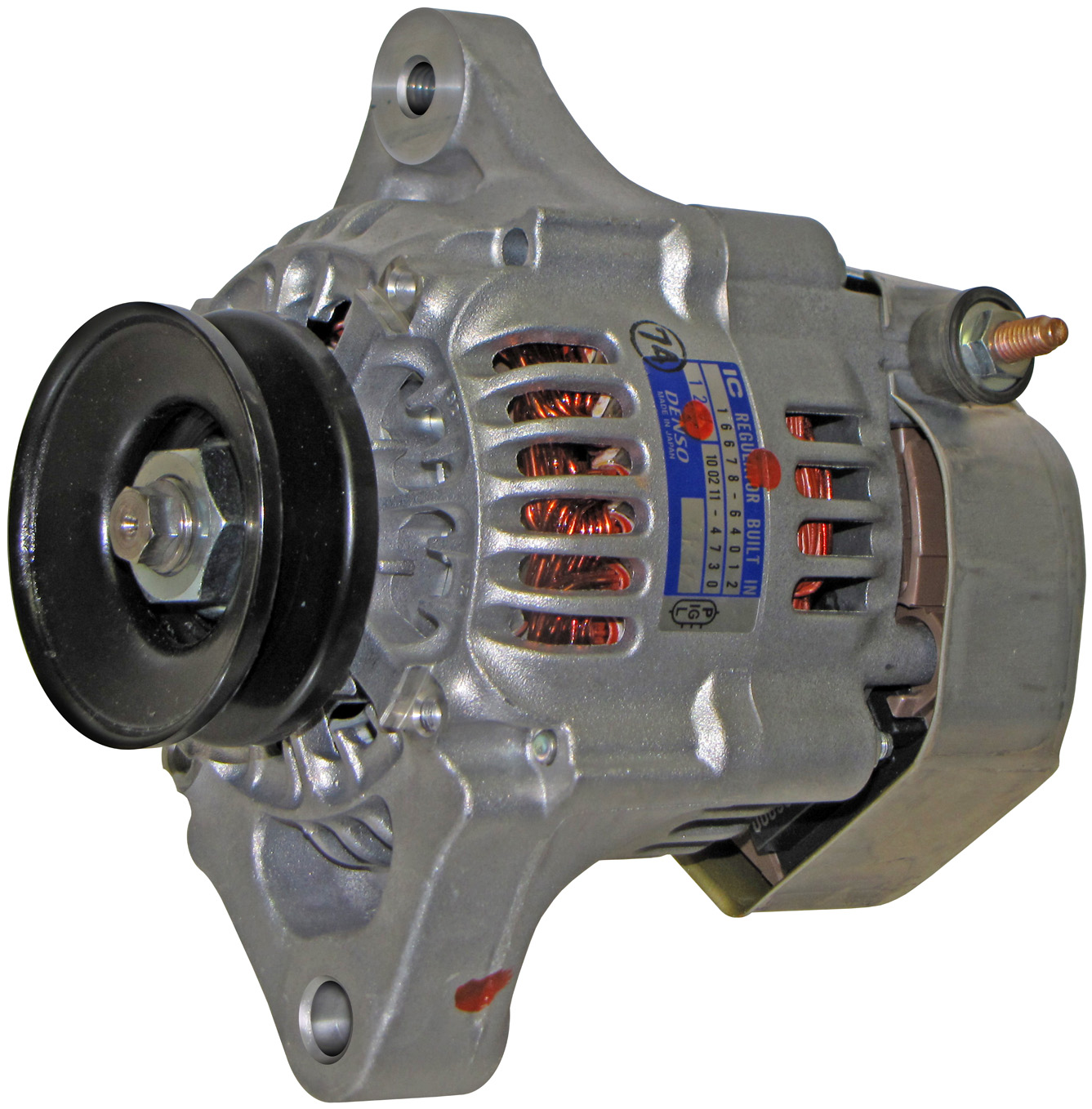

A12202 ? DENSO 40 AMP. IR / IF ALTERNATOR FOR KUBOTA

Product Information: PARTS:? Ball Bearing? B6302, Brush Set – 11504, Brush Holder ? 13502, Insulator ? 14538, Rotor – 17551, Slip Ring – 14520, Stator – 07507, Stud – 14583.

APPLICATIONS:? AUSA Lift Trucks: C150H V1505-E2B Kubota Diesel 2006, C150Hx4 V1505-E2B Kubota Diesel 2006; BOBCAT Wheel Tractor B200 Kubota D1105 Turbo 2002-2003; KUBOTA Misc. Equipment – Various V1505 Engine; STEINER Tractor 230 Kubota 28HP Diesel.

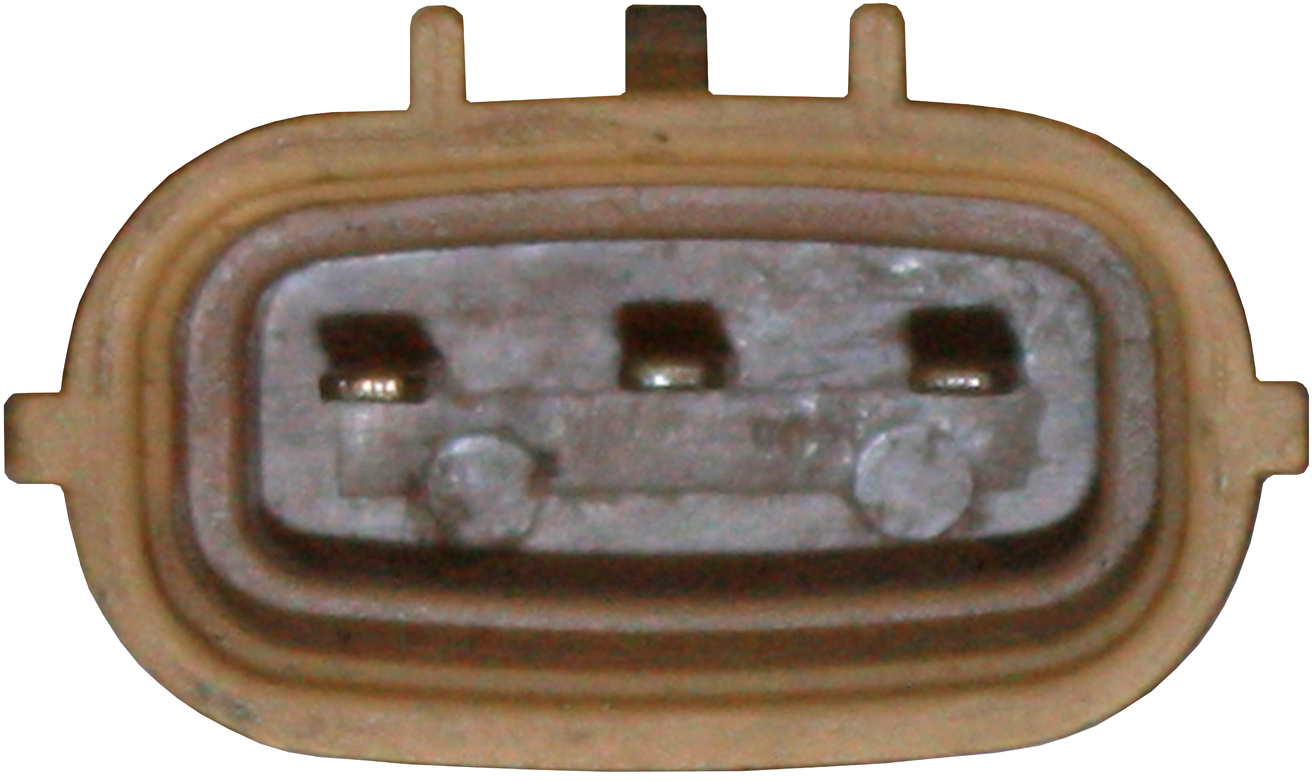

NOTES: Denso 40 Amp. Alternator for Kubota Diesel Engines. 1-Groove Pulley. ?P-IG-L? Oval-Shaped Plug.

Manufacturer: DENSO

IAT Product Number: A12202

Original Numbers: Denso: 100211-4730; Kubota: 16678-64010, 16678-64011, 16678-64012; Pic: 290-175; Lester: 12202.

Additional Information: Voltage: 12V, Amperage: 40 Amp., Regulator: Internal,? Terminals: P-IG-L, Pulley Type: 1-V Solid.

Related Items: B6302, 11504, 13502, 14538, 17551, 14520, 07507, 14583
